Lenovo ThinkSystem ST650 V2 - M.2 Boot Adapter Cable Routing

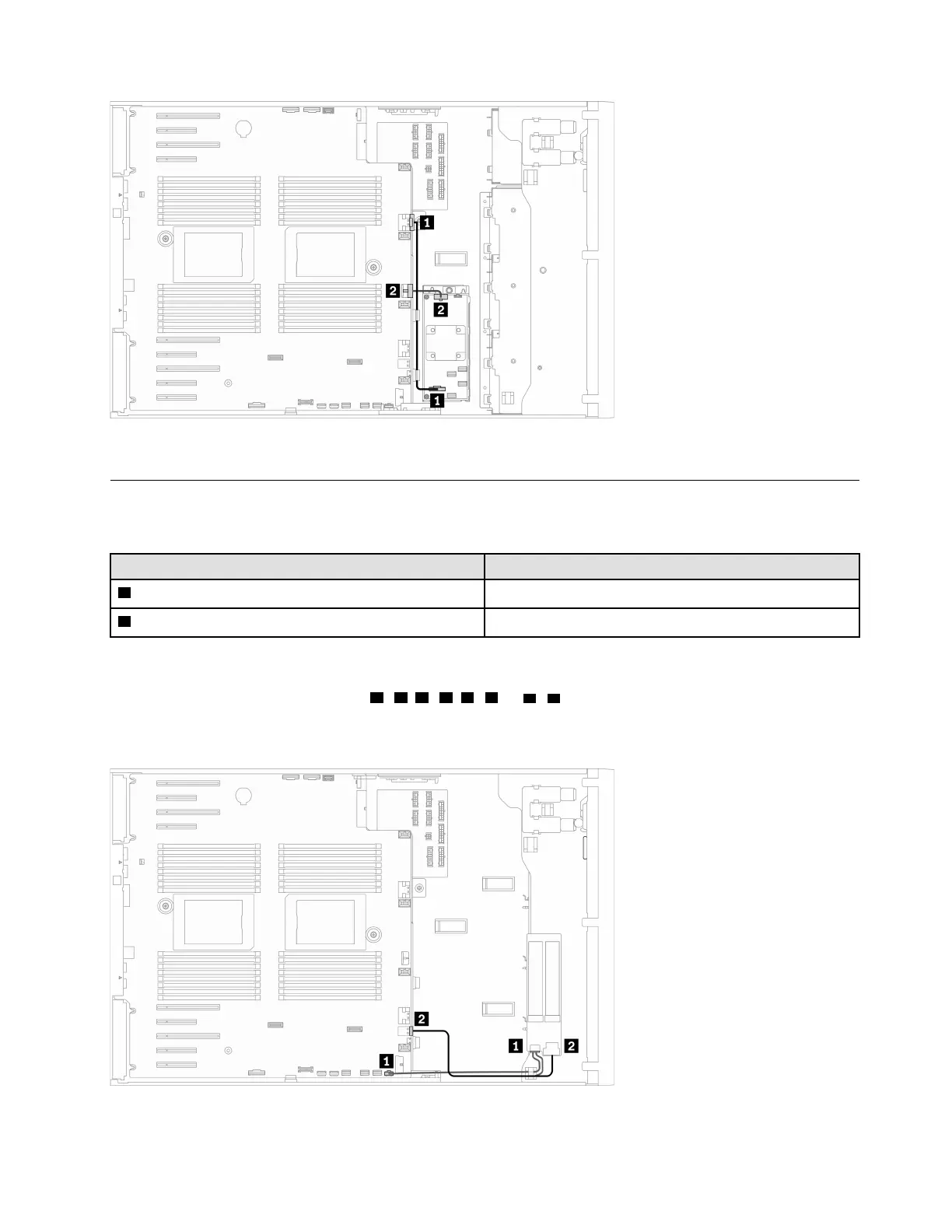

Figure 27. Cable routing for the CFF RAID adapter
M.2 boot adapter cable routing
Use the section to understand the cable routing for the M.2 boot adapter.
From To
1 M.2 power connector on the M.2 boot adapter
System board: M.2 power connector
2 M.2 signal connector on the M.2 boot adapter
System board: M.2 signal connector
Notes:
• Connections between connectors;
1 ↔ 1 , 2 ↔ 2 , 3 ↔ 3 , ... n ↔ n
• When routing the cables, ensure that all cables are routed appropriately through the cable guides and
cable clips.
Figure 28. Cable routing for M.2 boot adapter
Chapter 3. Internal cable routing 51
