Optical drive cable routing
Use the section to understand the cable routing for the optical drives.
From To
1 Power connector on optical drive Power distribution board: ODD power connector
2 Signal connector on optical drive System board: Internal USB connector 3
Notes:
• Connections between connectors;
1 ↔ 1 , 2 ↔ 2 , 3 ↔ 3 , ... n ↔ n
• When routing the cables, ensure that all cables are routed appropriately through the cable guides and
cable clips.

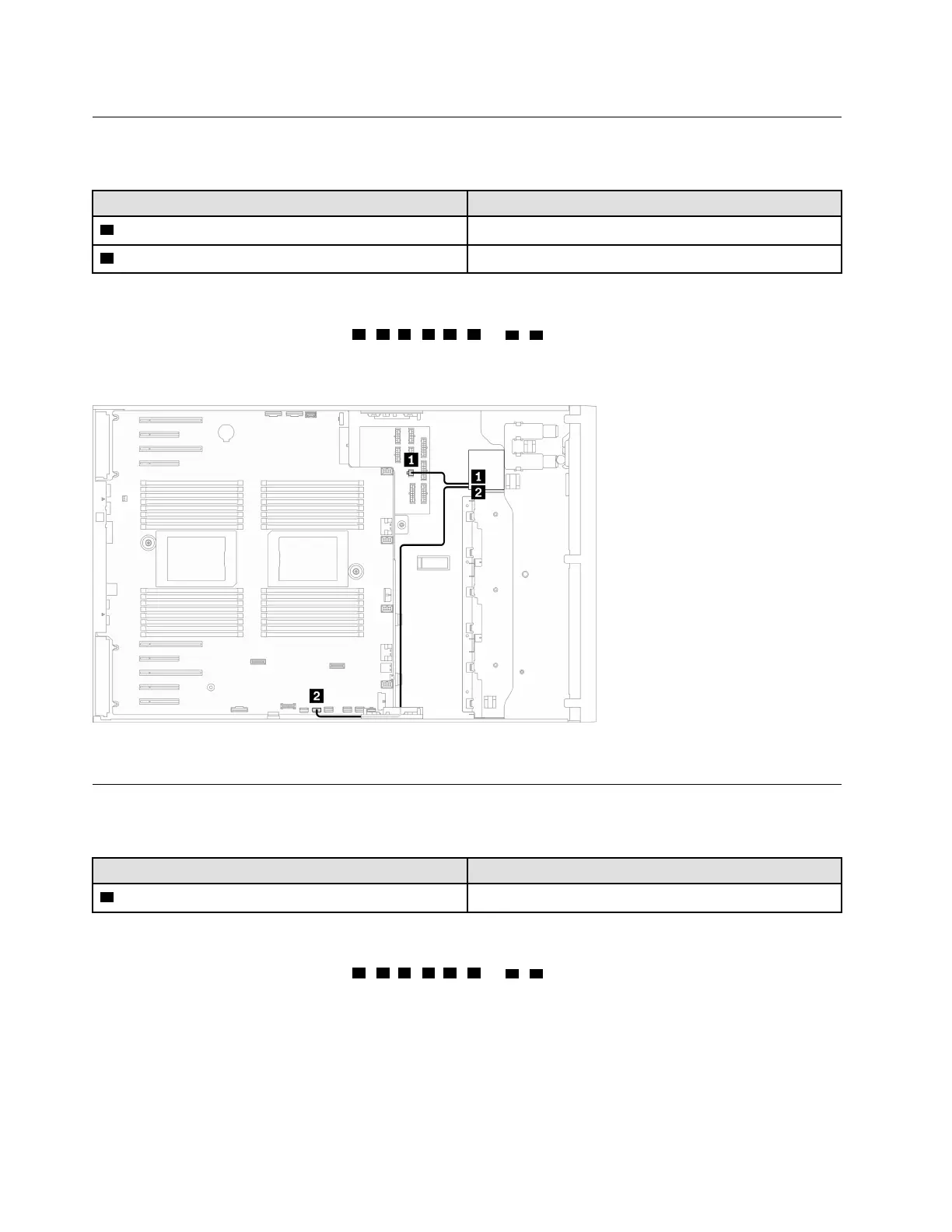

Figure 29. Cable routing for optical drive
PCIe slot 8 cable routing
Use the section to understand the cable routing to enable PCIe slot 8.
From To
1 System board: PCIe slot 8 enable connector System board: PCIe 4 connector
Notes:
• Connections between connectors;
1 ↔ 1 , 2 ↔ 2 , 3 ↔ 3 , ... n ↔ n
• When routing the cables, ensure that all cables are routed appropriately through the cable guides and
cable clips.
