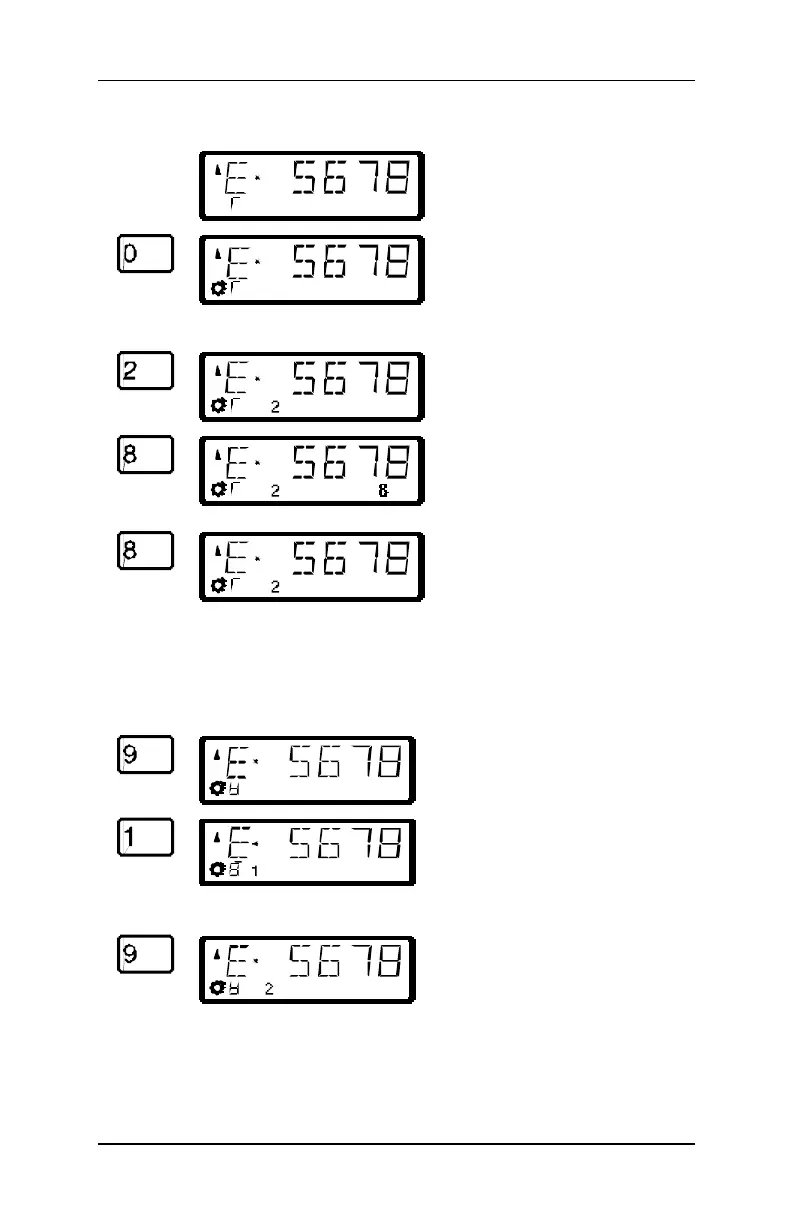

Press On the display you see Explanation
This function 0 is assigned to the
headlights in most locomotive
decoders and is shown by the
lamp symbol in the lower row of
the display.
The state of functions 1 to 8 is
shown in the second row next to
the “F”.
If the functions are set to on/off
mode (factory default), then the
first key stroke turns on the
function.
The next keystroke turns the
function off again.
If the function is set to momentary
activation, then it is only turned on
for as long as the key is pressed.
The display shows accordingly.
To turn functions 9 to 12 on and off, you must first switch the
display over to the high order function block using the '9' key:
The "F" in the lower row changes
to a slowly flashing "8".
The '1' key now turns on function
9, the '2' key function 10 and so on.
You must simply add the number 8
to the displayed function (flashing
display) .
To return to functions 1 to 8, again
press the ‘9’ key.
By pressing one of the keys that turn functions on or off, you are
also asking the DCC command station to send the locomotive an
instruction to activate or turn off that specific function.
