Lenz Digital plus SET-01/4 User Manual

Information SET-01 43
DIGITAL plus
12 Throwing turnouts and setting signals
In this section you learn:
- how to control turnouts or signals
You reach this function menu in one of two ways
followed
by
OR
then scroll
through the
menus using
or
until you
see a
display of
then press
With the turnout control function you can use the hand held
controller LH100 to throw turnouts, set signals or for instance
activate relays. For this to work, these devices must be connected
to accessory decoder LS100/110/120 of the Digital plus by Lenz
®
system or to other compatible NMRA DCC accessory decoders.
Proceed as follows:

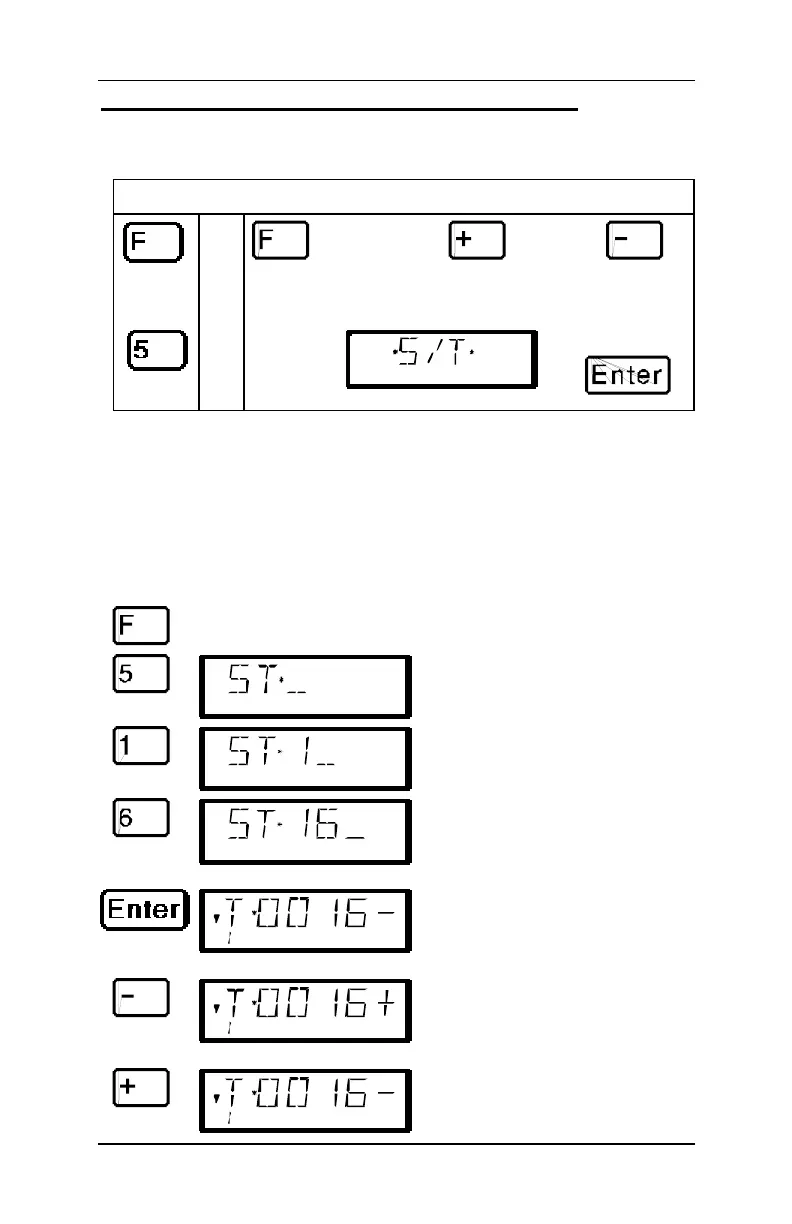

Press On the display you see Explanation
Display shows the most
recently selected menu
Enter the number of the turnout (the
magnetic device) that you want to
actuate.
If needed you can use the ‘Cl’ key to
correct your entry
The valid entry range is 1 to 1024. If
you enter a lower or higher value,
then you will again be prompted to
enter a turnout address.
Following the number (address) of
the turnout will now appear a + or - to
show the status of the turnout (or
signal).
Use the ‘+’ or ‘-’ keys to change the
status of the turnout (or other device
connected to the accessory
decoder).
The changed status is shown.
