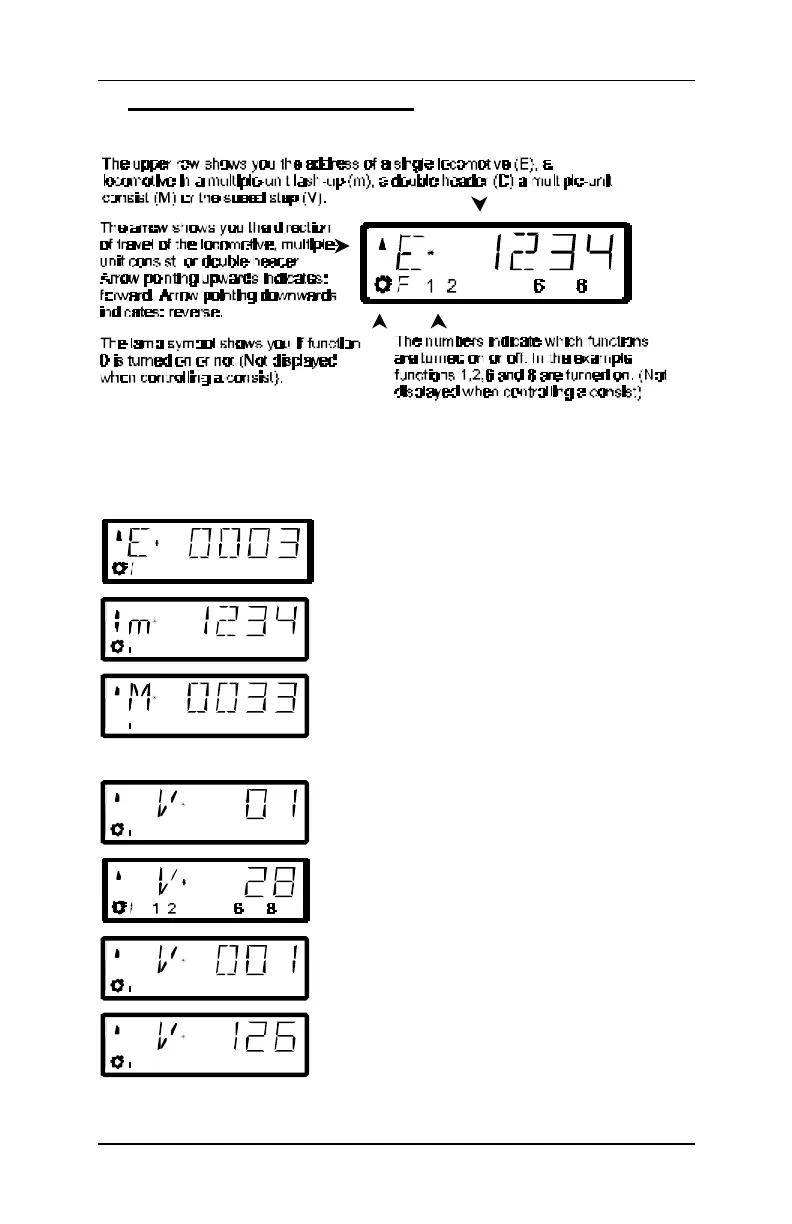

6 The LH100 LCD Display
In this section you will learn about the LH100 two-row LCD display.
Depending on which mode of operation you are using, the display
will look different. The display for the locomotive address always
uses 4 digits. Zeros are added in front of the address if needed.
Here are examples of the most important displays:
A single locomotive with address 0003 is
being controlled.
A locomotive with address 1234 is in a
multi-unit consist.
A multi-unit consist with address 33 is
being controlled.
Examples for the display of speed steps:
1 2 6 8
Speed step 1 in "28 speed steps" mode
Speed step 28 in "28 speed steps" mode
1 2 6 8
Speed step 1 in "128 speed steps" mode
1 2 6 8
Speed step 126 is the maximum speed in
"128 speed steps" mode
