the corresponding key is pressed. When you release the key, the
function being controlled is turned off again.
This setting is stored in the LZ100 command station. The LH100
hand held controller will check these settings each time a
locomotive is called up. You can configure this setting for each
function and each locomotive address individually.
All function menus are reached through the ‘F’ key and subsequent
paging with the ‘+’ or ‘-’ key.
Proceed as follows:

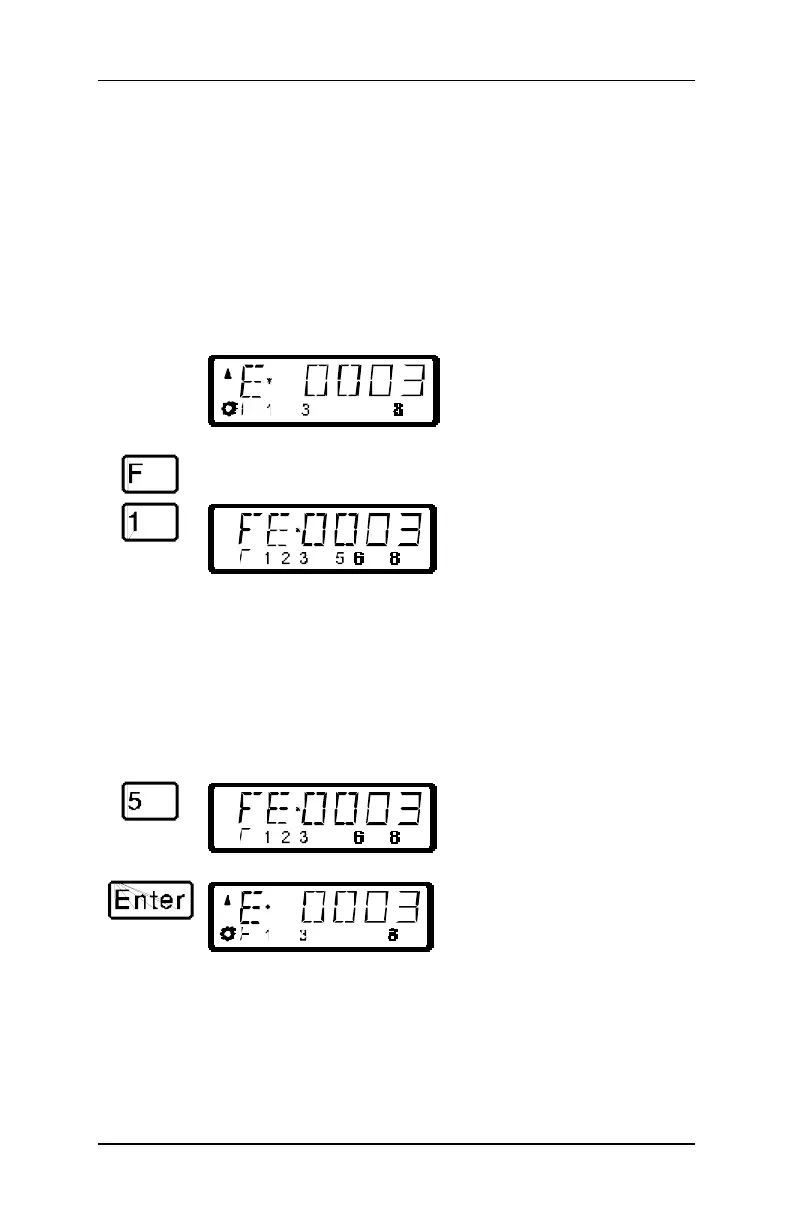

Press On the display you see Explanation
Call up the locomotive address
whose function setting you want
to display or change.
The most recently selected
menu is displayed
The digits in the lower row show
which functions are set to on/off
operation and which are set to
momentary operation. In the
example shown functions 1, 2, 3
and 5, 6 and 8 are displayed
which means the function is
on/off. This also means that
functions 4 and 7 are set to
momentary operation. If you want
to change this setting, then simply
press the key corresponding to
the function.
By pressing key '5' the number "5"
is no longer lit. Function 5 is now
set to momentary operation.
Close the input with the ‘Enter’
key. The new setting is stored in
the command station. ‘Esc’ will
take you back to controlling
locomotives without storing and
changed information.
