8 Information SET-01

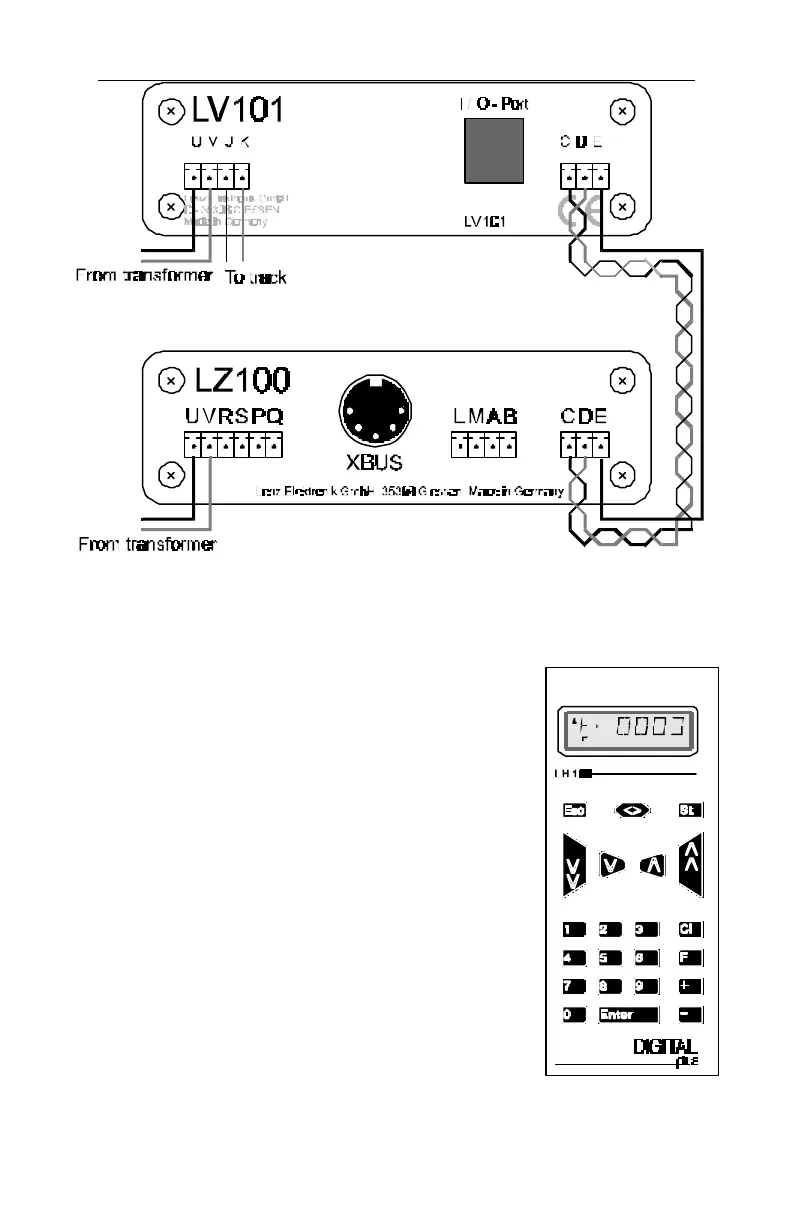

4. Connect the LZ100 and the LV101 by installing a wire
between the C connection on the LZ100 to the C connection
on the LV101. Install a second wire between the D connection
on the LZ100 to the D connector on the LV101.
5. Put the locomotive which is equipped with the
locomotive decoder onto the track. (refer to
the instructions that came with the decoder
for installation instructions)
6. Plug the power cord of the transformer into a
wall socket. The display on the LH100 lights
up and the red led's on the LZ100 and LV101
turns on solid red.
You can now start operating trains!
(Yes, already!)
