Configuration
7-112
48XX/49XXSHB0399

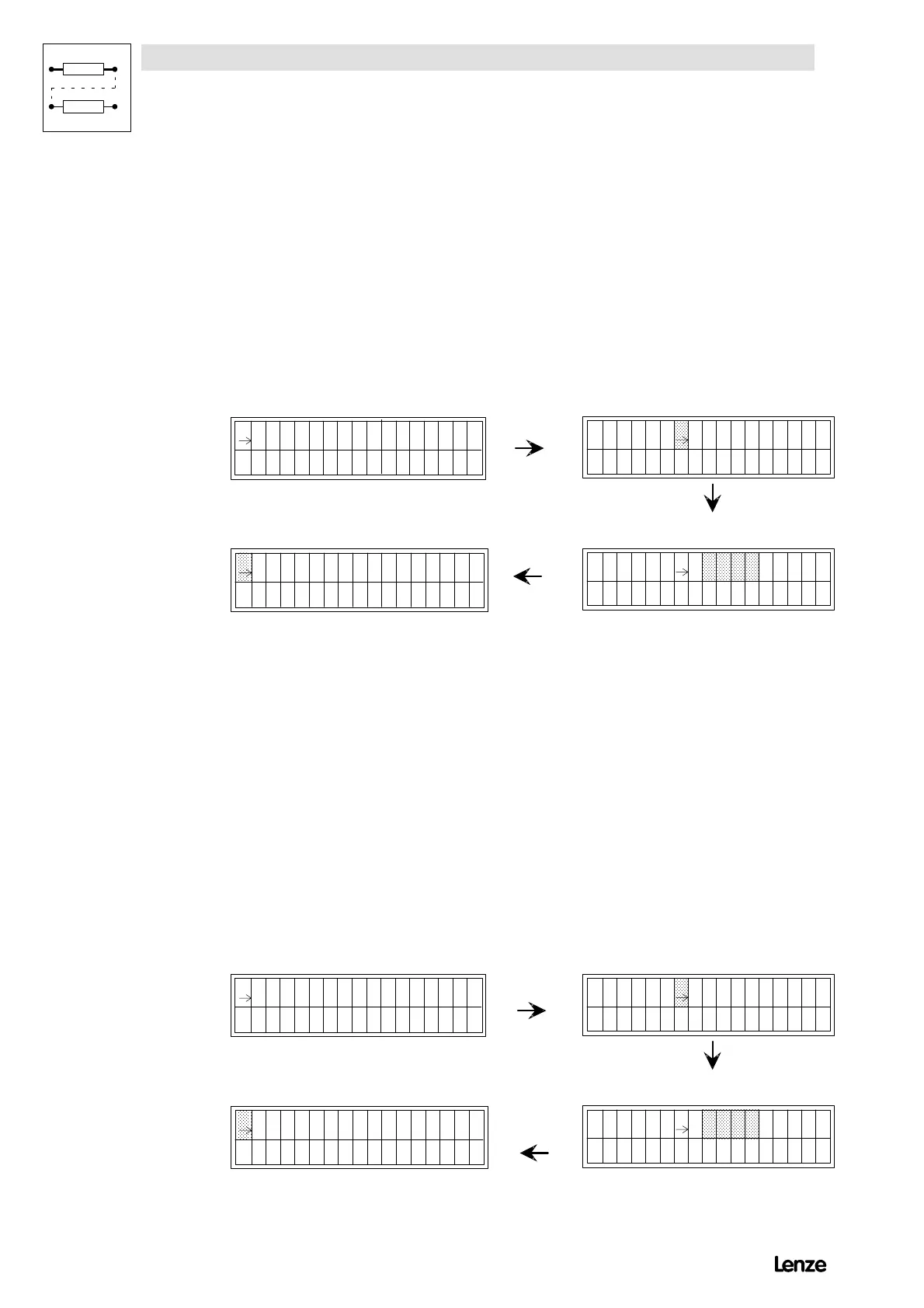

Acceptance with SH + PRG
The controller accepts the changed parameter only after pressing SH+PRG.
1. Select a code using s or t.
2. Change to the parameter level using PRG.
3. Change a parameter (even while the drive is running) using s or t.
4. Press SH + PRG. ( --ok-- is displayed for approx. 0.5 s)
The controller now works with the new parameter.
Code level Parameter level
C83 0.0 A
Code Parameter Unit
00
F I E LD C UR RE NT
PRG
C83 0.0
FI ELD CURRENT
A00
Code Parameter Unit
Change a parameter
with s or t
C83 .A0012
F I E LD C UR RE NT
Code Parameter Unit
SH + PRG
C83 .A0012
FI ELD CURRENT
Code Parameter Unit
Acceptance with SH + PRG when the controller is inhibited
The controller only accepts the changed parameter when the controller is inhibited
and after pressing SH + PRG.
1. Select a code using s or t
2. Change to the parameter level using PRG.
3. Change a parameter (even if the drive is running) using s or t .
4. Press STP to inhibit the controller.
5. Press SH + PRG. ( --ok-- is displayed for approx. 0.5 s)
6. Press SH + STP to enable the controller again
The controller now works with the new parameter.
Code level Parameter level
C
tro
005 - 11-
Cnfiguaion
Code Parameter Unit
PRG
C 005 -1 -
SP E E D C T R L T A C HO
1
Code Parameter Unit
Change a parameter
with s or t
C .
tro
005 - 1 -
Cnfiguaion
0
Code Parameter Unit
STP
2. SH + PRG
C 005 -1 -0
Code Parameter Unit
SP E E D C T R L A RM A T
