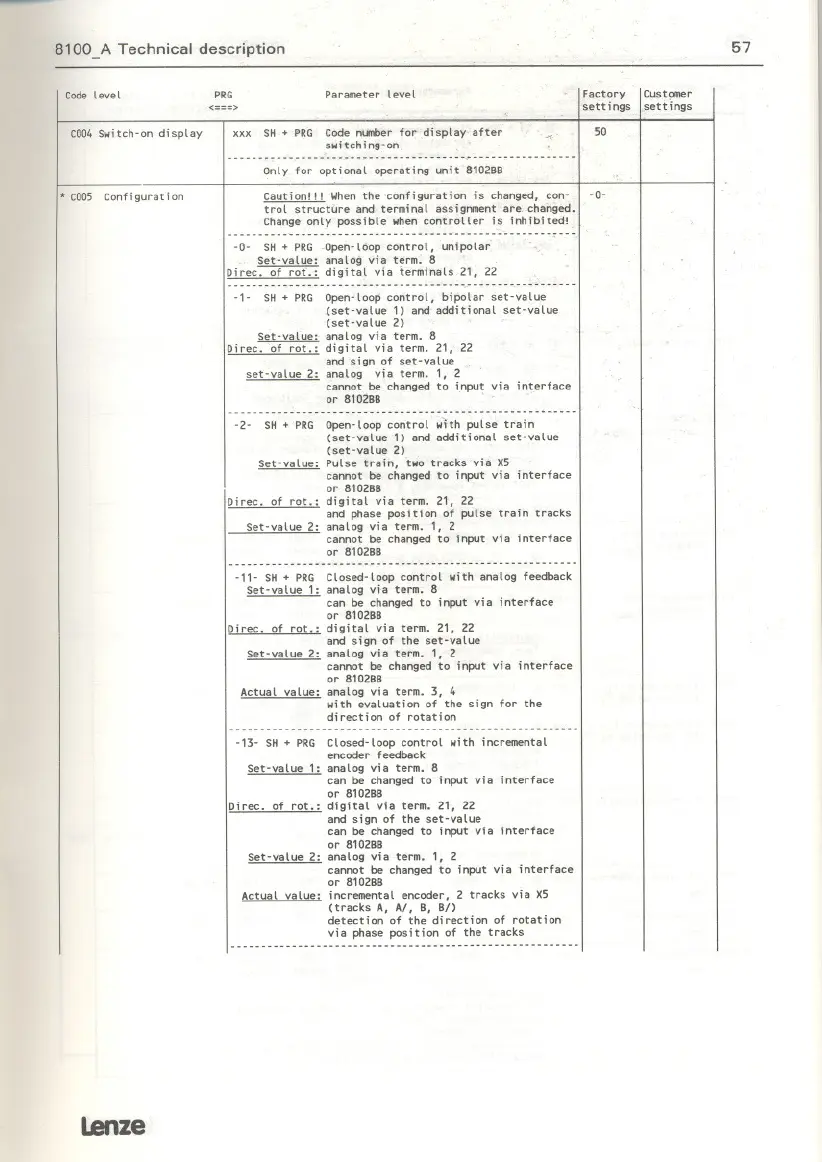

8100_A Technical description
57
Code level Factory
I
Customer
sett; ngs sett ings
C004 Switch-on display
* C005 Configuration
Lenze
Parameter levelPRG
<===>
xxx SM+ PRG Code nurber for display after
swhching.on
---------.......-..--....----------....-----.------..-----------
only for optional operating unit 8102BB
Cautionlll When the 'configuration is changed, con- I -0-
tral structure end terminal assignnent are. changed.
Change only possibl. when controller is inhibitedl
------------------------------------------....-------------
-0- SH+ PRG .Open-Löop control, unipolar
Set-value: analog via term. 8
Direc. of rot'.: digital via terminals 21, 22
-----....--------------------......---------.---..-......----------
-1- SH + PRG Open-loop control, bipolar set-value
(set-value 1) and additi onal set-value
(set-value 2)
Set-value: analog vi a term. 8
Oirec. of rot.: digital via term. 21, 22
and sign of set-value
set-value 2: analog via term. 1, 2
camot be changed to i_nput via interface
or 810288
....--.------.--..---..-..--..---------..--...-.---.-----
-2- SN + PRG Open-loop control whh pulse train
(set-value 1) and additional set-value
(set-value 2)
Set-value: Pulse train, two tracks via X5
camot be changed to input via interface
or 810288
Direc. of rot.: digital via term. 21, 22
and phase position of pulse train tracks
Set-value 2: analog via term. 1, 2
cannot be changed to input vi a interface
or 8102BB
------..---------.-.--..--.-------..-....--.-------------
-11-
SH+ PRG Closed-loop control with analog feedback
Set-value 1: analog via term. 8
can be changed to input via interface
or 8102BB
Direc. of rotw: digital via term. 21, 22
and sign of the set.value
Set.value 2: analog via term. 1, 2
camot be changed to input via interface
or 8102BB
Actual value: analog via term. 3, 4
with evaluation of the sign for the
direction of rotation
.---.------------.--..--...-...------.--..---...--.---_.-
.13- SN+ PRG Closed.loop control with incremental
encoder feedback
Set.value 1: analog via term. 8
can be changed to input via interface
or 81028B
Direc. of _rot~_; digital via term. 21, 22
and sign of the set-value
can be changed to input via interface
or 810288
Set-value 2: analog via tenn. 1, 2
cannat be changed to input via interface
or 8102BB
Actual value: incremental encoder, 2 tracks via XS
(tracks A, AI, B, 81)
detection of the direction of rotation
via phase position of the tracks
-----...--.--------...---.--...--.---.--.------.....----.
50
