Lenze 8200 vector - Communication Modules

Basic units in the power range 3 ... 11 kW
Communication modules
7
Extensions for automation
7.3
7.3.7
L
7.3-15
EDS82EV903-1.0-11/2002
7.3.7 Communication modules
)
))
) Note!
For information on wiring and using bus communication modules
please see the corresponding Mounting Instructions and
Manuals.
0
0


248200vec073

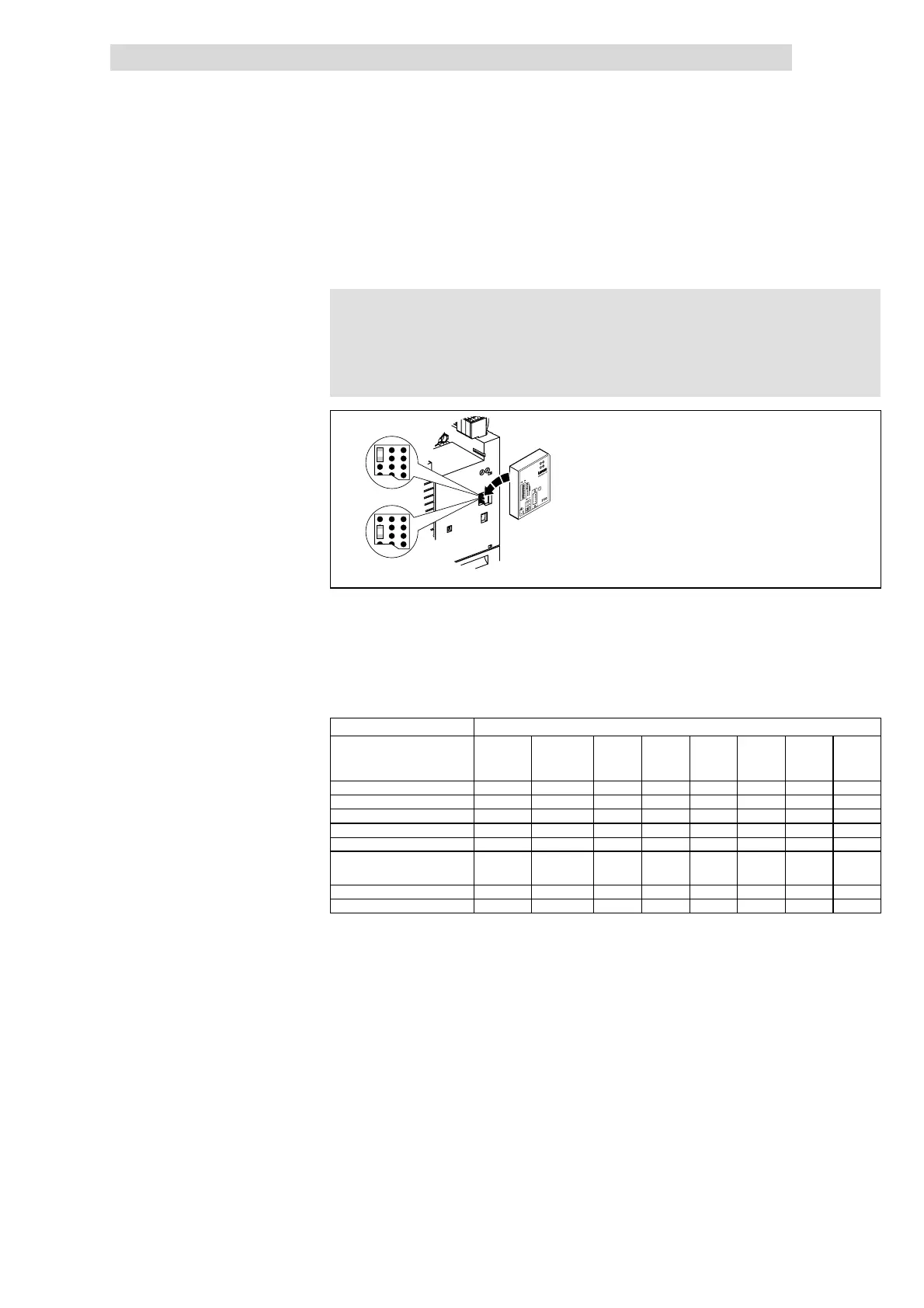

Fig. 7.3-9 Mounting and selecting the voltage supply of the communication modules
0
Jumper for selecting the voltage supply
 External voltage supply (delivery state)
 Voltage supply via internal voltage source
Attach/detach the communication module to/from the AIF interface. This is also possible during operation.
Possible combinations
Communication module on AIF
Function module in FIF
(Design: Standard or PT)
Keypad
E82ZBC
1)
Keypad XT
EMZ9371BC
1)
LECOM
-A/B 2102.V001
-LI 2102.V003
-A 2102.V004
1)
LECOM-B
(RS485)
2102.V002
INTERBUS
2111/2113
INTERBUS-
Loop 2112
PROFIBUS-D
P
2131/2133
System bus
(CAN)
2171/2172
CANopen /
DeviceNet
2175
LON 2141
Standard I/O E82ZAFSC üü üü üü üü üü üü üü üü
Application I/O E82ZAFAC üü ü ü ü ü ü ü ü
INTERBUS E82ZAFIC üü ( ü) x x x x x x
PROFIBUS-DP E82ZAFPC üü ( ü) x x x x x x
LECOM-B (RS485) E82ZAFLC üü ( ü) x x x x x x
System bus (CAN )
System bus I/O-RS
System bus I/O
E82ZAFCC
E82ZAFCC100
E82ZAFCC200
üü üü üü üü üü üü üü üü
CANopen / DeviceNet
2)
E82ZAFD üü üü x x x x x x
AS-i E82ZAFFC üü üü x x x x x x
1)
Independently of the jumper position always supplied internally.
2)
In preparation
üü Combination possible, internal or external supply of the communication module
ü Combination possible, external voltage supply!
(
ü) Combination possible, communication module can only be used for parameter setting.
x Combination not possible
