Lenze 8200 vector

Signal processing in the function blocks
Controller state (STAT1, STAT2)
16
Signal-flow charts
16.4
16.4.8
L
16.4-9
EDS82EV903-1.0-11/2002
Controller state (STAT2)
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
STAT2
C0418/1
STAT2.B0
STAT2.B1
STAT2.B2
STAT2.B3
STAT2.B4
STAT2.B5
STAT2.B6
STAT2.B7
STAT2.B8
STAT2.B9
STAT2.B10
STAT2.B11
STAT2.B12
STAT2.B13
STAT2.B14
STAT2.B15
C0418/2
C0418/3
C0418/4
C0418/5
C0418/6
C0418/7
C0418/8
C0418/9
C0418/10
C0418/11
C0418/12
C0418/13
C0418/14
C0418/15
C0418/16
FIF-OUT.W2
C0151
CAN-OUT2.W1
8200vec522

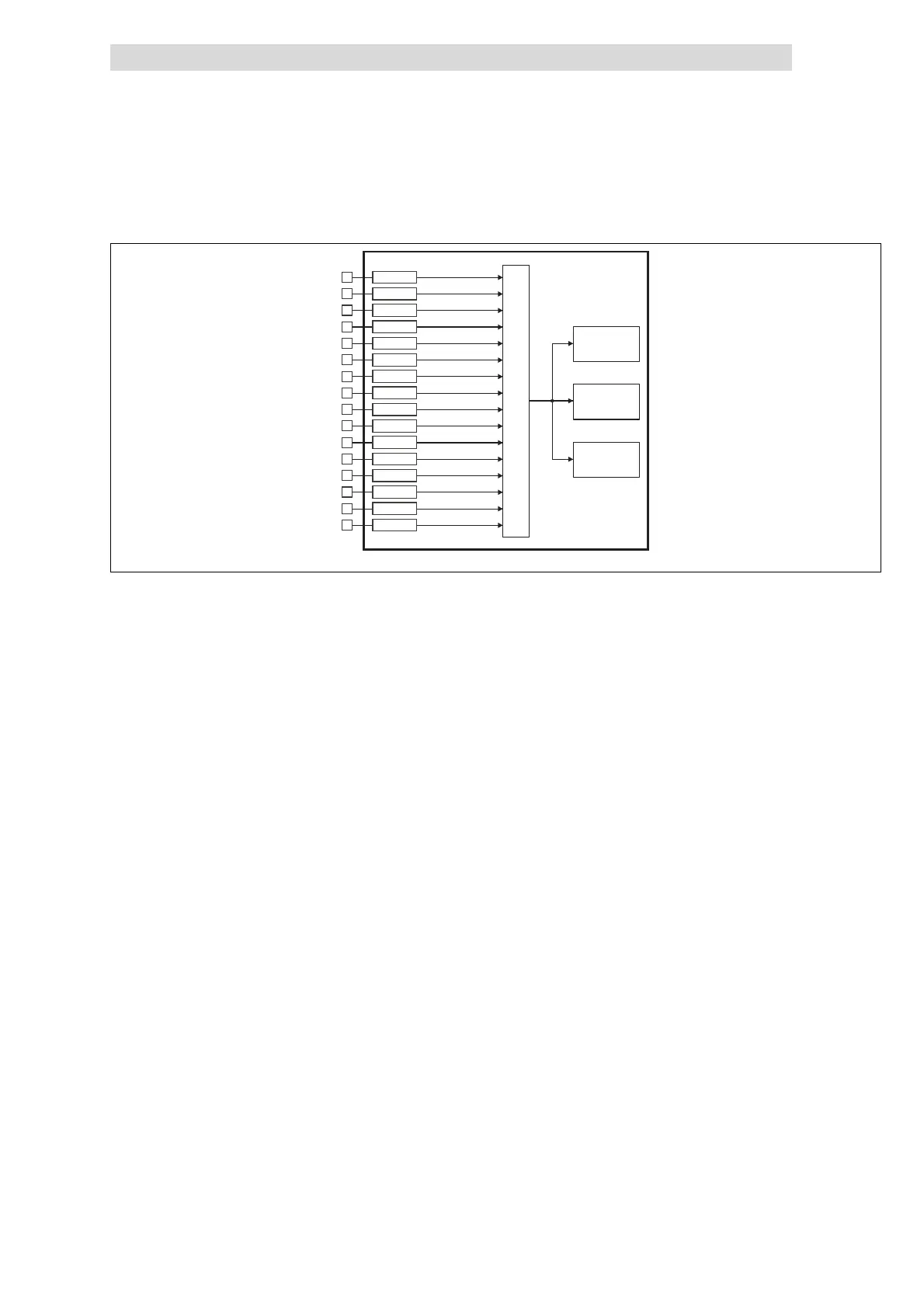

Fig. 16.4-10 Signal flow in the STAT2 controller state
