Lenze ECSEM Series User Manual

Appendix
Communication with MotionBus/system bus (CAN)
Process data transfer
12

344
EDBCSXM064 EN 11.0
12.3.3.5 Event−controlled process data objects
The event−controlled process data objects are particularly suitable for the data exchange
between controllers and for distributed terminal extensions. They can, however, also be
used by a host system.
X14
X4
X14
X14X14
TPDO2
RPDO2
X4
X4 X4
TPDO2
RPDO2
TPDO2
RPDO2
ECSxS/P/M/A...
ECSXA219

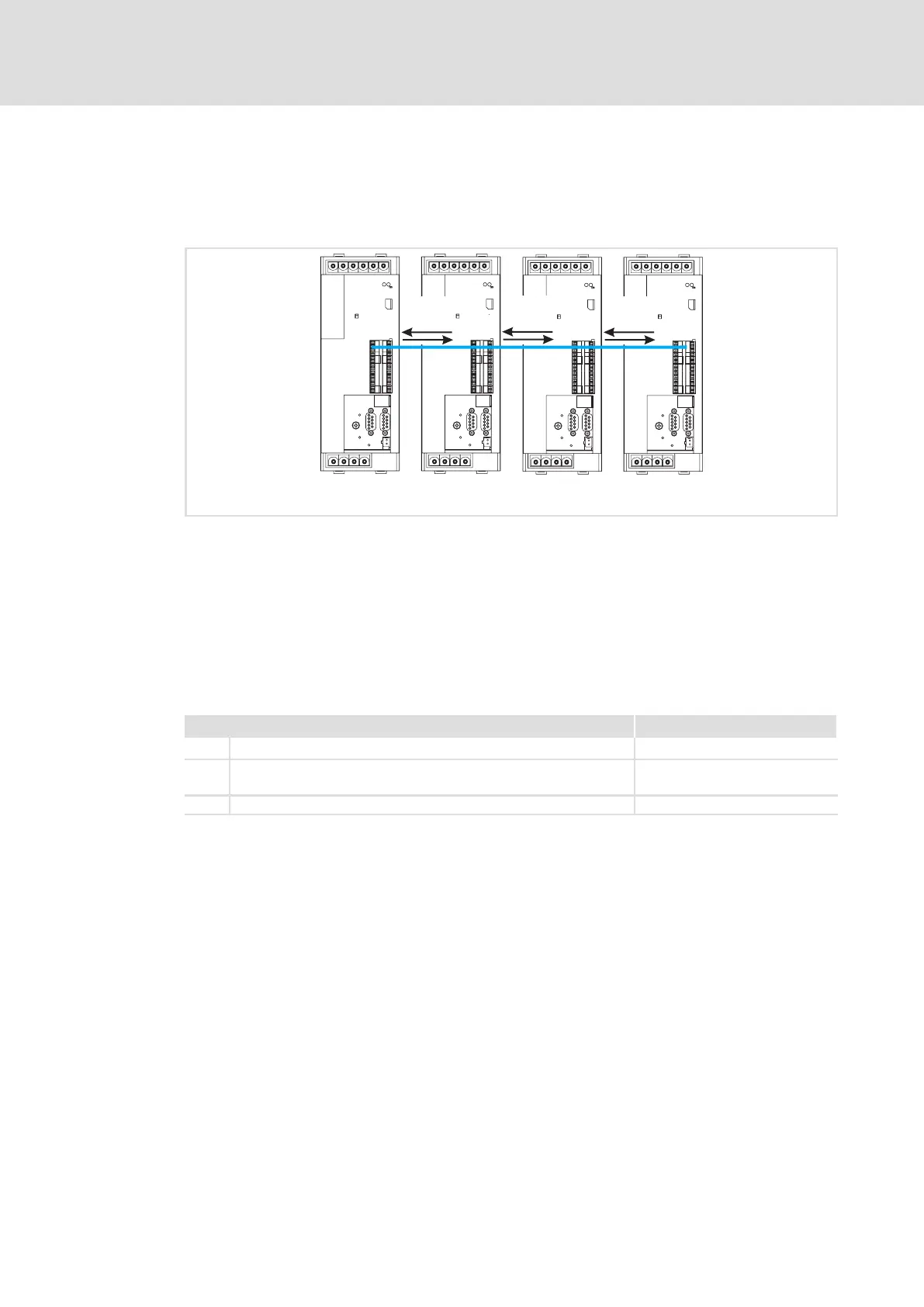

Fig. 12−8 Example: event−controlled process data objects PDO2
The process data objects serve to transmit simple binary signals (e.g. states of digital input
terminals) or complete values in 16 and 32 bits (e.g. analog signals).
Event−controlled process data objects with adjustable cycle time (optional)
The output data is transmitted
ƒ event−controlled if a value changes within the user data (8bytes) or
ƒ cyclically with the cycle time set:
Interface Code
x1 Automation interface (AIF) C2356
X4 ECSxS/P/M: MotionBus (CAN)
ECSxA: system bus (CAN)
C0356
X14 System bus (CAN) C2456
