6.11 Entry of machine parameters
The GDC parameter menu includes the codes for machine parameters (e.g. deceleration
time for quick stop or maximum speeds) under Motion Machine parameter.

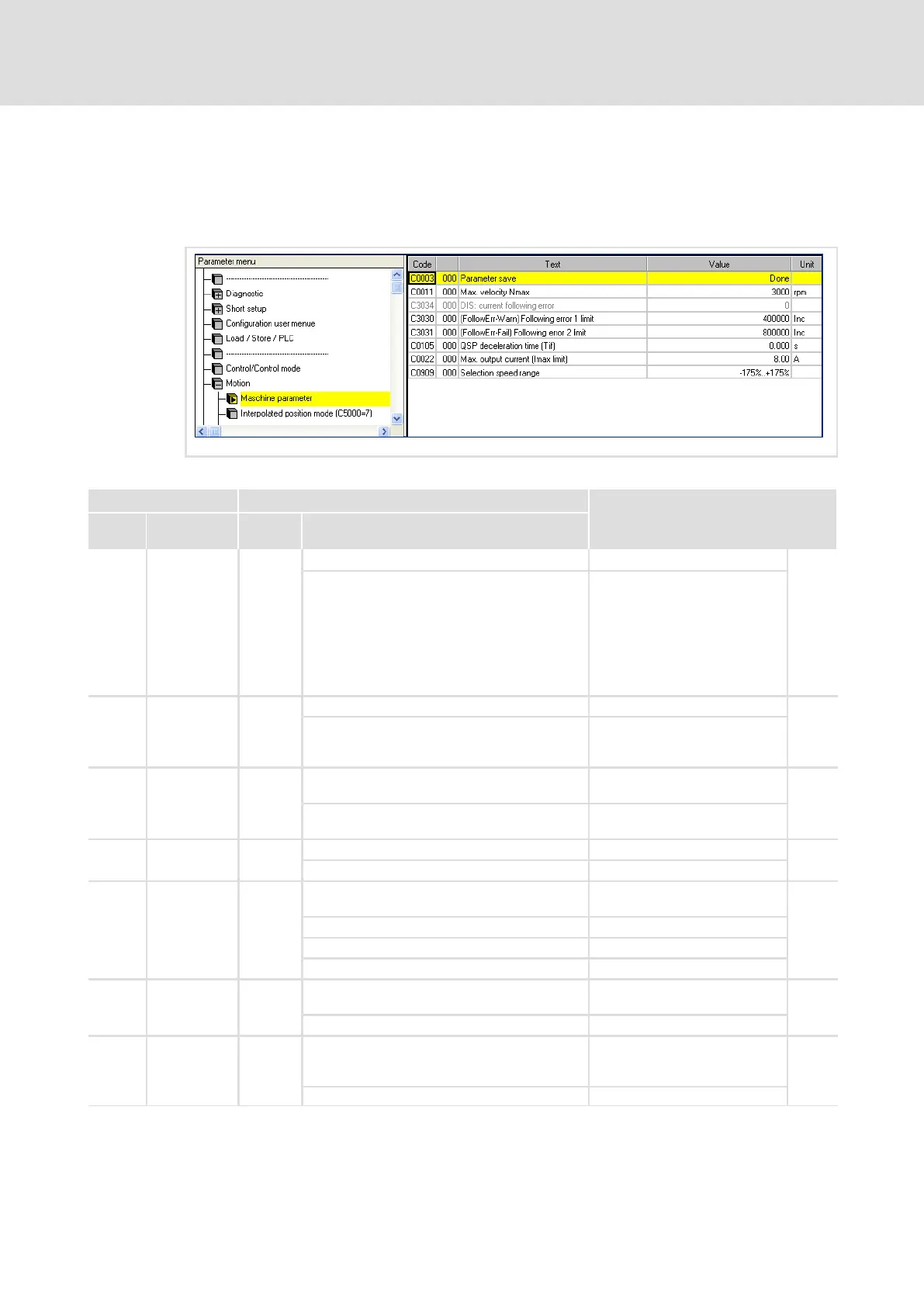

ECSXA535
Fig. 6−14 GDC view: Short setup, entry of machine parameters
Code Possible settings IMPORTANT
No. Designation Lenze/
{Appl.}
Selection
C0011 Nmax 3000
Maximum speed
500 {1 rpm} 16000 Reference value for the absolute
and relative setpoint selection
for the acceleration and
deceleration times.
For parameter setting via
interface: greater changes in one
step should only be made when
the controller is inhibited (CINH)!
C0022 Imax current à
I
max
limit
0 {0.01 A} à Device−dependent list
Max. current can be gathered
from the technical data.
C0105 QSP Tif 0.0
Deceleration time for quick stop
(QSP)
173
0.000 {0.001 s} 999.999 Relating to speed variation n
max
(C0011) ...0 rev./min.
C0596 NMAX limit 5500
Maximum system speed
250
0 {1 rpm} 16000
C0909 speed limit 1
Limitation of direction of
rotation for speed setpoint
1 −175 ... +175 %
2 0 ... +175 %
3 −175 ... 0 %
C3030 FolloErrWarn 400000 Following error limit for enabling
a warning
170
0 {1 inc} 2140000000
C3031 FolloErrFail 800000 Following error limit for enabling
a FAIL−QSP
(Quick stop (QSP) is executed.)
170
0 {1 inc} 2140000000
