10.1 Diagnostics with Global Drive Control (GDC)
The GDC diagnostics parameter menu contains the codes for diagnosing the drive system.
ECSXA546

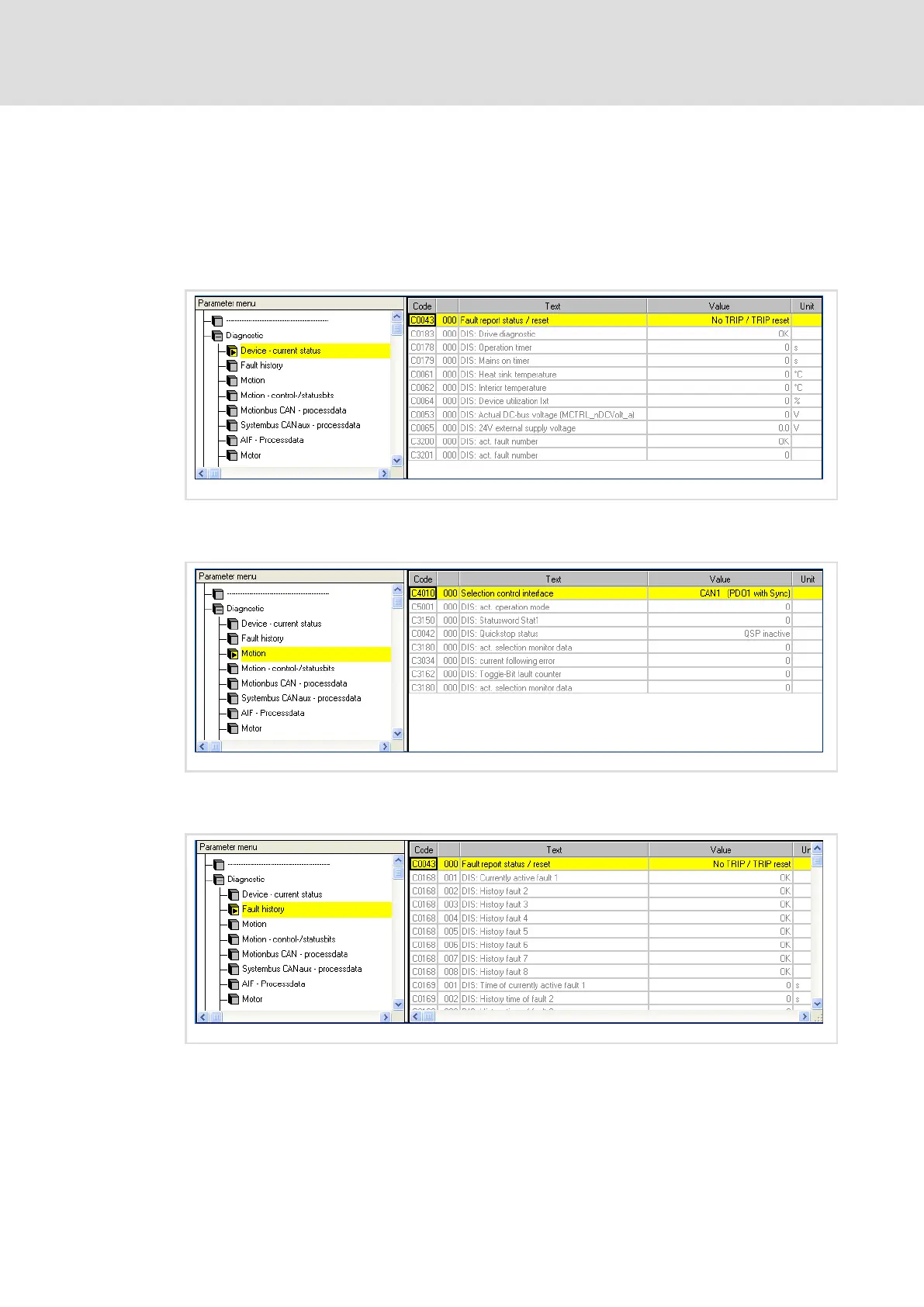

Fig. 10−1 GDC view: Diagnostics − Device − current status
The most important operating values are displayed underDiagnostics Motion:
ECSXA547
Fig. 10−2 GDC view: Diagnostic of Display−Motion
Information on the fault history are displayed under Diagnostics Faults:
ECSXA548
Fig. 10−3 GDC view: Fault diagnostics
