Commissioning
Process data from the axis module (status words and actual values)
Toggle−bit monitoring
6
137
EDBCSXM064 EN 11.0

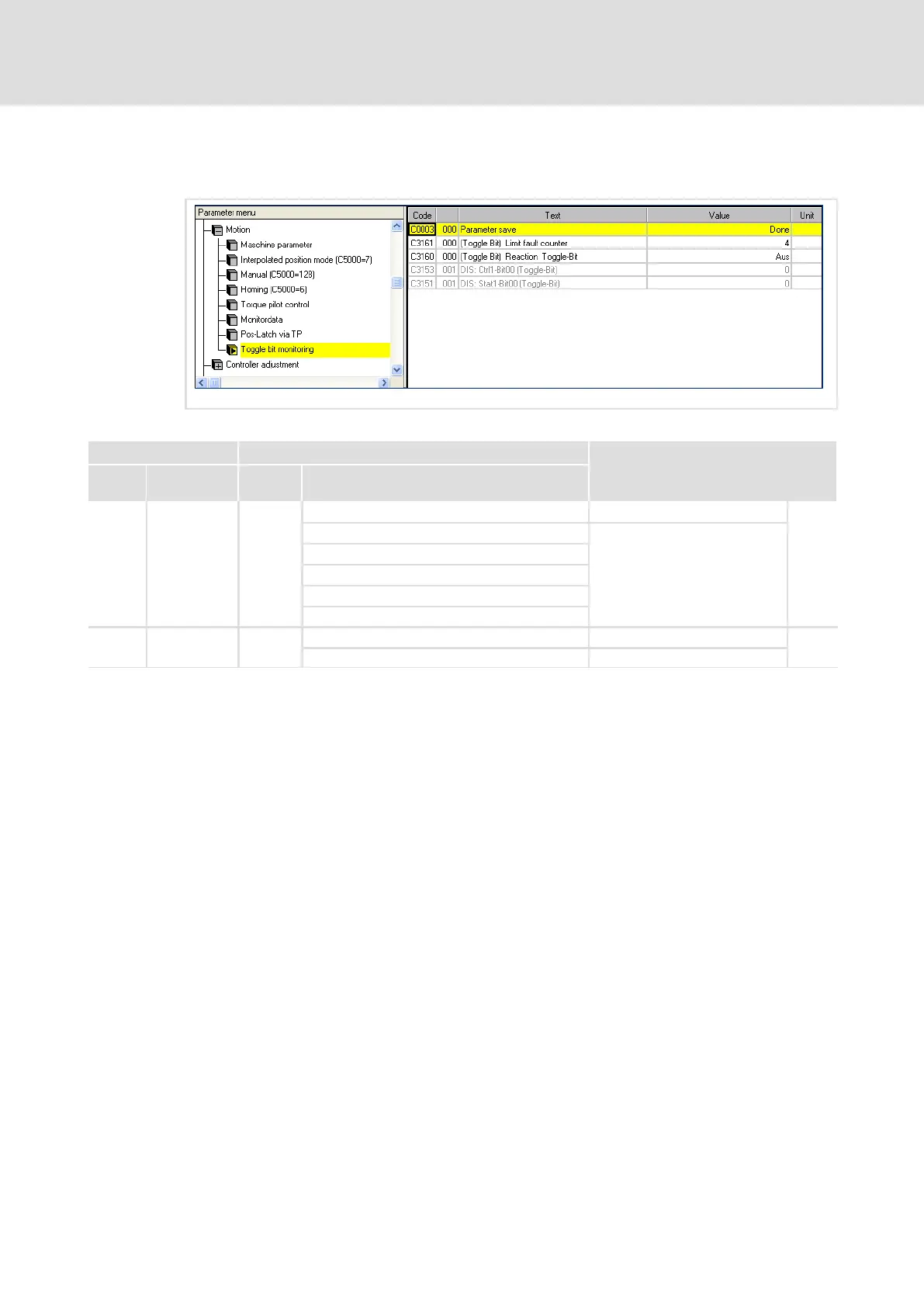

In the GDC, the error limit (C3161) and error response (C3160) can be set in the parameter
menu under Motion Toggle bit monitoring.
ECSXA545
Fig. 6−13 GDC view: Monitoring
Code Possible settings IMPORTANT
No. Designation Lenze/
{Appl.}
Selection
C3160 ToggleErrReac 3 Toggle bit error handling
136
0 TRIP
1 Message
2 Warning
3 Off
4 FAIL−QSP
C3161 ToggleErLimit 4 Toggle bit error counter limit
136
0 {1 units} 65535
