Lenze ECSES Series User Manual

Function library
DFOUT (master frequency output)
12

306
EDBCSXS064 EN 4.0

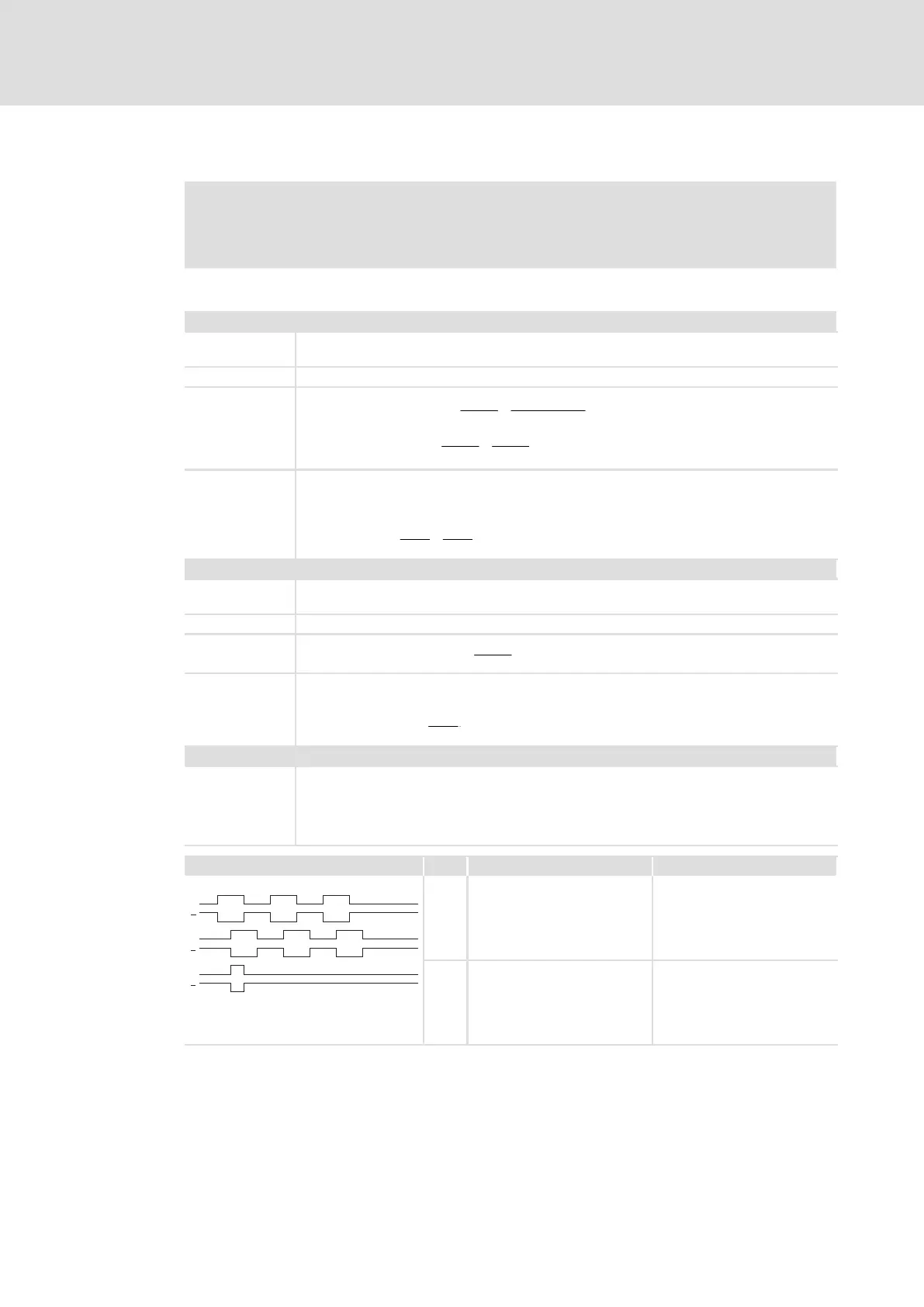

Configuring the master frequency output signal
 Note!
Dependent on the system, the master frequency output X8 has a delay time of
T
d
= 1 ms.
Via code C0540 you configure the type of the master frequency output signal:
C0540 = 0 Output of an analog signal
Function The input signal DFOUT_nOut_vis interpreted as an analog signal [%] and is output as a
frequency signal on the master frequency output X8.
Scaling 100 % º (INT)16384 º C0011 (n
max)
Transfer function
f[Hz] + DFOUT−Out[%] @
C0030
100
@
C0011(n
max
)
60
DFOUT−ln_v + f[Hz] @
60
C0030
@
2
14
15000
Example
l DFOUT_nOut_v = 50 %
l C0030 = 3, this corresponds to a number of increments of 2048 increments/revolution
l C0011 = 3000 rpm
f[Hz] + 50% @
2048
100
@
3000
60
 + 51200Hz
C0540 = 1 Output of a speed signal
Function The input signal DFOUT_nOut_vis interpreted as a speed signal [rpm] and is output as a
frequency signal on the master frequency output X8.
Scaling 15000 rpm º (INT)16384
Transfer function
f[Hz] + DFOUT−Out[rpm] @
C0030
60
Example
l DFOUT_nOut_v = 3000 rpm
l C0030 = 3, this corresponds to a number of increments of 2048 increments/revolution
f[Hz] + 3000rpm @
2048
60
+ 102400Hz
C0540 = 2 Encoder simulation of the resolver with zero track in resolver position
Function l The function is used if a resolver is connected to X7.
l The encoder constant for output X8 is set in C0030.
l The output of the zero pulse with reference to the rotor depends on how the resolver is
mounted to the motor.
l The zero pulse can be shifted by +360 ° via code C0545 (65536 inc = 360 °).
Signal sequence Track CW rotation CCW rotation
B
B
A
A
Z
Z
A If the input values are positive,
track A leads by 90º.
If the input values are
negative, track A lags by 90º.
B ˘ ˘
Signal sequence with phase shift (CW
rotation)
ƒ The output signal corresponds to the message of an incremental encoder:
– Track A, B and, if selected, zero track as well as the corresponding inverted tracks
are output with tracks shifted by 90 degrees.
– The levels are TTL compatible.
ƒ The zero track is output in accordance with the function set in code C0540.
