Commissioning
Configuration with internal DIP switches
Settings in the operating mode (normal operation)
7
l
61
EDBMZ9374X DE/EN/FR 4.2

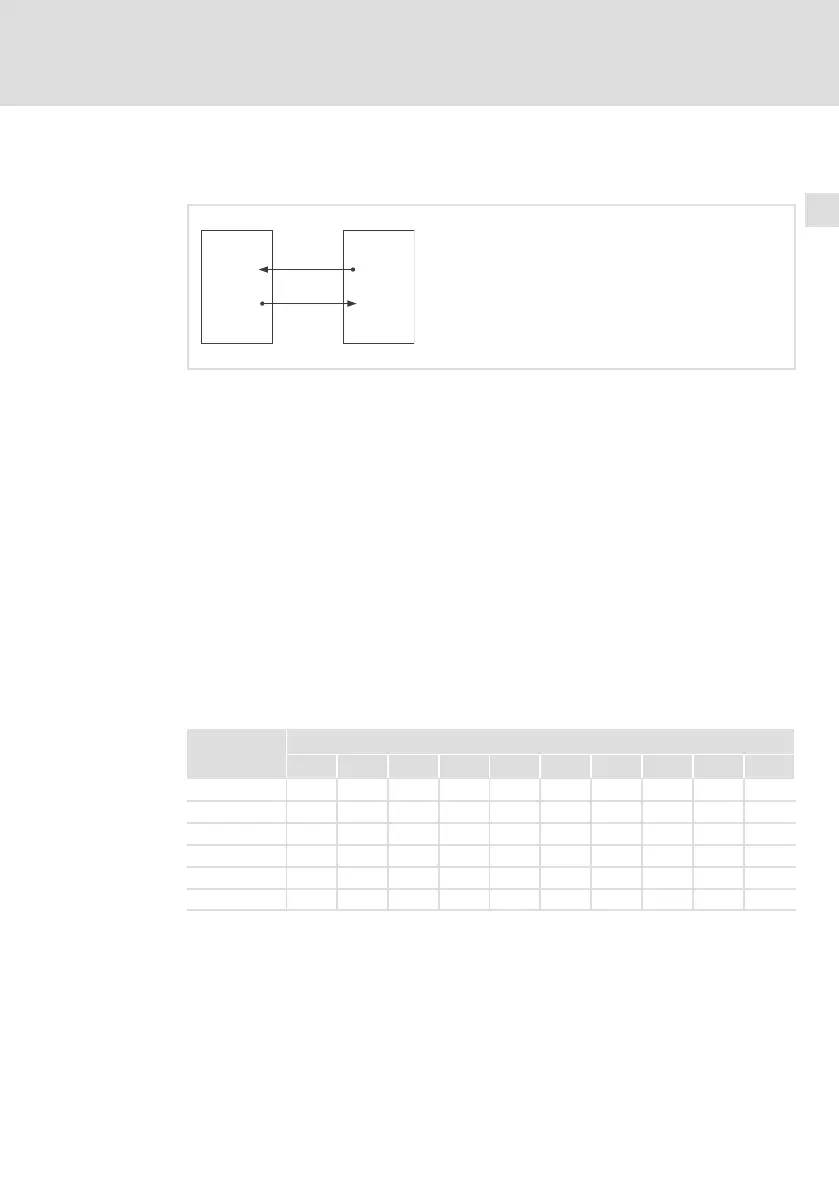

Addressing of the terminal extension
Kommunikation zwischen Klemmenerweiterung und Antriebsregler
CAN-IN
769
CAN-OUT
770
CAN-OUT
767 + 2 = 769
CAN-IN
768+2=770
9374C0350 = 1
A
1
A
2
PDO-TX
PDO-RX
9374_006
A
1
Controller with CAN bus node address 1 (C0350 = 1)
A
2
Terminal extension with CAN bus node address 2
Input/Output information is exchanged via the process data channel (PDO =
Process Data Object). Two process data messages (PDO−TX, PDO−RX) transmit
information. For the transmission, every message needs a CAN bus identifier
which consists of the addition of basis identifier and CAN bus node address of the
terminal extension (CAN bus identifier = basis identifier + CAN bus node
address).
ƒ PDO−TX: The terminal extension sends the status information of the digital
inputs to the controller.
– Basis identifier: 767
ƒ PDO−RX: The terminal extension receives the status information for the
digital outputs from the controller.
– Basis identifier: 768
DIP switch Address
1 2 3 4 5 6 7 8  63
1 ON OFF ON OFF ON OFF ON OFF ... ON
2 OFF ON ON OFF OFF ON ON OFF ... ON
3 OFF OFF OFF ON ON ON ON OFF ... ON
4 OFF OFF OFF OFF OFF OFF OFF ON ... ON
5 OFF OFF OFF OFF OFF OFF OFF OFF ... ON
6 OFF OFF OFF OFF OFF OFF OFF OFF ... ON
ƒ Set the address of the terminal extension using the DIP switches 1 ... 6.
