2.2.2 Interface description
12
3
4
5
678
h310_010

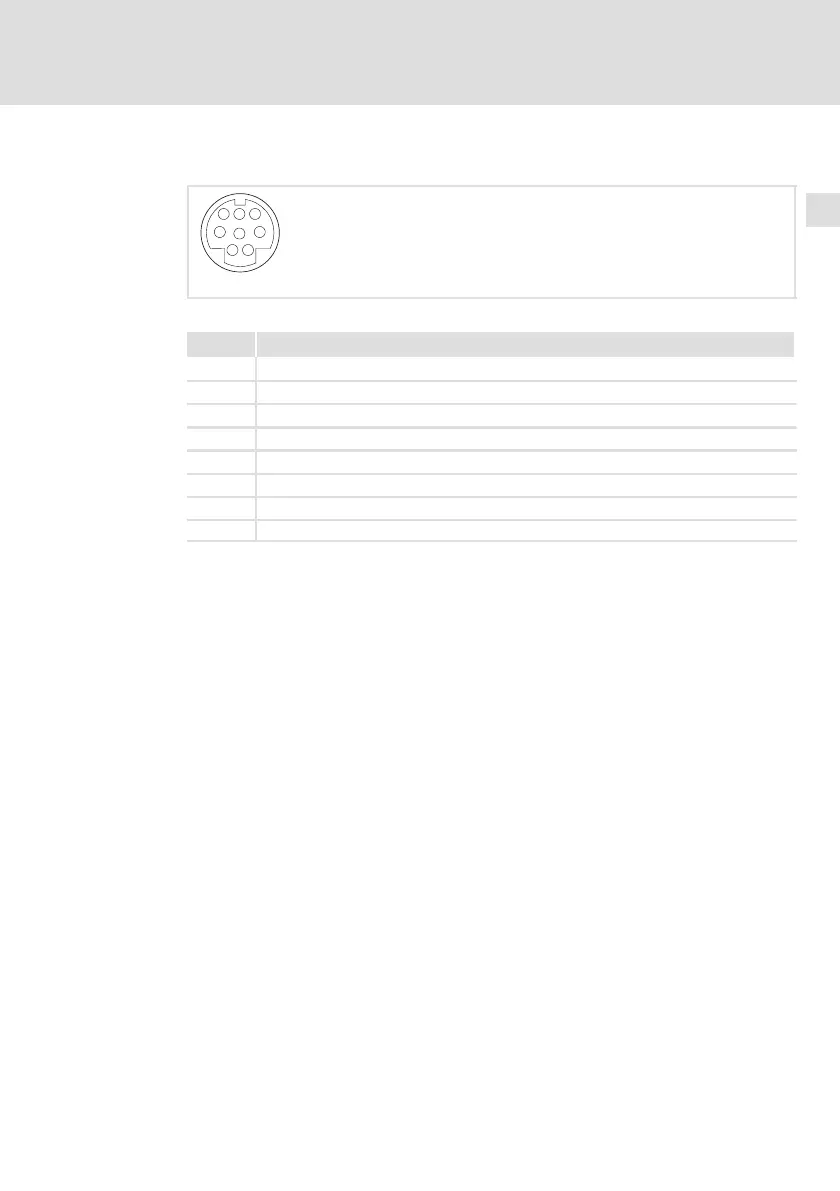

Fig. 2−1 ASP8 Minidin socket, 8−pin
Pin Signal
1 Rx RS232 IN
2 Tx RS232 OUT
3 n.c.
4 RTS RS232 OUT
5 CTS RS232 IN
6 n.c.
7 Signal GND
8 +5 VCC (reserved)
n.c. not connected
