Lenze EPM-H502 - 3 Mechanical installation

Mechanical installation
Mounting of the operating unit
3

63
EDBPM−H502 DE/EN/FR 5.1
3 Mechanical installation
3.1 Mounting of the operating unit
The dimensions for the mounting cutout can be found in the "Technical data"
( 62)

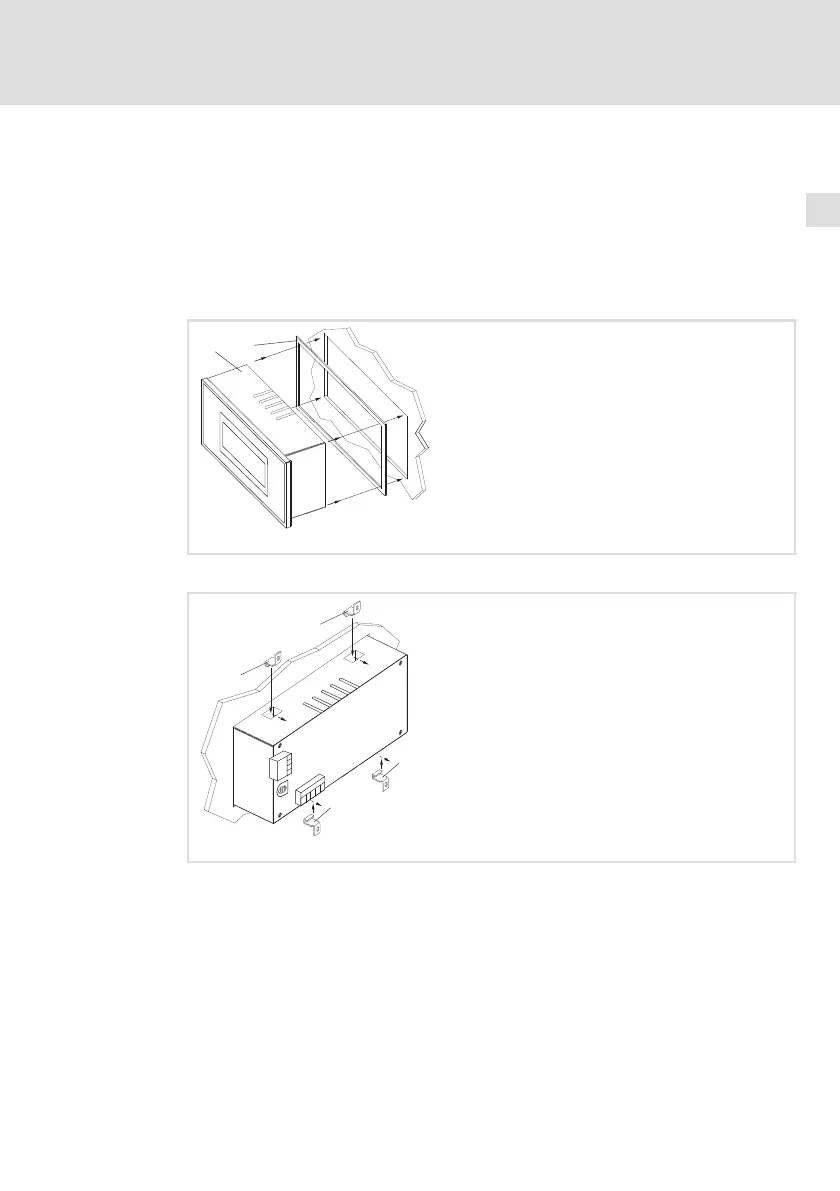

How to mount the operating unit:
0
1
h502_003
1. Push the operating unit  and the seal  into the mounting cutout.
FUSE
800 mA
ASP8
0 VDC
N.C.
+(18-32) VDC
10W
2
1
3
4
2
2
2
2
N.C.
CAN+
Shield
CAN-
V-
1
2
3
4
5
h502_004
2. Insert the mounting clamps  into the slots of the operating unit.
