Lenze EPM-H502 - 4 Electrical installation; 4.1 Supply voltage connection

Electrical installation
Supply voltage connection
4

65
EDBPM−H502 DE/EN/FR 5.1
4 Electrical installation
 Stop!
ƒ Damage of units connected. Connect the PE conductor as shown
in the figure!
ƒ Wire the operating unit only when no voltage is applied!
4.1 Supply voltage connection
FUSE 800 mA
+(18-32) VDC 10W
0VDC
1
2
3
4
N. C.
~
PE
N
L1
+18…32VDC
1234
ASP8
N.C.
CAN+
Shield
CAN-
V-
123 4 5
h502_006

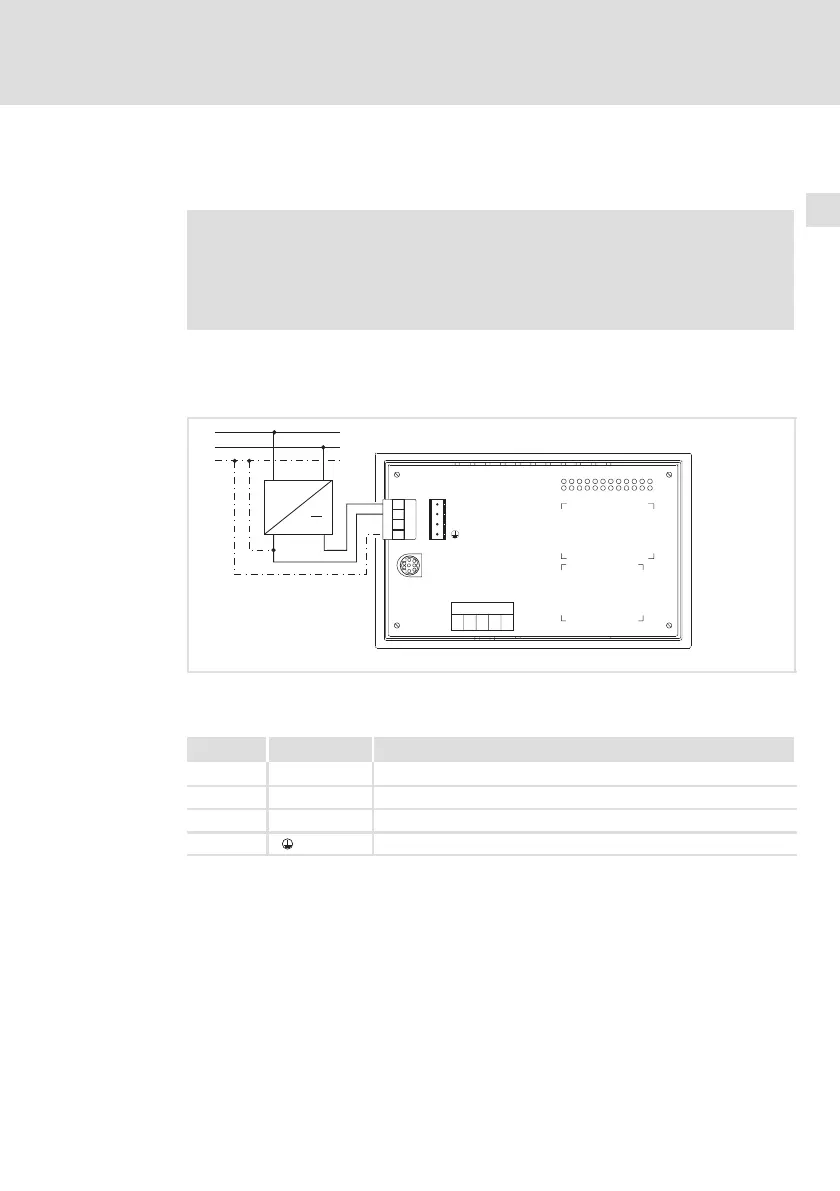

Fig. 4−1 Supply voltage connection
Terminal assignment
Terminal Identification Explanation
1 +24 VDC Supply voltage (DC +18 V ... 32 V)
2 0 VDC GND supply voltage, reference potential
3 n.c. Not connected
4 PE potential
