Leuze electronic webConfig tool – Extended configuration
Leuze electronic BPS 300i 59

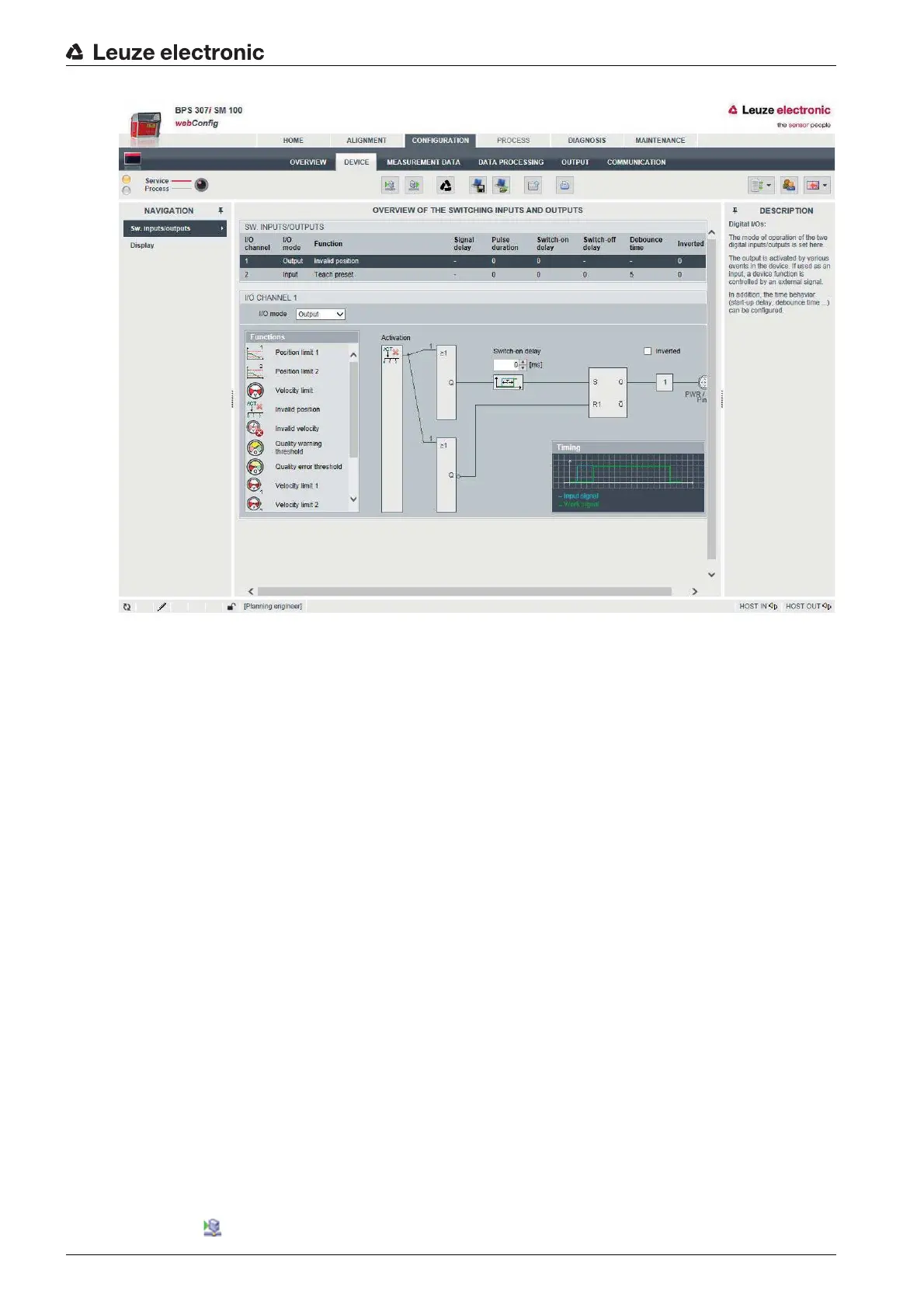

Figure 9.3: Configuration of the switching outputs
Possible signals via the switching outputs:
• Position limit 1/2
Signals a value above/below the position limit.
• Invalid position
Signals that no valid position can be ascertained.
• Velocity limit
Signals a value above/below the velocity limit.
• Velocity limit value 1-4
Signals that velocity limit value 1-4 has been exceeded or has not been met.
• Invalid velocity
Signals that no valid velocity can be ascertained.
• Quality warning threshold
Signals that the read quality is less than the warning threshold.
• Quality error threshold
Signals that the read quality is less than the error threshold.
• Device error
Signals a device error.
Configuring switching inputs
 Select the function of the switching input from the
Function list:
• No function
• Start/stop measurement
• Teach preset
• Reset preset
 Configure the timing; see chapter "Timing functions of the switching inputs/outputs".
 Save the configuration of the switching inputs in the device.
Click the symbol.
