Leuze electronic webConfig tool – Extended configuration
Leuze electronic BPS 300i 60

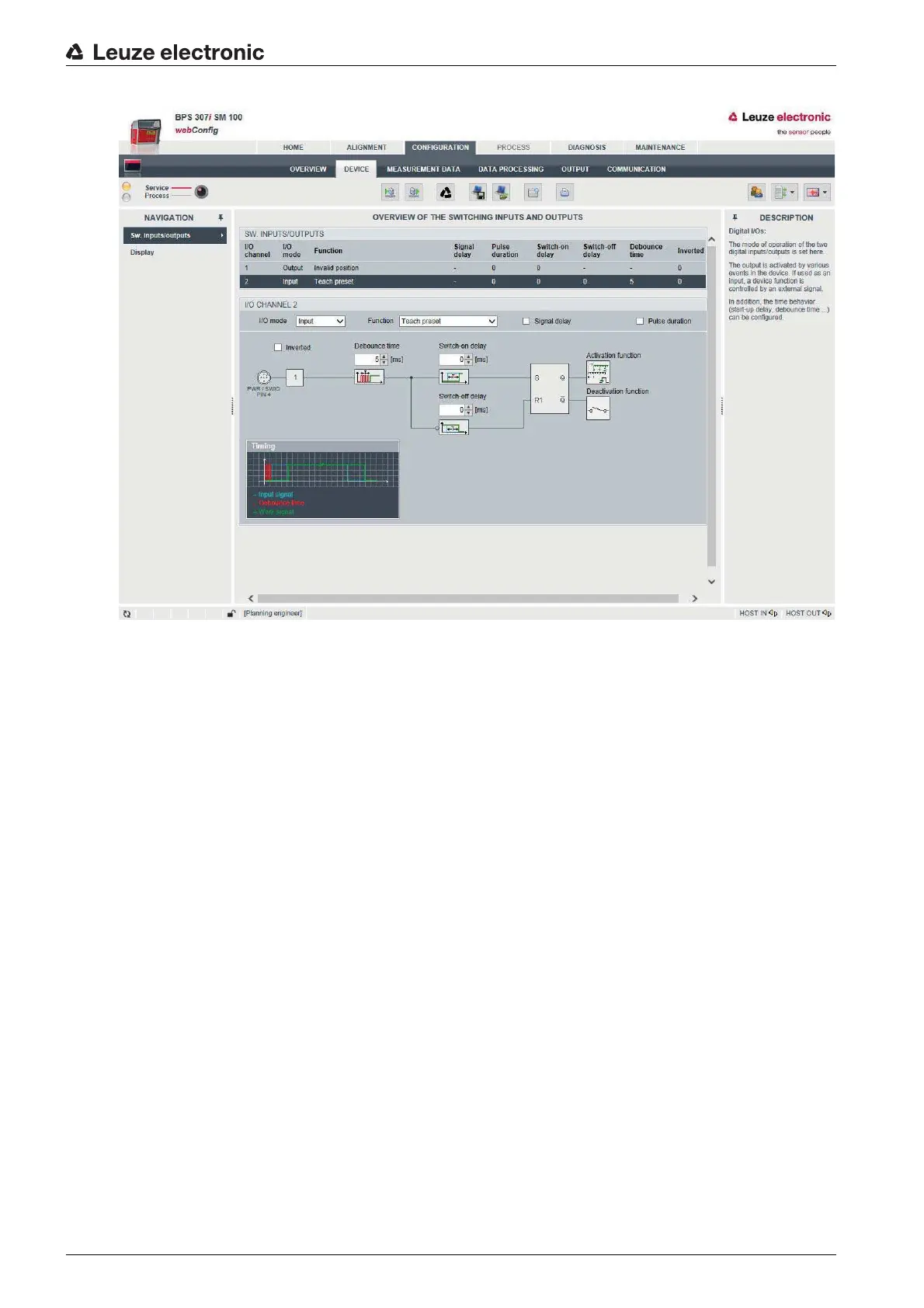

Figure 9.4: Configuration of the switching inputs
Timing functions of the switching inputs/outputs
The timing functions (e.g., start-up delay) can
only be configured with the webConfig tool.
• Start-up delay
With this setting, the output pulse is delayed by the specified time (in ms).
• Switch-on time
Defines the switch-on time period for the switching input. Any activated switch-off function then no
longer has any function.
If the output is deactivated via the switch-off signal before the start-up delay lapses, only a brief pulse
appears at the output following the start-up delay.
• Debounce time
Parameter for setting the software debounce time for the switching input. The definition of a
debounce time extends the signal transition time accordingly.
If this parameter has the value
0
, no debouncing takes place. Otherwise, the set value corresponds
to the time (in ms) that the input signal must be present and stable.
• Switch-off delay
This parameter specifies the duration of the switch-off delay (in ms).
Configuration of the bar code tape selection and tape value correction (
MEASUREMENT DATA
tab,
Bar
code tape
)
• Bar code tape with 30 mm grid or 40 mm grid
• Tape value correction
With this parameter, the deviation of the BCB from the correct millimeter scaling that arises from the
production process can be corrected.
