Installation
Leuze electronic GmbH + Co. KG BPS 37 22

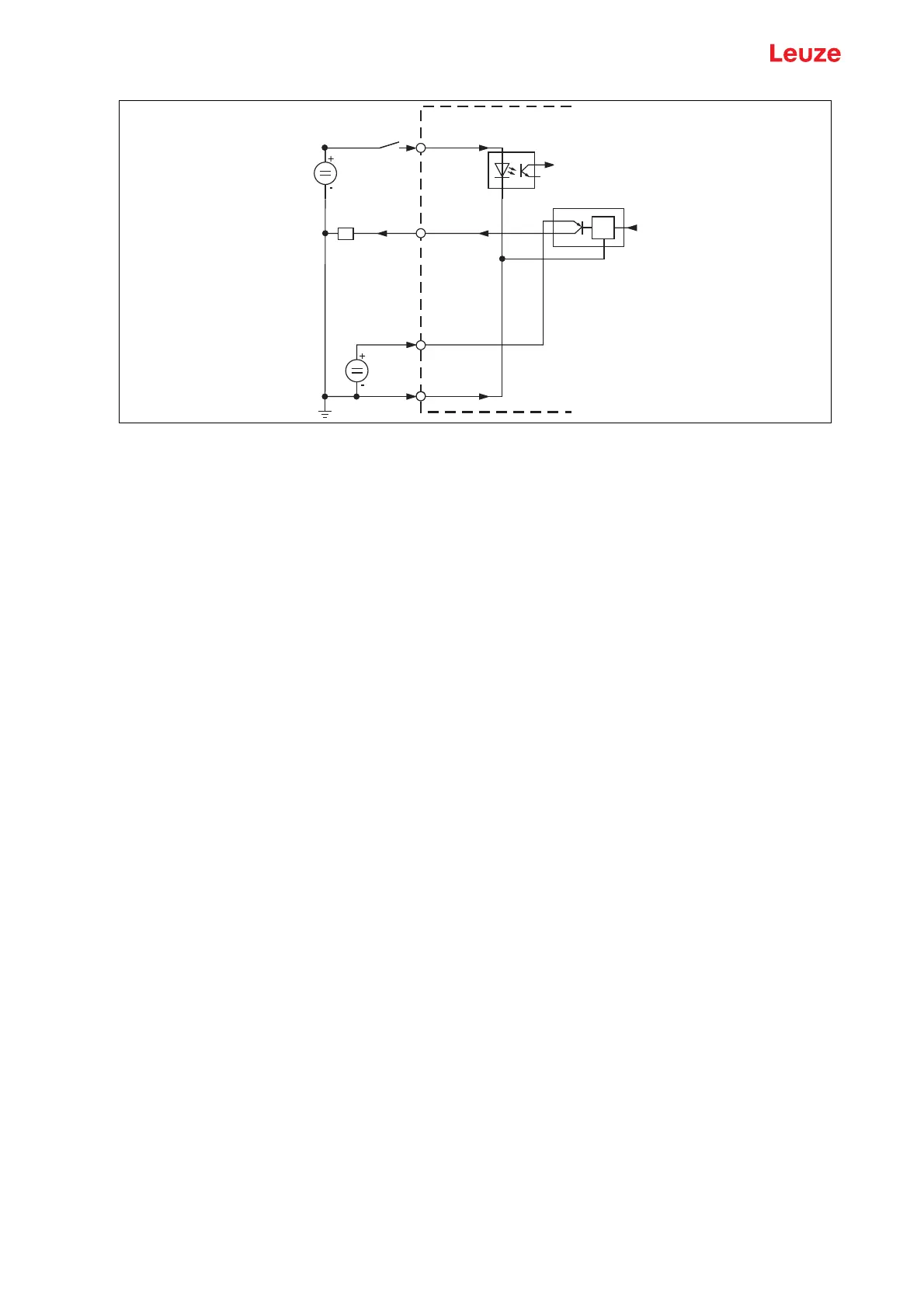

Figure 6.7: Connection diagram for switching input and switching output of the BPS 37
Switching input
In the standard setting you can use the switching input connection SWIN1 to reset the output of the position
measurement data to zero by applying a voltage of 12 … 30VDC between SWIN1 (pin 2) and GND
(pin 15).
Switching output
The switching output connection between SWOUT1 (pin 10) and GND (pin 15) is normally open. In the
standard setting, SWOUT1 is closed in the event of a positioning error.
You can configure the switching input and output according to your requirements, using the supplied
BPSConfig program.
6.3.4 Connection with MS 37 103 modular connector hood
The BPS 37 can be connected via the MS 37 103 using M12 connectors. For the locations of the individual
device connections, please refer to Figure 6.8.
10 … 30 V
DC
12 … 30 V DC
SWIN12
SWOUT110
GND15
VIN8
max. 100 mA
