Body and Paint
2
S023074 PA1
2020-05-12
21

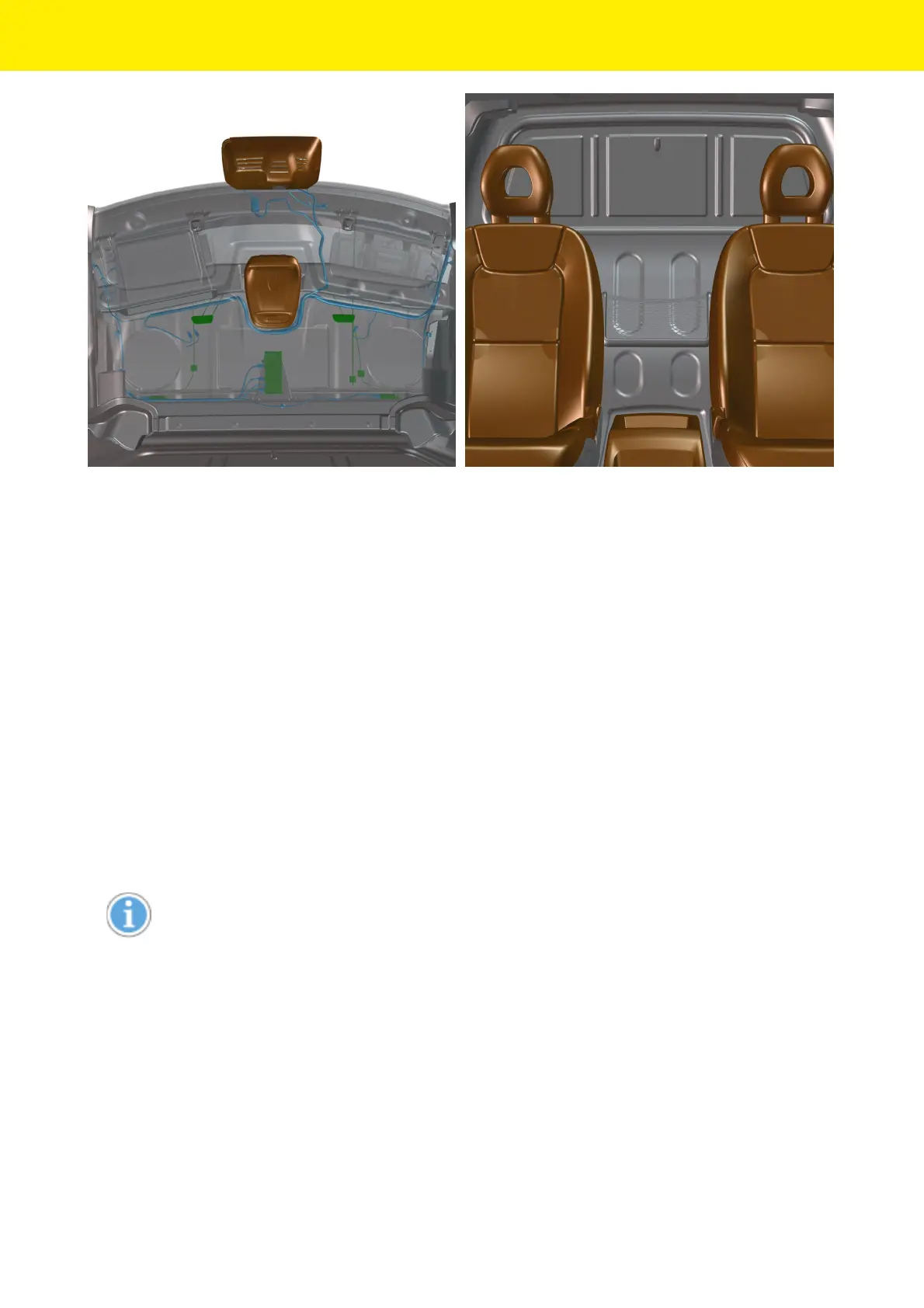

It is recommended to remove the headlining before drilling anywhere in the roof of the driver's
cabin to avoid damaging antennas and other modules.
The bulkhead divider is free of any electrical cables or modules. It is recommended that the
driver's and passenger's seats are moved forwards fully or removed from the vehicle, before
drilling the bulkhead.
Avoid drilling into the centre console from the load space compartment.
Load space floor
Under the load space floor there are High Voltage (HV) components, coolant hoses, the fuel
system and 12V electrical components. It is not recommended to drill into the load space floor
between the bulkhead A and the Electric Rear Axle Drive (ERAD) B. If you drill into the load
space floor you must know what is below the floor before you start work. It is recommended to
remove components for access to prevent damage to the vehicle. If you need to remove
components for access use the correct procedure from the workshop manual.
NOTE
For more information refer to Load space Floor,
page 27.
