Load space
Load space Floor
WARNING
The aluminium floor is very slippery when wet.
CAUTION
Before you drill into the vehicle, you must examine the Drill Zones,
page 20
document. This will help you to avoid damage to other components.
You must install a floor covering in the conversion if it is not supplied with the vehicle.
Install a solid floor covering and attach it to the floor fasteners. You can then attach additional
components to the floor covering. If you use this method you do not need to drill into the
aluminium floor structure.
Tie Downs / Floor Fasteners

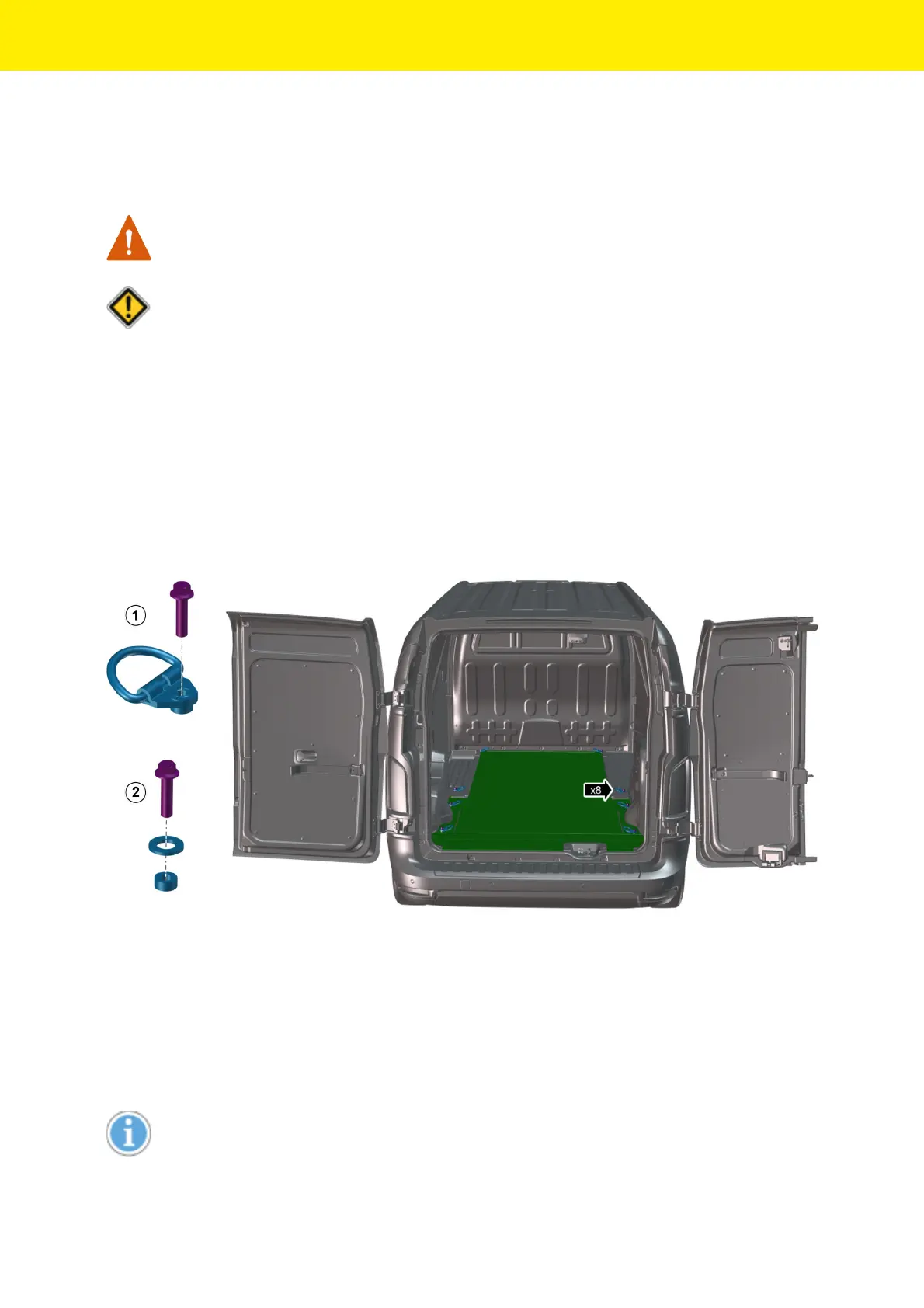

The vehicle has eight M10 female fasteners in the aluminium floor structure. You can use these
fasteners to attach components installed in the conversion. Use M10 fasteners and spacers 2 to
attach the floor covering to the aluminium structure. Tie downs (D-rings) 1 can be installed to
allow the operator to secure a load and the floor covering.
The maximum torque for each fastener is 45(Nm).
NOTE
For additional information or technical support contact Aftersales@LEVC.com.
