Electrical Connectors and Connections
Connectors
WARNING
Do not use electrical connectors that cut through the insulation on the wire.
Assemble the electrical connectors with the female terminals attached to the wiring harness.
Attach the male terminals to the component side of the connection. Do not install power
terminals near to ground terminals in a connector.

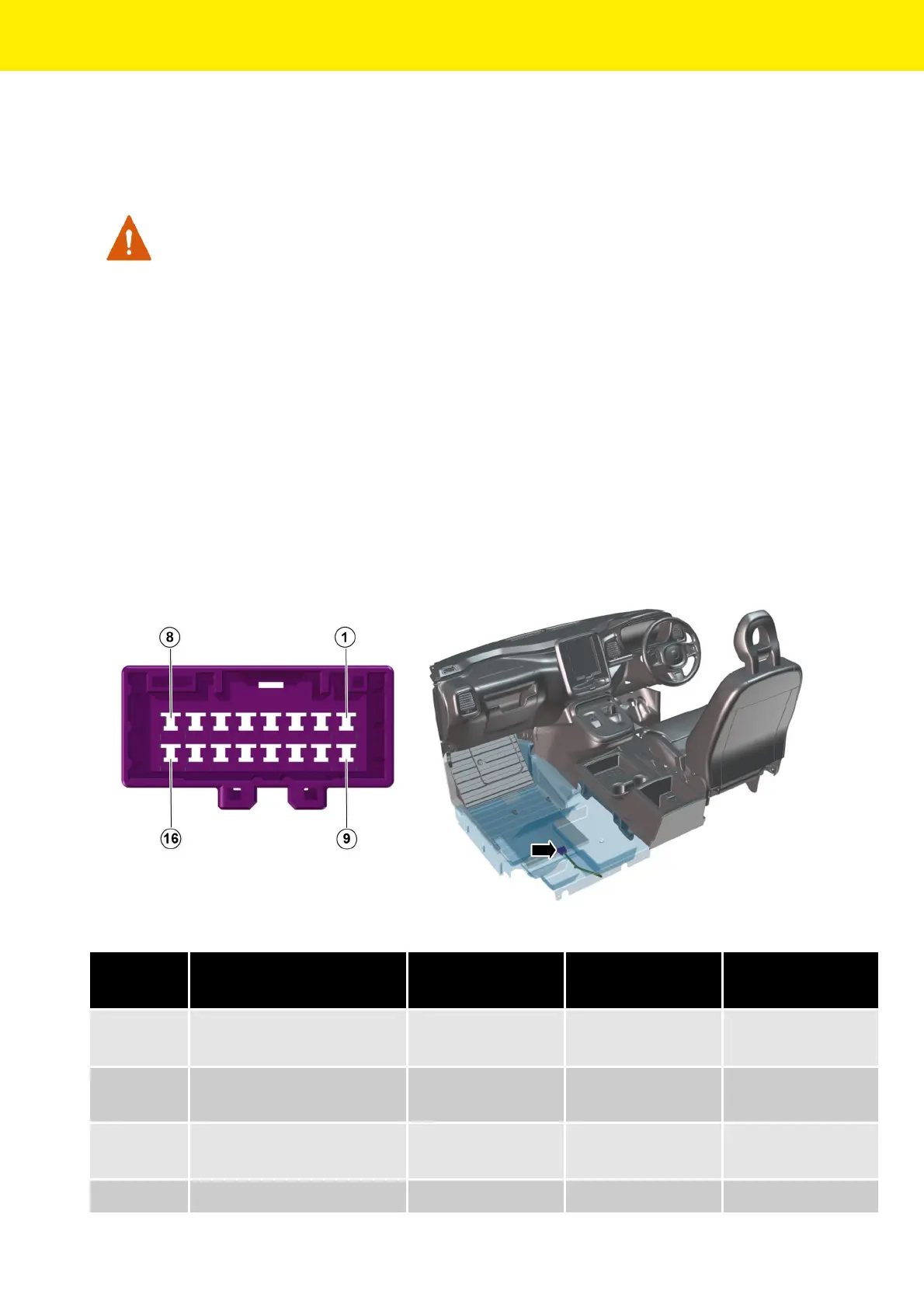

After Market In-line Connector
The after market in line connector lets you connect additional electrical equipment to the
vehicles wiring harness. The after market in line connector is attached to the floor, on the
opposite side of the vehicle to the drivers seat. If the vehicle has a passenger seat installed it is
necessary to remove this seat for access to the connector. For information on how to remove
the passenger seat or floor trim refer to the correct procedure in the workshop manual.
Pin
Number
Description Wire Colour Wire Size mm
2
Rating (Amps)
1 Power supply battery
saver
Blue / Violet 2.5 20
2 Power supply ignition
extended
Blue / Yellow 1.5 15
3 Vehicle speed output
2045PPM
Brown 0.35
4 Power supply permanent Red / Brown 0.35 5
