2
Body and Paint
26
PA1
2020-05-12

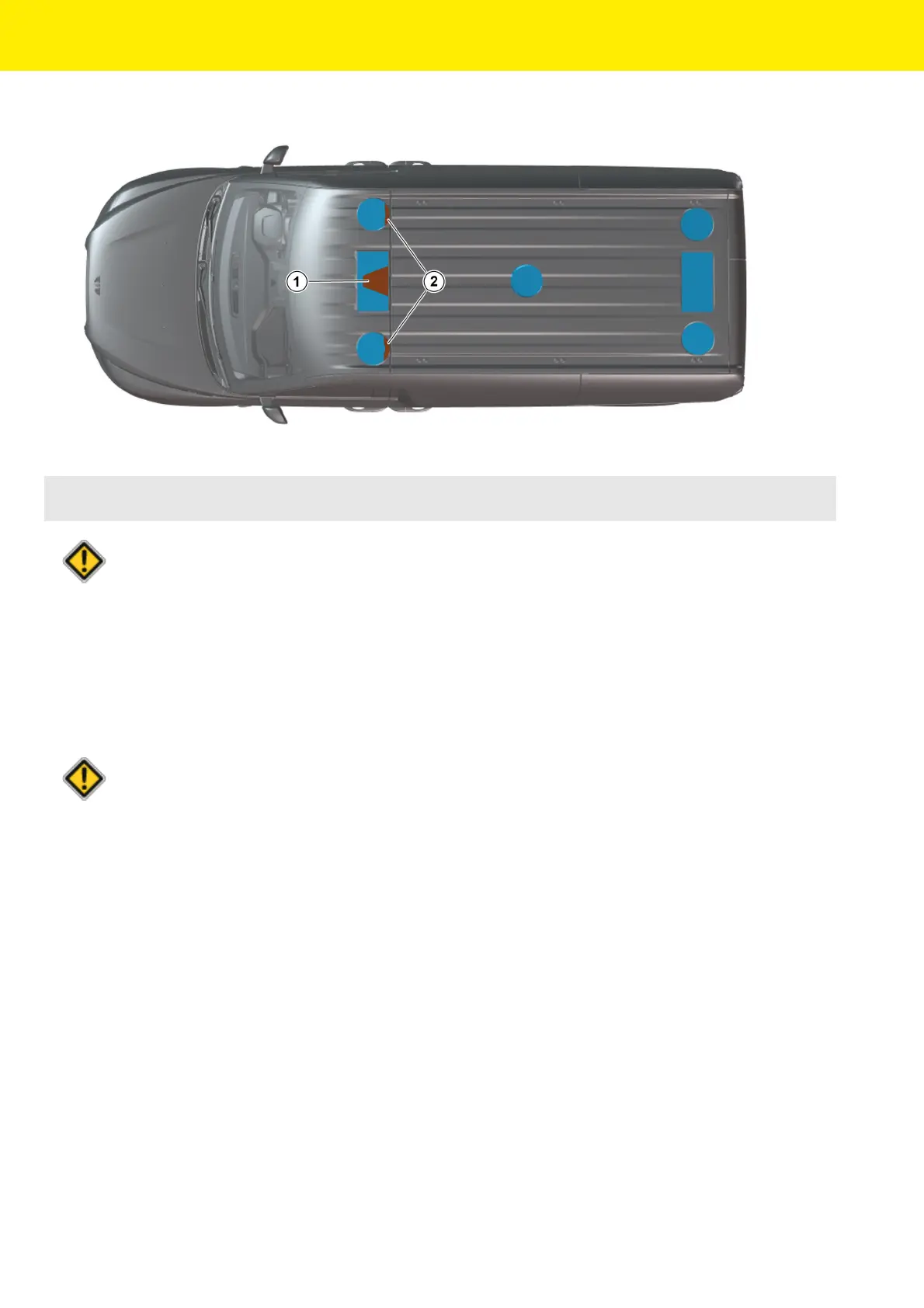

S023074
1 Multiband Antenna Module (MAM)
2 FM and DAB radio antenna
CAUTION
If you cut or drill into the front roof panel you must be careful to avoid the antennas. It
is recommended that you remove the headlining to do a visual inspection before you
start work above the passenger compartment. For more information refer to
Passenger Compartment,
page 20 and the workshop manual for the correct
procedure to remove the headlining.
Racking Systems
CAUTION
Before you drill into the vehicle, you must examine the Drill Zones,
page 20
document. This will help you to avoid damage to other components.
Racking systems can be fastened to the floor covering. This system removes the need to drill
into the aluminum floor structure, refer to Load space, page 27 for more information.
– Frames must be rigid structures attached to the floor of the vehicle.
– It is not recommended to drill through the aluminium floor structure.
– Do not attach racking to the lining panels. Always attach racking to the vehicle structure
behind the lining panels and use plates to spread the load.
– Its is recommended that racking systems have diagonal reinforcement. This makes the
structure rigid to prevent deformation in crash.
– It is recommended to install racking on both sides of the vehicle for equal weight distribution.
– Do not obstruct access to the fuse box and 12V battery installed on the right side of the
vehicle. Refer to Fuse Box and Battery Access panel, page 28 for more information.
