Body and Paint
2
S023074 PA1
2020-05-12
31

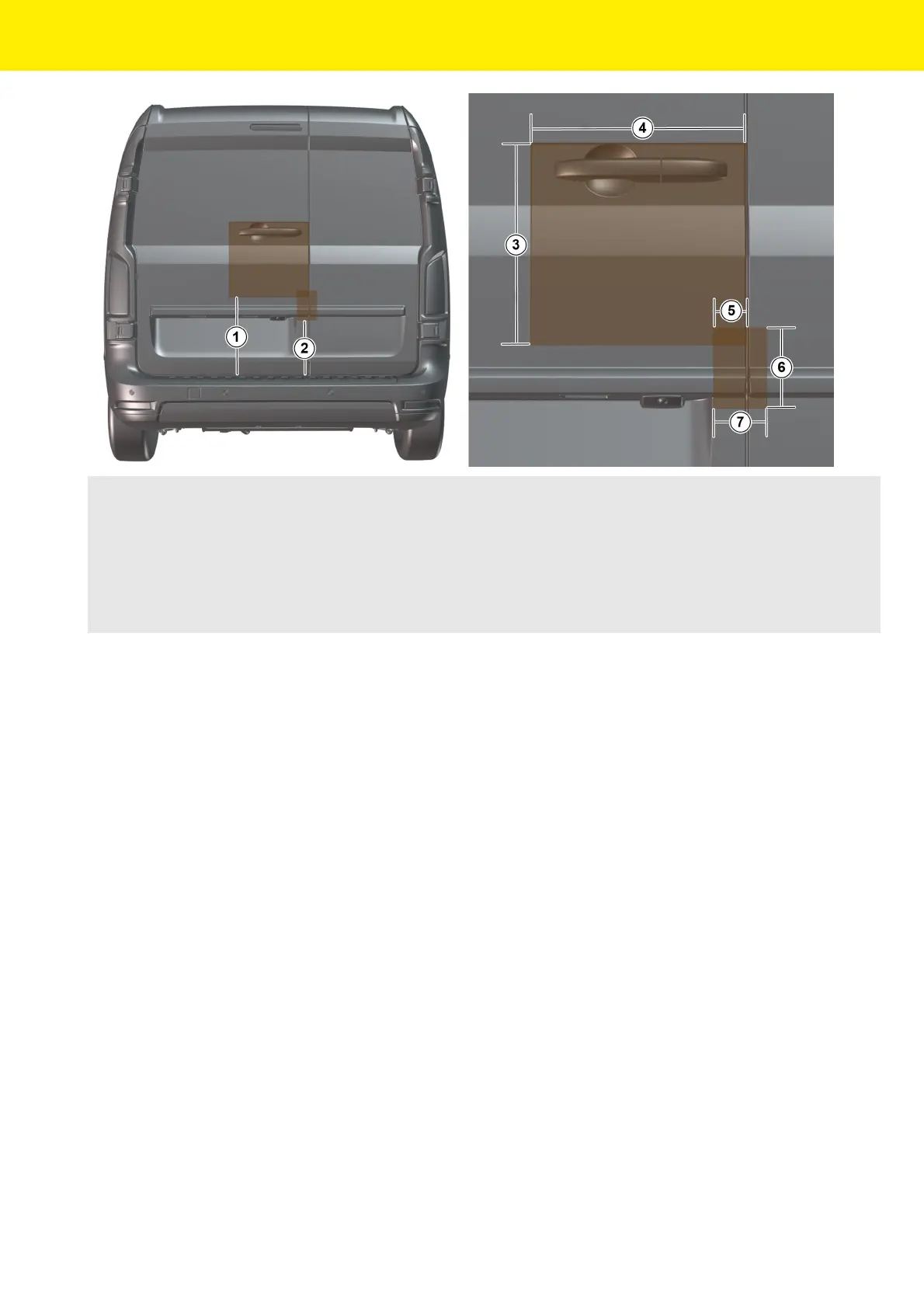

1 390 mm
2 275
3 375 mm
4 400 mm
5 60 mm
6 150 mm
7 100 mm
Interior Trim
Load Compartment Lining
The vehicle is available with plastic lining panels. The panels are attached with 6.5 mm x 16 mm
x 19 mm fir tree fasteners. Use nylon trim tools to remove these fasteners to prevent damage to
the vehicle.
Plywood Lining/Cladding
– Lining / cladding materials should be water resistant.
– Panels must have smooth edges.
– Panels must be pre drilled to align with existing fastener locations.
– The recommended thickness for plywood panels is 4.3 mm.
– The recommended thickness for a plywood floor covering is 10.5 mm.
– Do not drill through the floor covering into the vehicle, refer to Load space Floor, page 27.
– Attach the floor covering to the existing fasteners in the floor. Refer to Tie Downs / Floor
Fasteners, page 27.
– Install aluminium edge strips to protect the edges of the plywood floor covering.
Passenger compartment
If it is necessary to remove interior trim from from the passenger compartment use the correct
procedure in the workshop manual.
