1 Drivers airbag, attached to the center of the steering wheel.
2 Passenger airbag, attached to the instrument panel frame.
3 Curtain airbags, attached to the roof between the A and B pillars.
4 Seat air bags, attached to the outboard side of the backrest.
5 Seat belt pre-tensioners, attached to the outboard side of the seat base.

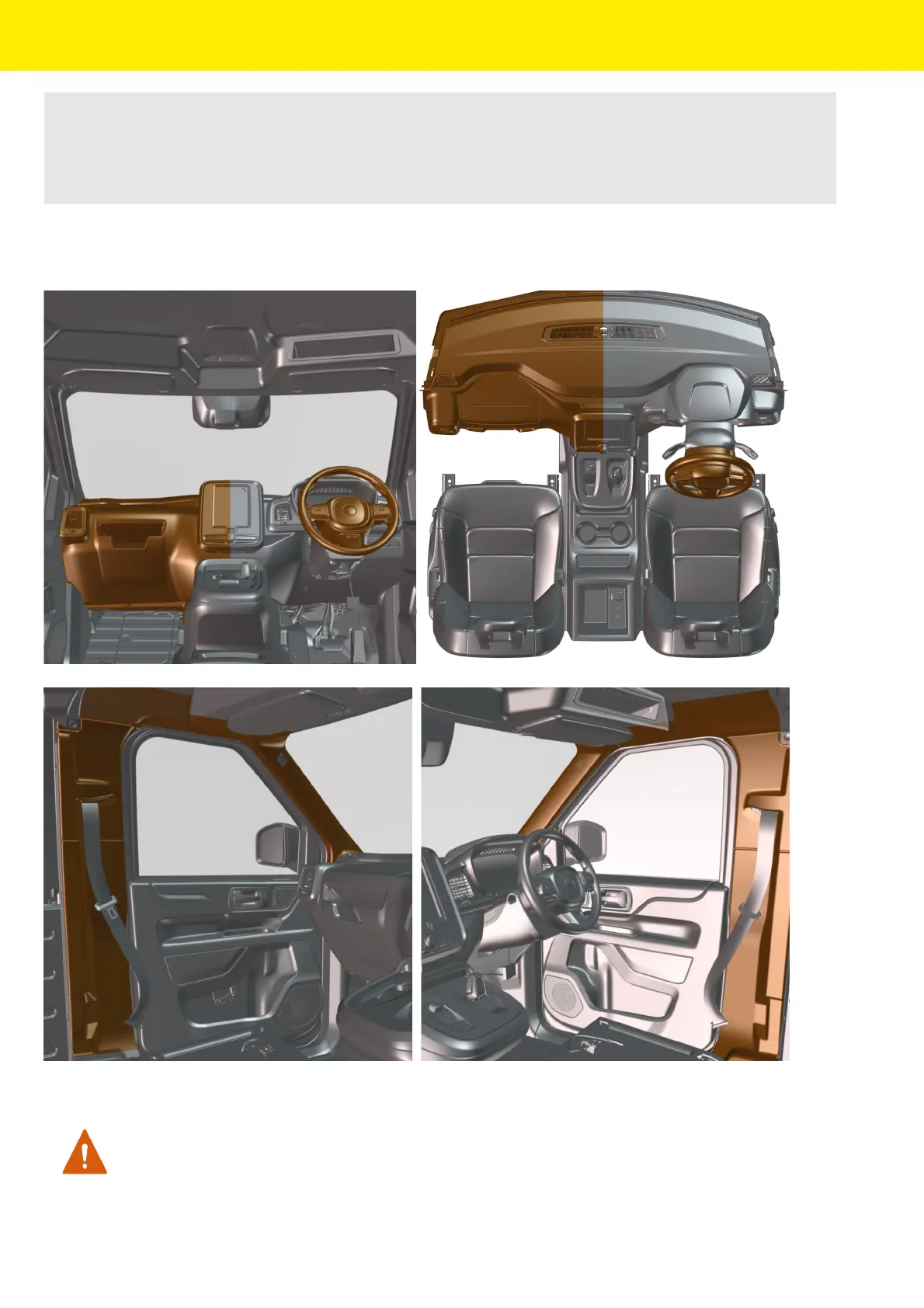

Do not attach equipment or accessories to the areas shown in orange below. See Drill Zones,
page 20 for more information on other precautionary drill zones.
Impact Sensors and Supplementary Restraint System (SRS) control module
WARNING
Do not install additional material near the impact sensors. If the area near the
sensor is reinforced the SRS system will not function correctly if deployed.
