5
2. Introduction of IP Camera
This chapter will provide the camera dimensions for reference before installation.
Definition of each connector on the camera’s rear board will also be specified.

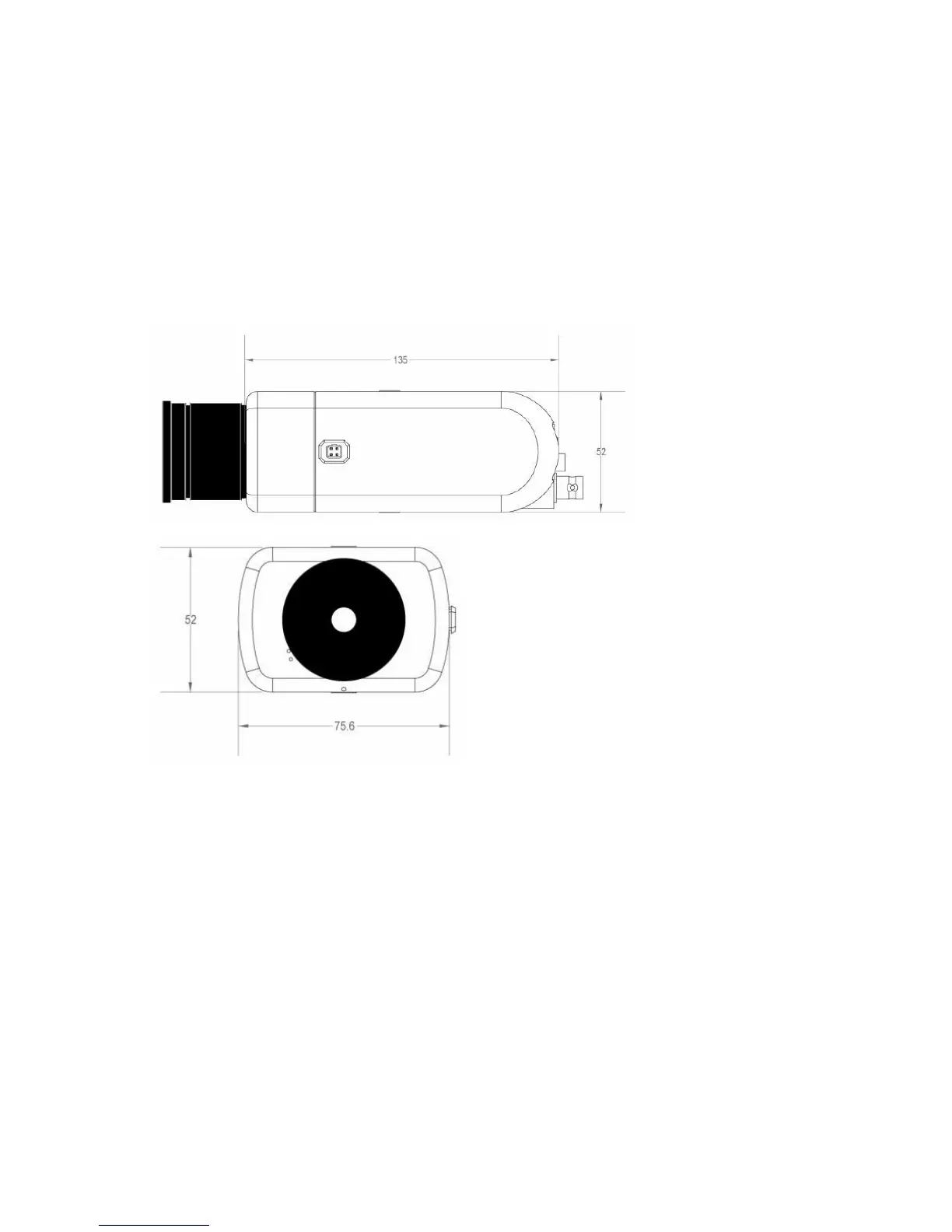

2.1 Camera Dimensions
The IP Camera’s dimensions are as shown below:
