4.4.3 Video OCX Protocol
In the Video OCX protocol setting page, users can select RTP over UDP, RTP
over TCP, RTSP over HTTP or MJPEG over HTTP, for streaming media over
the network. In the case of multicast networking, users can select the Multicast

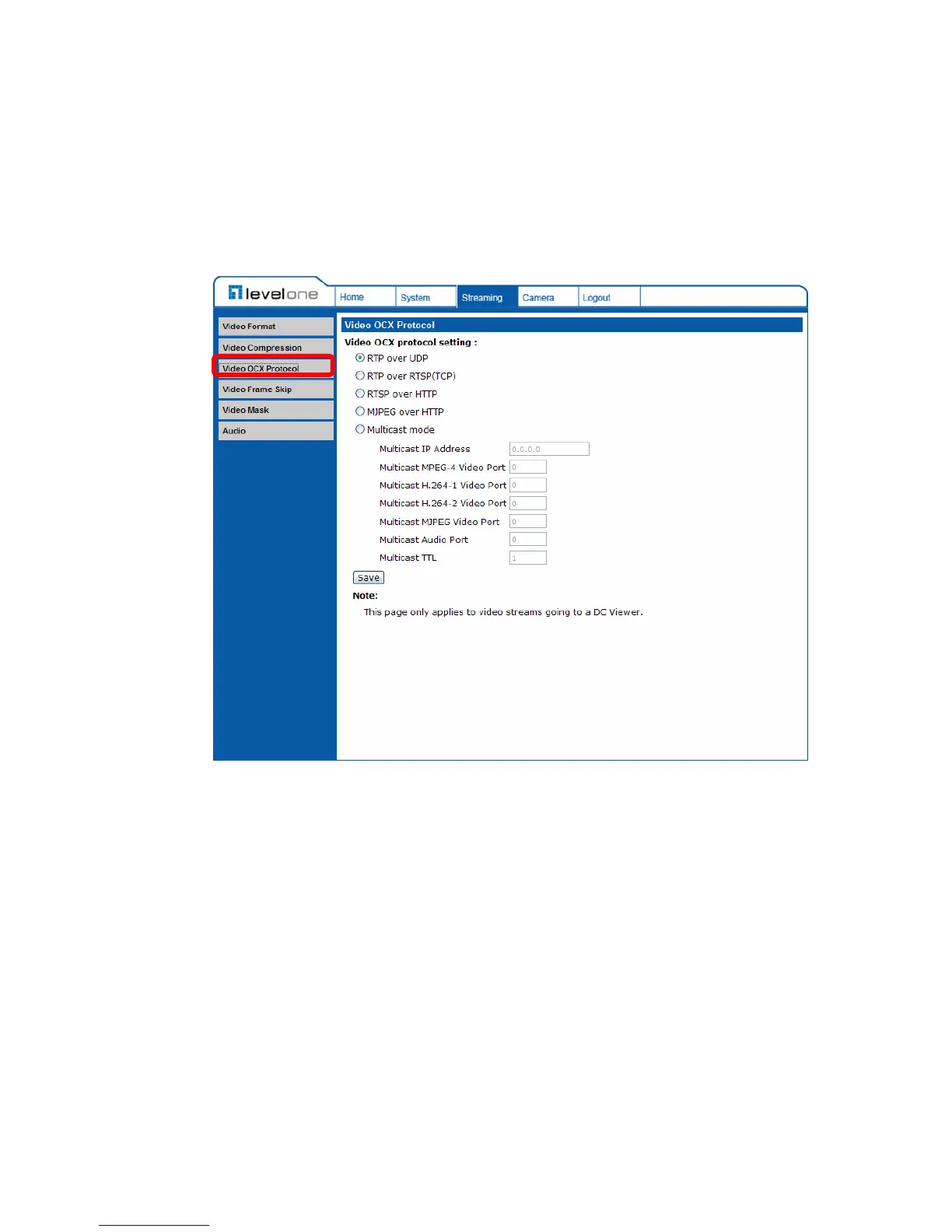

mode. The page is shown as follows.
Video OCX protocol setting options include:
• RTP over UDP / RTP over RTSP(TCP) / RTSP over HTTP / MJPEG
over HTTP
Select a mode according to your data delivery requirements.
• Multicast Mode
Enter all required data, including multicast IP address, MPEG-4 video
port, H.264 video port, MJPEG video port, audio port and TTL into each
blank.
Click “Save” to confirm the setting.
