User Manual of Network Camera
120

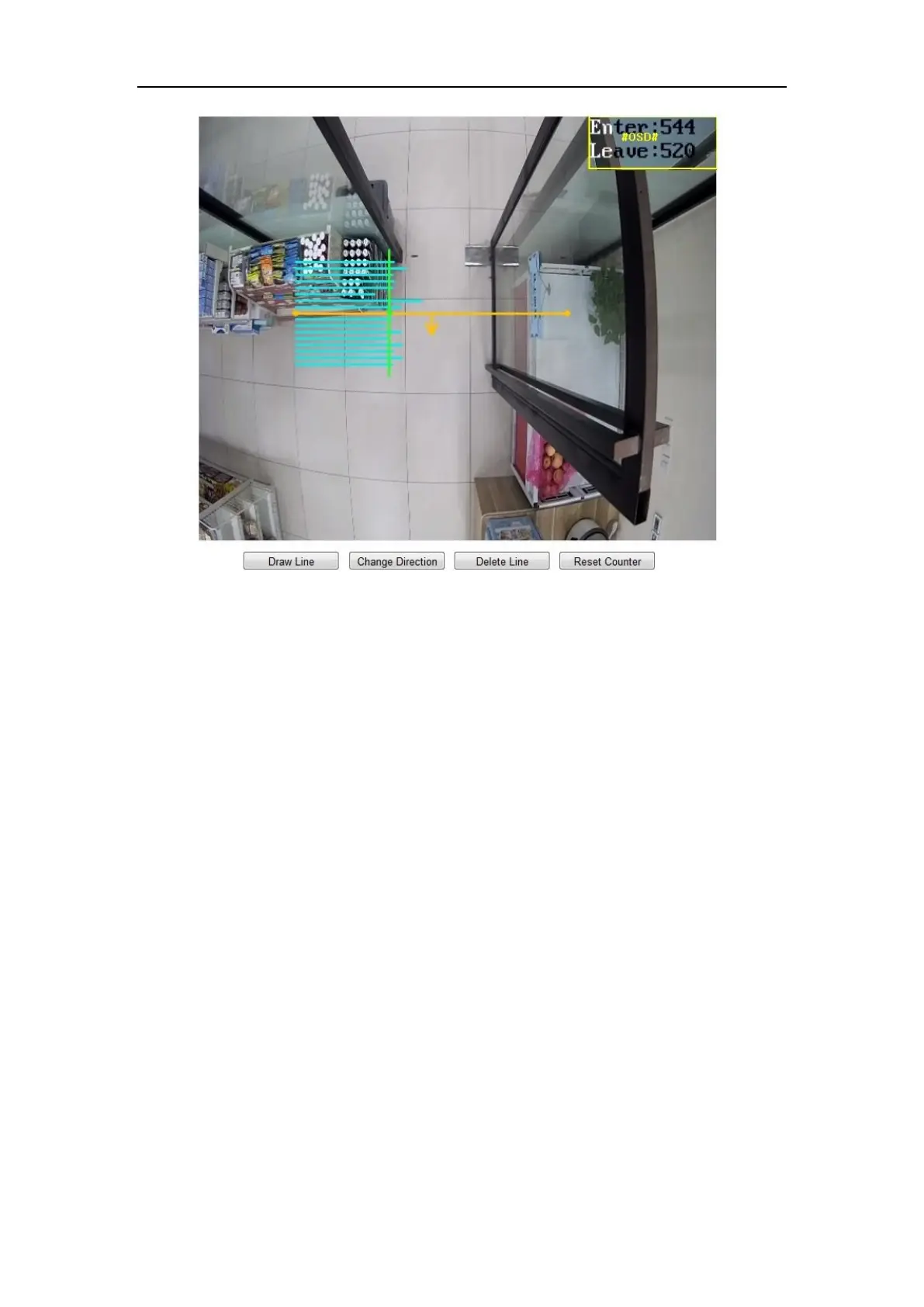

Figure 6-72 People Counting Configuration
2. Select People Counting Configuration tab to set the detailed parameters.
3. Check the checkbox of Enable Counting to enable the function.
4. (Optional) Check the checkbox of Enable OSD Overlay, and the real-time
number of object entered and exited is displayed on the live video.
You can also adjust the OSD position according to the actual needs.
5. Set the detection line.
An orange line, called detection line can be set on the live video, and the
object entering or exiting through the line will be detected and counted.
1) Click Draw Line, and an orange detection line will appear on the image.
Note:
⚫ The detection line should be drawn at the position right below the
camera, and it should cover the whole entrance / exit.
⚫ Draw the detection line at the position don’t have many people
lingering.
2) Click-and-drag the detection line to adjust its position.
3) Click-and-drag the two end points of the detection line to adjust its length.
4) To delete the detection line, click the Delete Line button.
6. Check the checkbox of Enable Calibration to enable camera calibration.
