User Manual of Network Camera
80

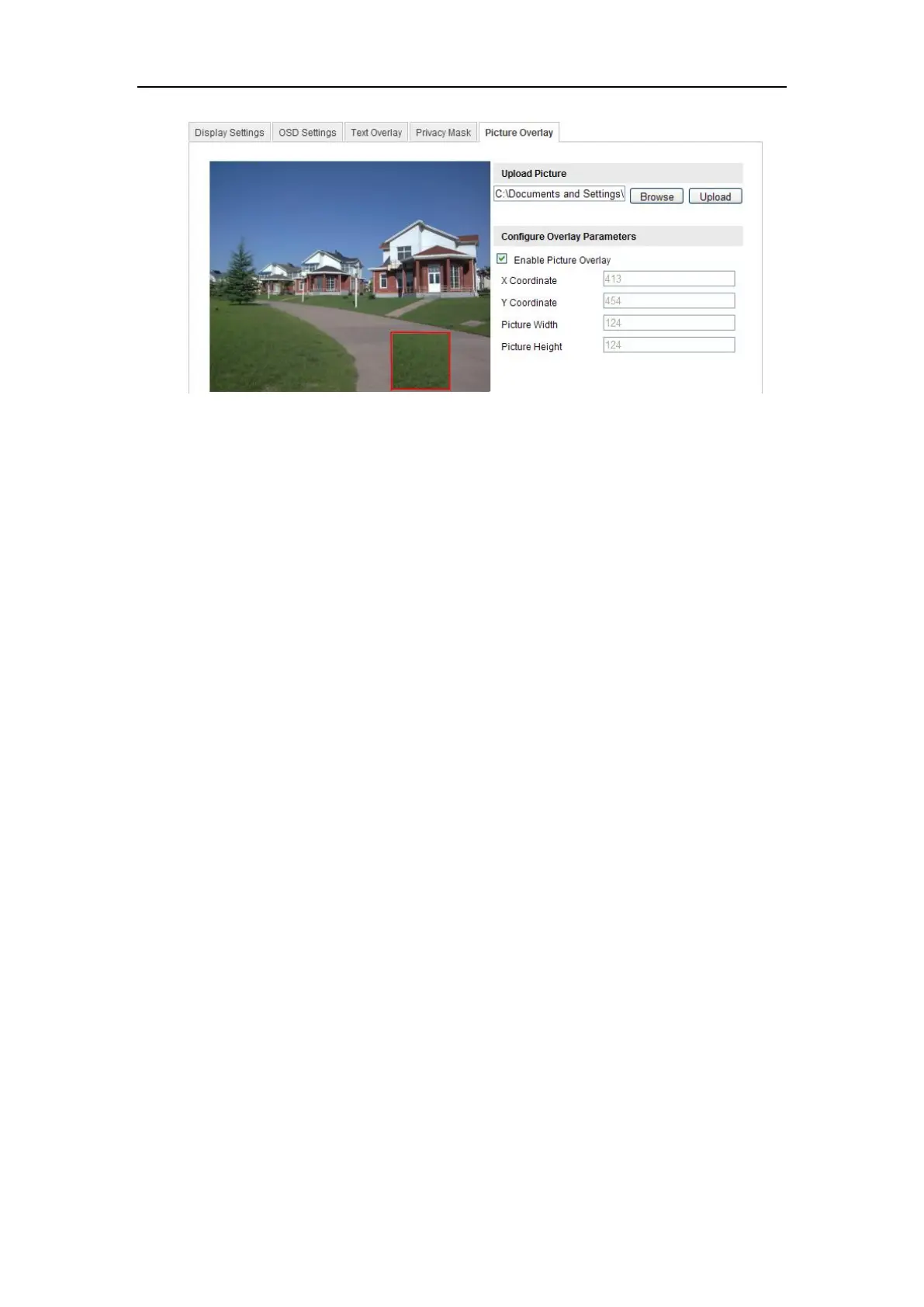

Figure 6-41 Picture Overlay
2. Click Browse to select a picture.
3. Click Upload to upload it.
4. Check Enable Picture Overlay checkbox to enable the function.
X Coordinate and Y Coordinate values are for the location of the picture on the image.
And the Picture width and height shows the size of the picture.
6.6 Configuring and Handling Basic Events
This section explains how to configure the network camera to respond to basic events,
including motion detection, video tampering, alarm input, alarm output, and exception.
These events can trigger the linkage methods, such as Notify Surveillance Center,
Send Email, Trigger Alarm Output, etc.
Note:
Check the checkbox of Notify Surveillance Center if you want the alarm information
to be pushed to PC or mobile client software as soon as the alarm is triggered.
6.6.1 Configuring Motion Detection
Purpose:
Motion detection detects the moving objects in the configured surveillance area, and a
series of actions can be taken when the alarm is triggered..
In order to detect the moving objects accurately and reduce the false alarm rate,
