W
EB
C
ONFIGURATION
5-25
switch, which means they will not reach the mirror port or their
intended destination port. Input rate-limiting in conjunction with
port flow-control should be used to ensure that the total ingress
bandwidth never exceeds the egress bandwidth.
Web – Click PORTS, Port Mirroring.

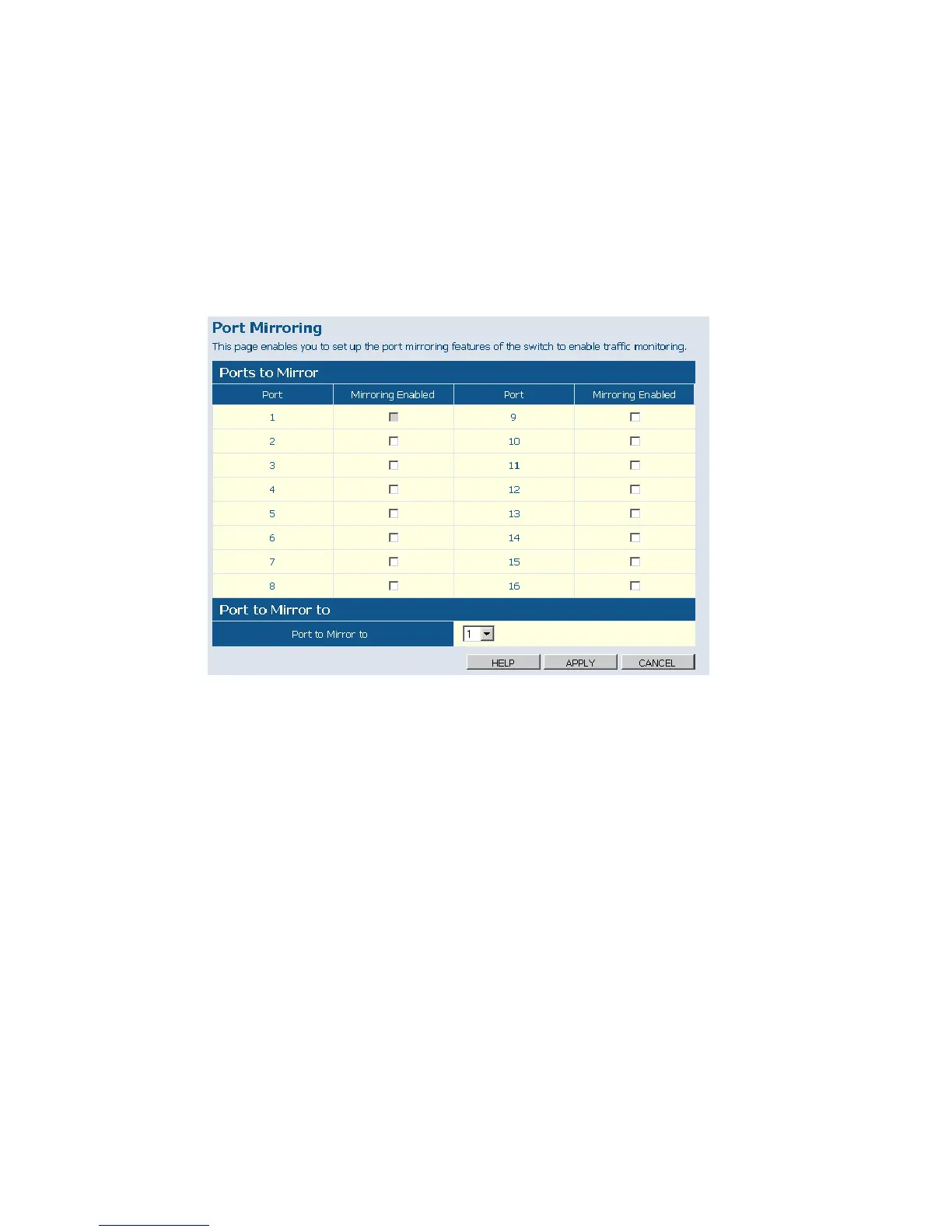

Figure 5-17 Port Mirroring
Cable Diagnostic
You can perform cable diagnostics for all ports or selected ports to
diagnose any cable faults (short, open etc..) and feedback a distance to the
fault.
Field Attributes
•Cable Diagnostics – Cable diagnostics is performed on a per-port
basis. Select the port number from the drop-down list.
