Physical Details
Front-mounted LEDs

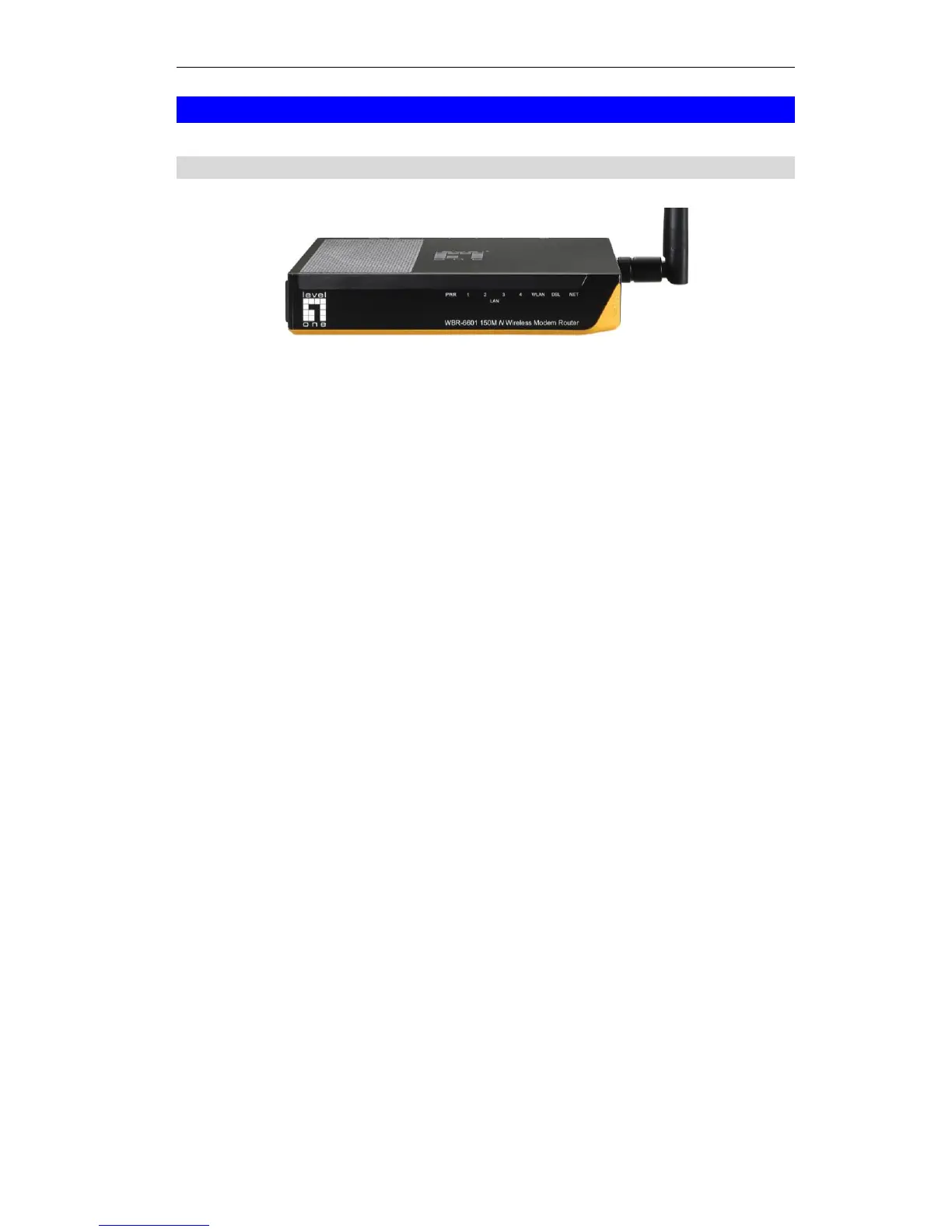

Figure 2: Front Panel
Power LED
(Orange)
On - Power on.
Off - No power.
LAN (Blue)
On - The LAN port is active.
Off - No active connection on the LAN (Ethernet) port.
Flashing - Data is being transmitted or received via the corresponding
LAN port.
WLAN (Blue)
On - Wireless enabled.
Off - Wireless disabled.
Flashing - Data is being transmitted or received via the Wireless access
point. This includes "network traffic" as well as user data.
ADSL
(Green)
On - ADSL connection established.
Off - No ADSL connection currently exists.
Flashing - ADSL is synchronizing.
Internet
(Blue/Yellow)
On (Blue) - Internet connection is available.
Off - No Internet connection available.
Flashing (Blue) - Data is being transmitted or received via the ADSL
connection.
