Chapter 5
Operation and Status
This Chapter details the operation of the Wireless ADSL Router and the status
screens. For Details of operation in Bridge (Modem) mode, see Chapter 8 -
Modem Mode.
Operation - Router Mode
Once both the Wireless ADSL Router and the PCs are configured, operation is automatic.
However, there are some situations where additional Internet configuration may be required.
Refer to Chapter 6 - Advanced Features for further details.
Status Screen
Use the Status link on the main menu to view this screen.

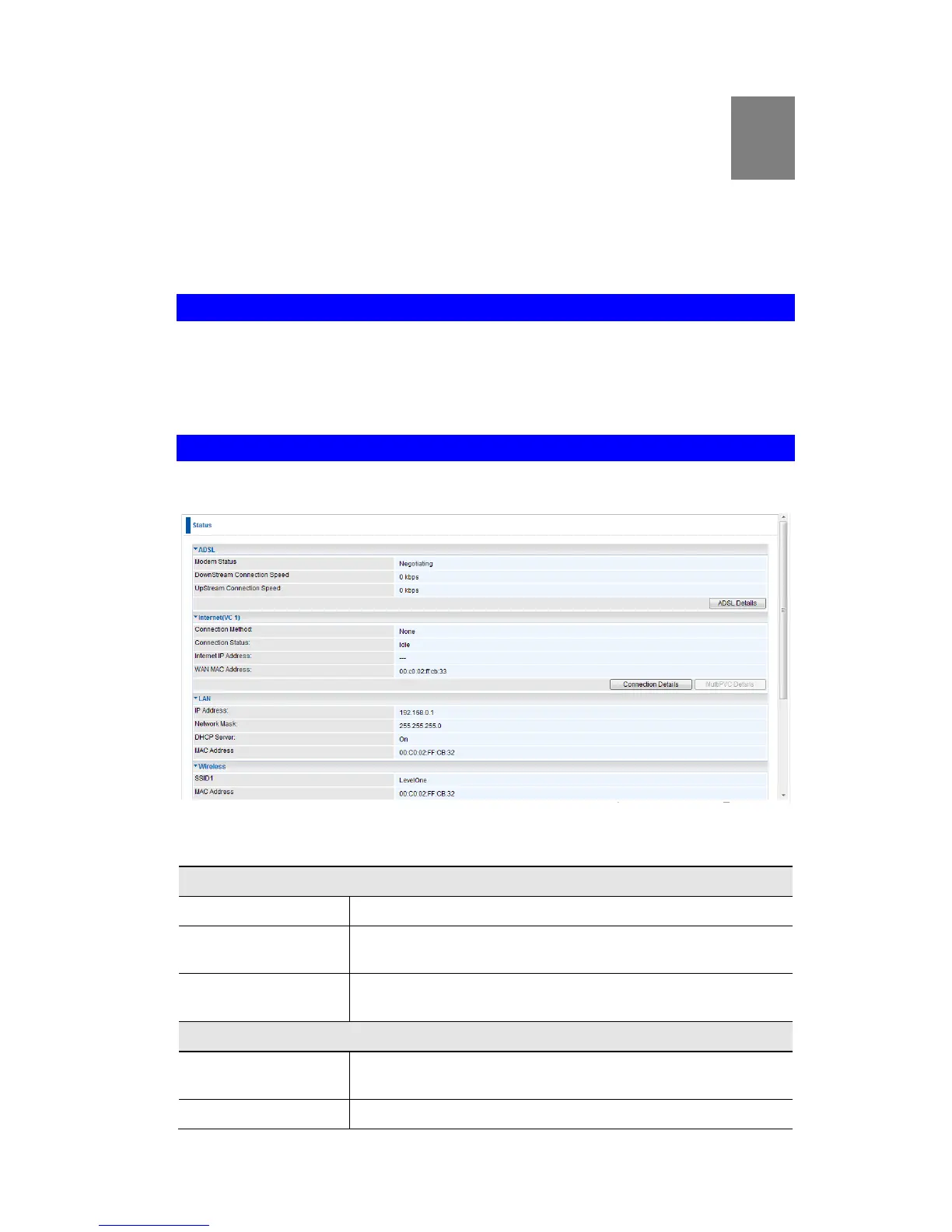

Figure 47: Status Screen
Data - Status Screen
ADSL
Modem Status
This indicates the status of the ADSL modem component.
DownStream
Connection Speed
Displays the speed for the DownStream Connection.
UpStream Connection
Speed
If connected, displays the speed for the Up Stream (upload)
ADSL Connection.
Internet
Connection Method
Displays the current connection method, as set in the Setup
Wizard.
Connection Status
This indicates the current status of the Internet Connection
