Copper Cable Terms and Types

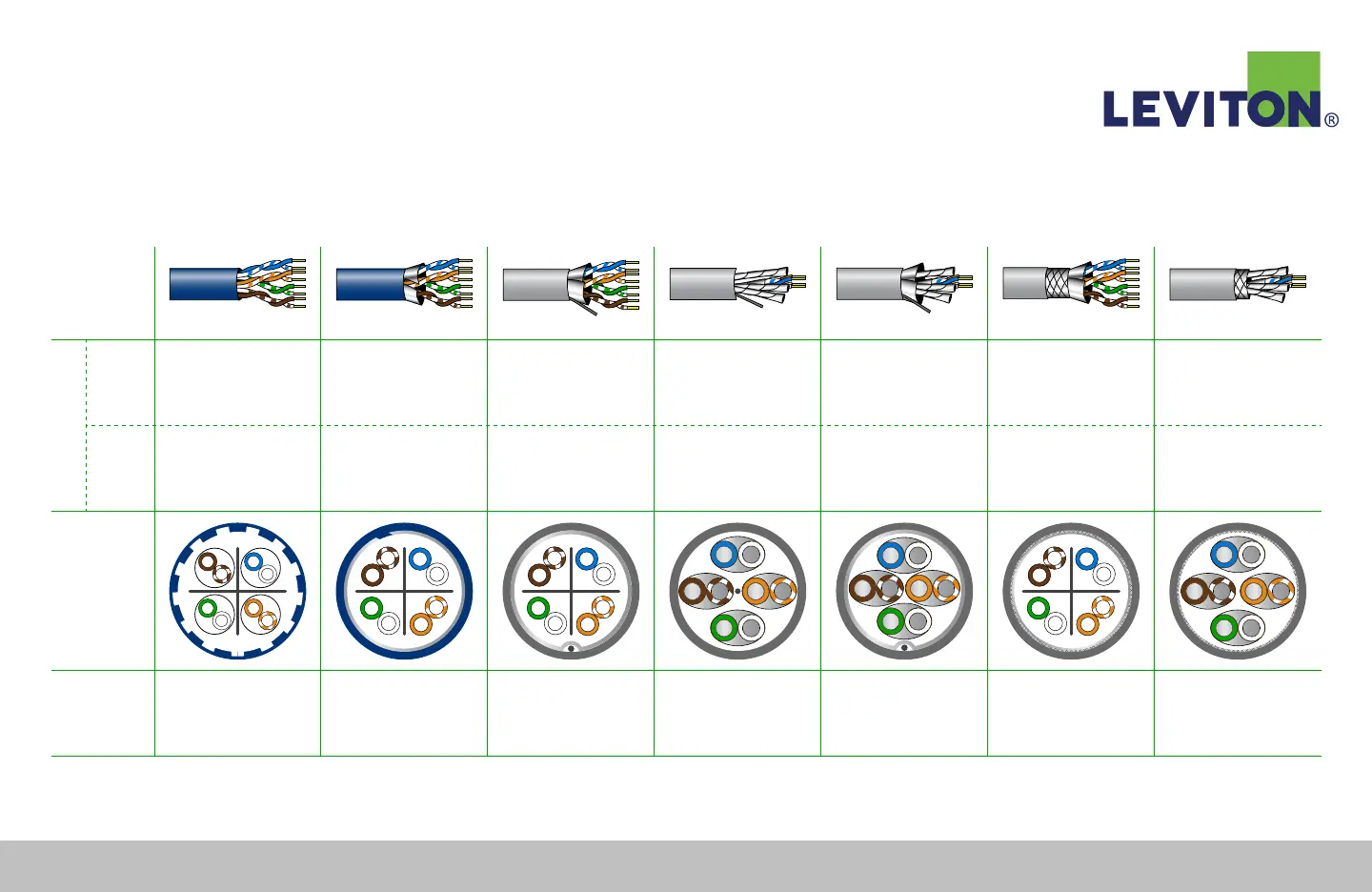

U / UTP U / UTP F / UTP U / FTP F / FTP SF / UTP S / FTP
Physical Description
Cable Unshielded
Unshielded
with isolation wrap
Foil shielded
with drain wire
Unshielded
Foil shielded
with drain wire
Foil and
braid shielded
Braid shielded
Pairs Unshielded Unshielded Unshielded Foil shielded Foil shielded Unshielded Foil shielded
Cross
Section
Typical
Size
0.30 - 0.32 in
(8 mm)
0.265 - 0.30 in
(7 - 8 mm)
0.29 - 0.30 in
(7 - 8 mm)
0.267 - 0.283 in
(7.4 - 8.3 mm)
0.279 - 0.295 in
(7 - 8 mm)
0.29 - 0.325 in
(7.4 - 8.3 mm)
0.232 - 0.315 in
( 7 mm)
