Leviton Cat 6A - 5.2 - Patch Panels

Patch Panels
PATCH PANEL OPTION
TYPE
1RU
24 PORT
1RU
48 PORT
2RU
48 PORT
2RU
72 PORT
CASSETTE
e2XHD
Flat* — E2X1F-S48 — — E2XHD-BRK
Angled* — E2X1A-S48 — — E2XHD-BRK
Composite Flat* — — C1255-H48 — —
QuickPort
®
Flat, kitted
with connectors^
6910G-U24 — 6910G-U48 — —
Flat* 49255-H24 49255-Q48 49255-H48 49255-D72 —
Flat, shielded
‡
4S255-S24 4S255-D48 4S255-S48 — —
Flat with magnifying
lens holder*
49255-L24 — 49255-L48 — —
Angled* 49256-H24 49256-D48 49256-H48 49256-D72 —
Angled, shielded
‡
4S256-S24 4S256-D48 4S256-S48 — —
Recessed-Flat* 49255-R24 — 49255-R48 — —
Recessed-Angled* 4W256-H24 — 4W256-H48 — —
110-Style
Flat 6A586-U24 — 6A586-U48 — —
Angled 6A587-U24 — 6A587-U48 — —
* Sold empty, load with any Atlas-X1™ or eXtreme
®
QuickPort connectors
^ Kitted with eXtreme connectors
‡
Sold empty, load with Atlas-X1 shielded connectors
e2XHD — Simple termination and improved cable routing. Cassettes
quickly snap in and pull out of high-density panels, making installation
and maintenance easier than ever. Panel covers and cassette blanks
oer extra protection against dust and damage.
Composite — Combines strength and durability with a sleek look.
The unique style and customizable face make it ideal for showcase
environments, and provide a uniform appearance when installed with
Versi-duct
®
Cable Managers. The panel is 100% recyclable and made
in the United States.
QuickPort — Wide selection of panels allows you to create the
perfect mix of voice, data, video, and audio, all in a single panel.
110-Style — Ideal for modular cross connection and available in a
multitude of port densities to meet the needs of high-speed data
applications. Craft-friendly 110 punchdowns on the rear of the panel
make installations fast and easy.

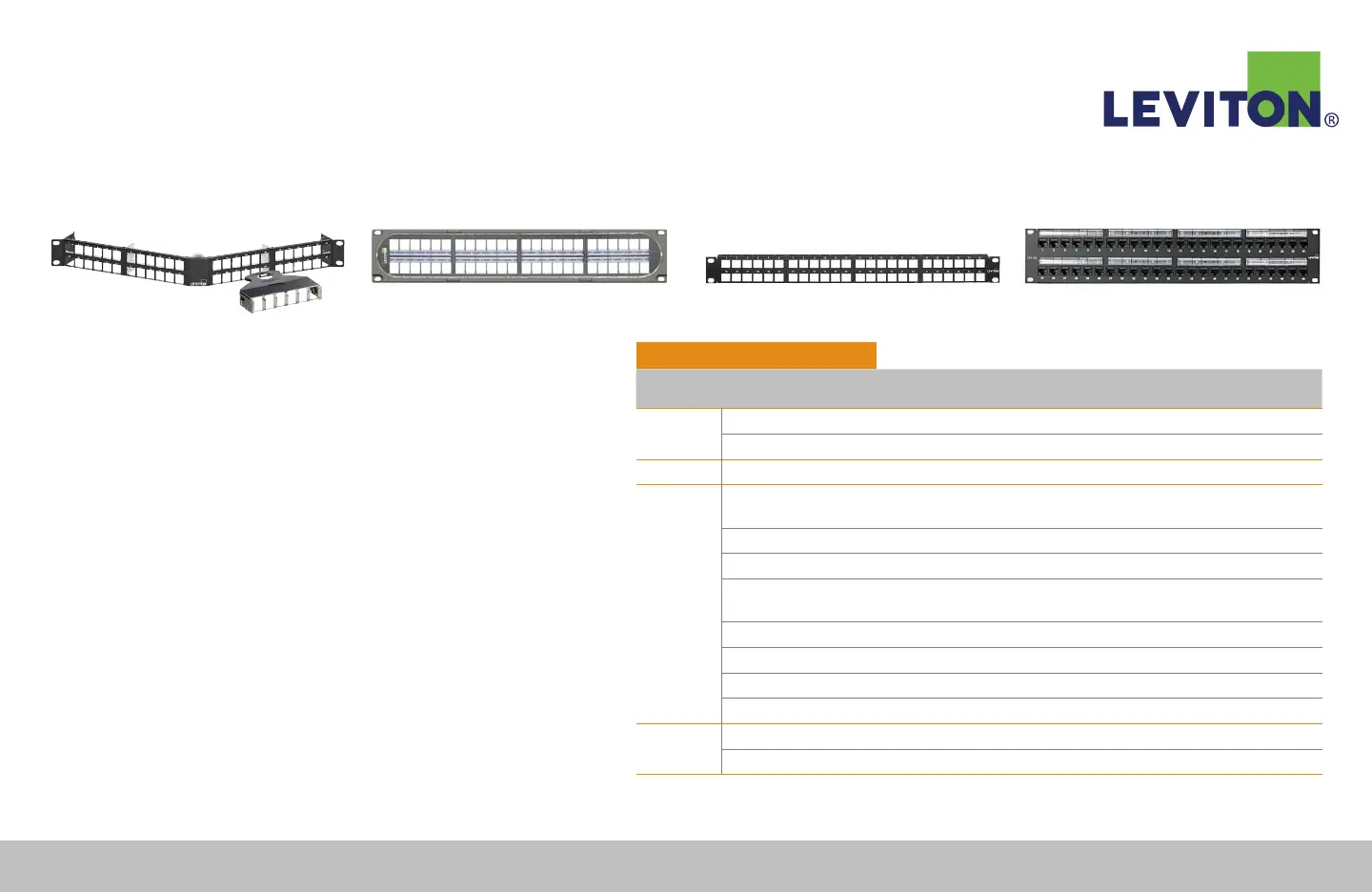

e2XHD Composite QuickPort 110-Style
