Leviton Cat 6A - 5.6.3 - QuickPort Surface-Mount Boxes

QuickPort
®
Surface-Mount Boxes
Surface-Mount QuickPort Boxes are easily field-configured with QuickPort Connectors. All boxes can be
mounted with screws or adhesive mounting tape (both provided) or with magnets or modular furniture
brackets (sold separately). One-, two-, and four-port surface-mount boxes are plenum rated. Extended
depth 4S089 boxes are best suited for use with Cat 6A cable.
SURFACE-MOUNT BOX OPTIONS
DESCRIPTION WHITE IVORY
LIGHT
ALMOND
GREY BLACK
Standard
12-Port, 7.60" W x 5.02" D x 1.13" H
(193 mm W x 128 mm D x 29 mm H)
41089-12W 41089-12I — 41089-12G 41089-12E
6-Port, 6.38" W x 3.22" D x 1.08" H
(162 mm W x 82 mm D x 27 mm H)
41089-6WP 41089-6IP — 41089-6GP 41089-6EP
4-Port, 4.77" W x 3.21" D x 1.05" H
(121 mm W x 82 mm D x 27 mm H)
41089-4WP 41089-4IP — 41089-4GP 41089-4EP
Plenum
Rated
2-Port, 2.52" W x 2.22" D x 1.10" H
(64 mm W x 56 mm D x 28 mm H)
41089-2WP 41089-2IP 41089-2TP 41089-2GP 41089-2EP
1-Port, 1.42" W x 2.22" D x 1.10" H
(36 mm W x 56 mm D x 28 mm H)
41089-1WP 41089-1IP — 41089-1GP 41089-1EP
2-Port Extended Depth*,
2.5" W x 3.00" D x 1.22" H
(64 mm W x 76 mm D x 31 mm H)
4S089-2WP 4S089-2IP — — —
4-Port Extended Depth*,
5.6" W x 5.20" D x 1.22" H
(142 mm W x 132 mm D x 31 mm H)
4S089-4WP 4S089-4IP — — —
* For shielded connectors and large bend-radius cables.

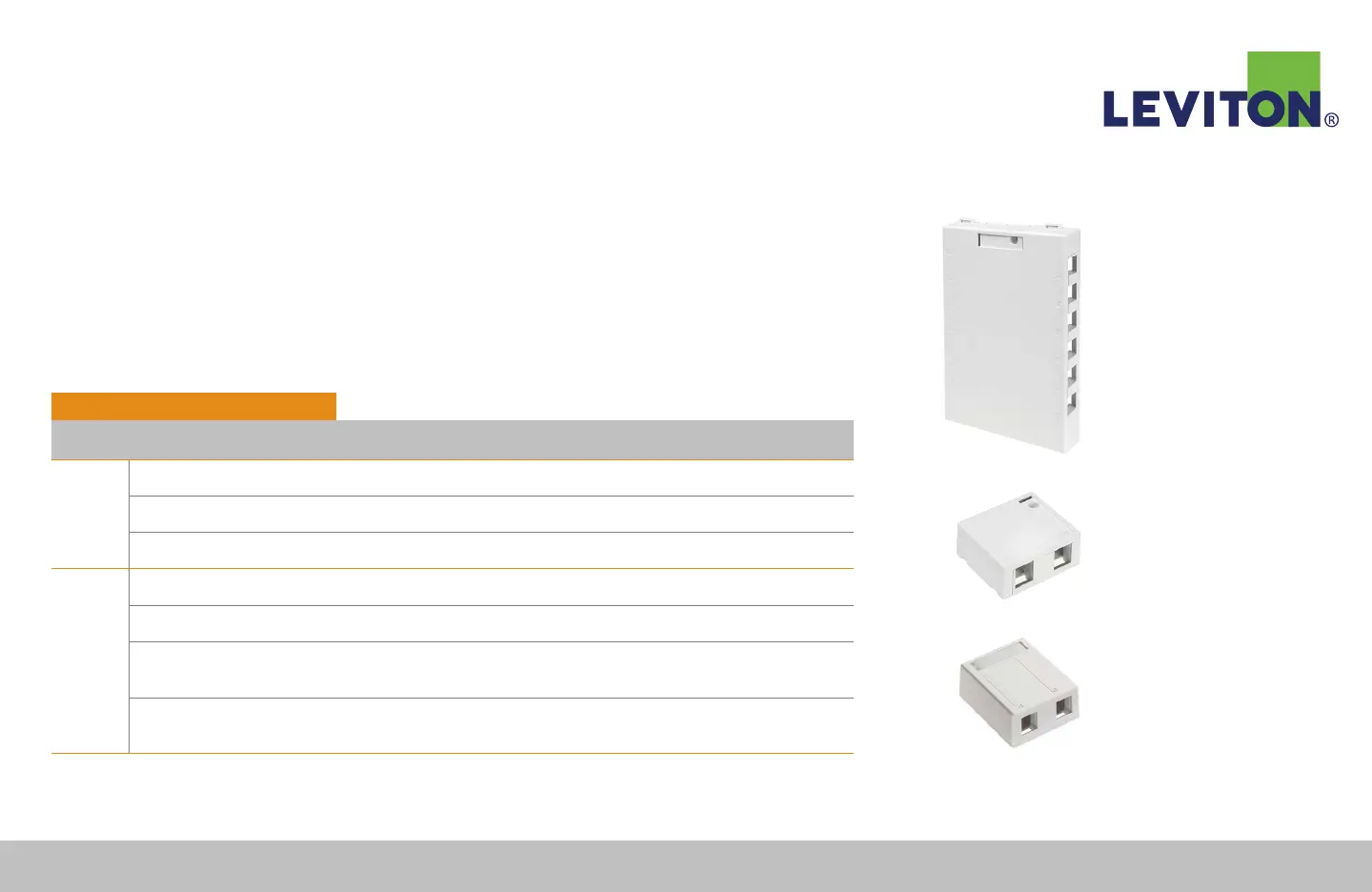

12-Port Standard
Surface-Mount Box
7.60" W x 5.02" D x 1.13" H
2-Port Plenum-Rated
Surface-Mount Box
2.52" W x 2.22" D x 1.10" H
2-Port Plenum-Rated
Surface-Mount Box Extended Depth
2.5" W x 3.00" D x 1.22" H
