Consolidation Points and Zone Enclosures
TIA standards allow an optional consolidation point (CP) within a
permanent link. A Cat 6A 110 block is Leviton’s standard CP solution.
It has a density that is ⅓ less than Cat 6 110 blocks (64-pair Cat 6A
capacity versus 96-pair for Cat 6 in the same footprint).
Another CP option is to use a patch panel and plug-jack cable
assembly. With this option, only an interconnect (one connection)
may be used in a patch panel CP application. A cross-connect
(two connections with a patch cord) may not be used.
Pathways and Spaces

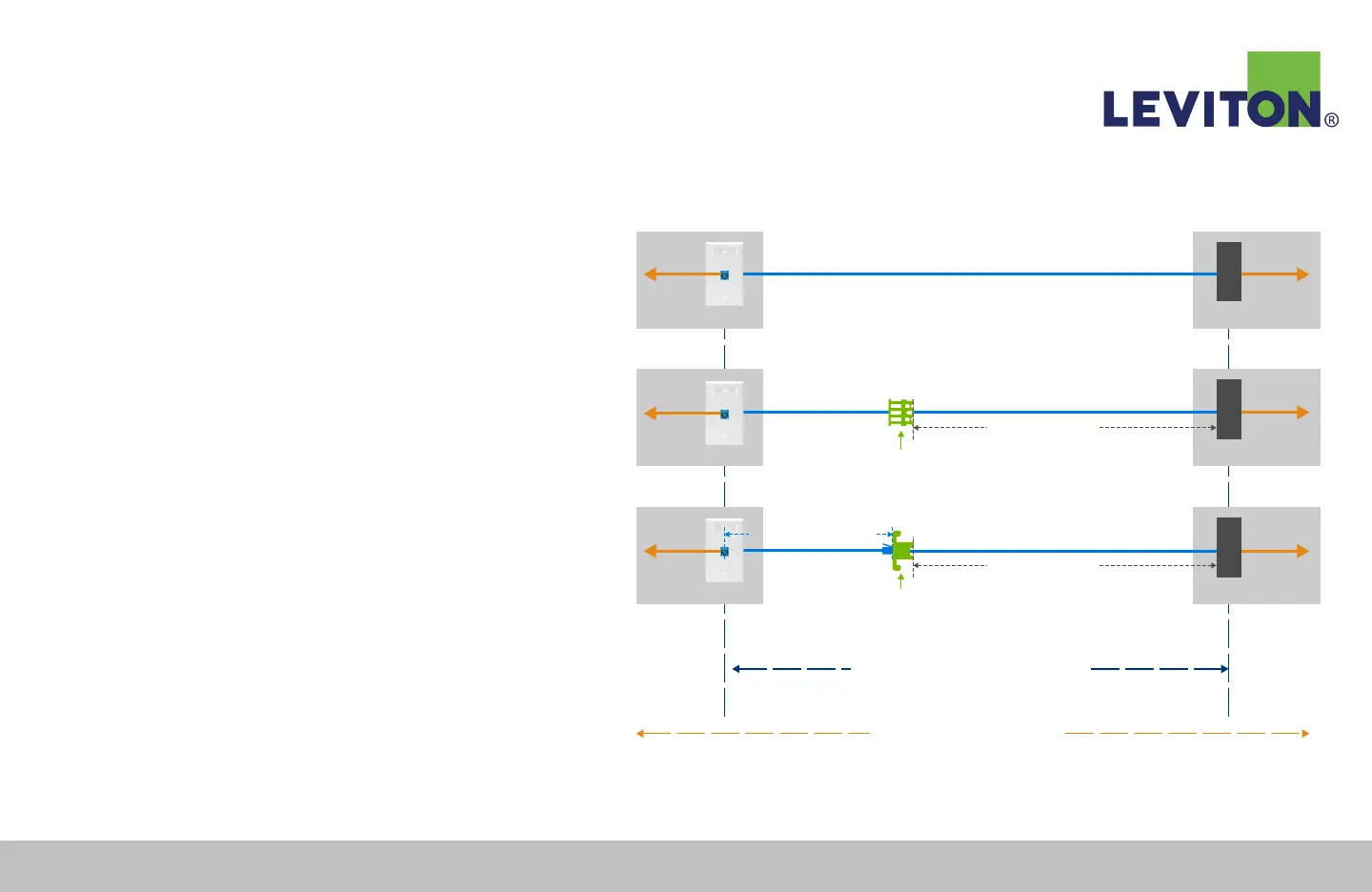

Permanent Link: 90 m (295.28 ft) max
 Horizontal Cable + Connectors +  Optional Consolidation Point
Channel: 100 m (328.1 ft) max

Permanent Link +

Patch Cords
Work
Area
Work
Area
Work
Area
Telecom
Room
Telecom
Room
Patch Panel
Plug to Jack Cable Assembly
Minimum of 15 m
110 Block
Telecom
Room
Minimum of 15 m
