User Manual for BPS-4H (High Temp.)
www.levitronix.com
PL-2009-03, Rev04, DCO# 21-101
12

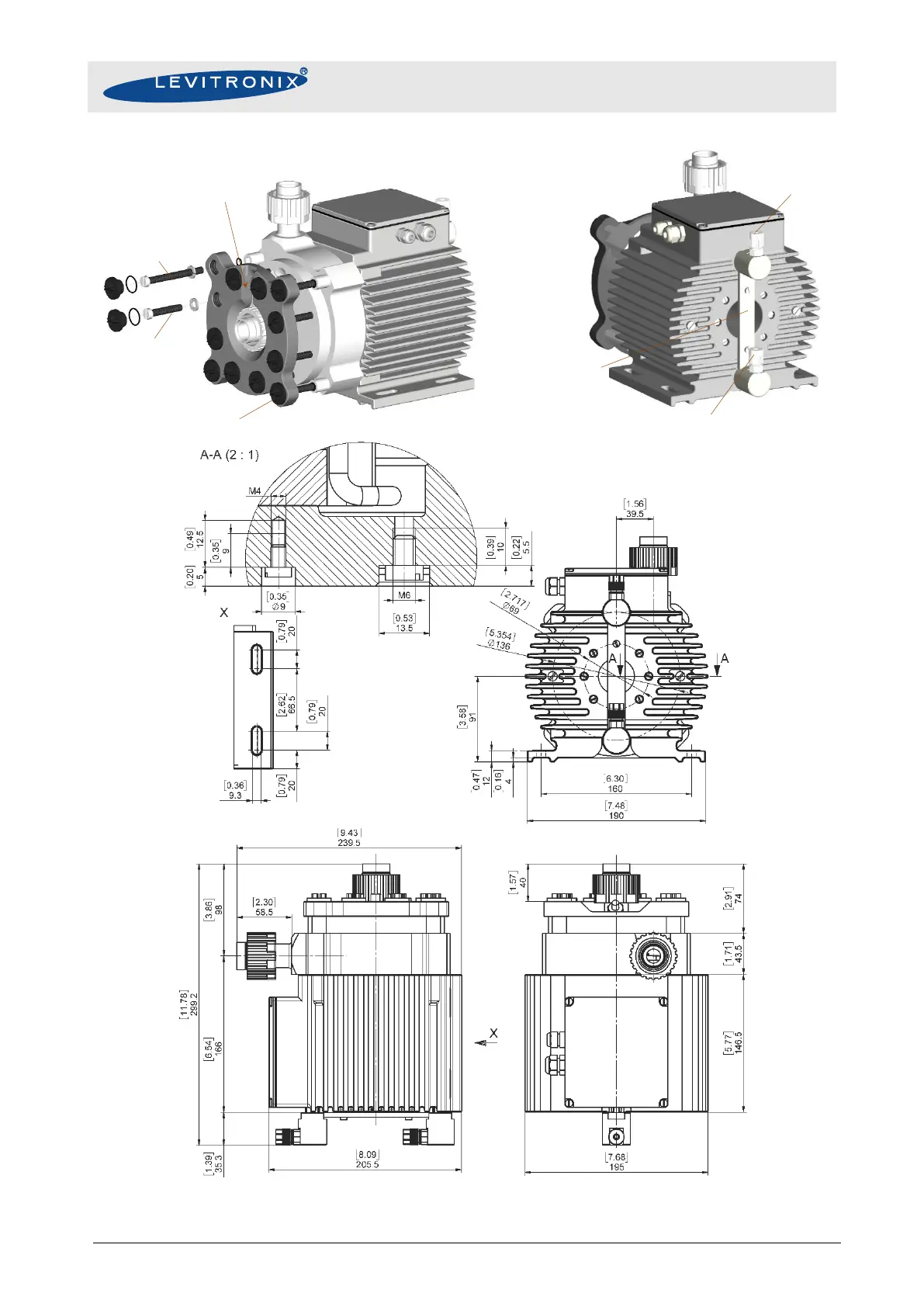

Figure 12: Basic dimensions (mm/inch) of BSM-4.11 motor with pump head CP-4.34/36
(Dimensions without motor housing coating of ~0.4 mm.)
Pump Head Screws
Stainless Steel + PTFE
8 pcs. M8x40 mm
Torque Spec.: 3.5 Nm
Inlet/Outlet Fittings

Suction Port

Cooling Circuit OUTLET

Pump/Motor Screws:
Stainless Steel
4 pcs. M8x80 mm
Torque Spec.: 17 Nm
Twisting protection to
prevent unscrewing of
cooling connections.
Cooling Circuit INLET

Screw Protection Cup:
12 pcs., PE-HD
Torque Spec.: 1.5 Nm
Pump head CP-4.36 is
without suction port.
