User Manual for BPS-4H (High Temp.)
www.levitronix.com
PL
-
2009
-03, Rev04,
DCO#
21
-
101
11
2.7

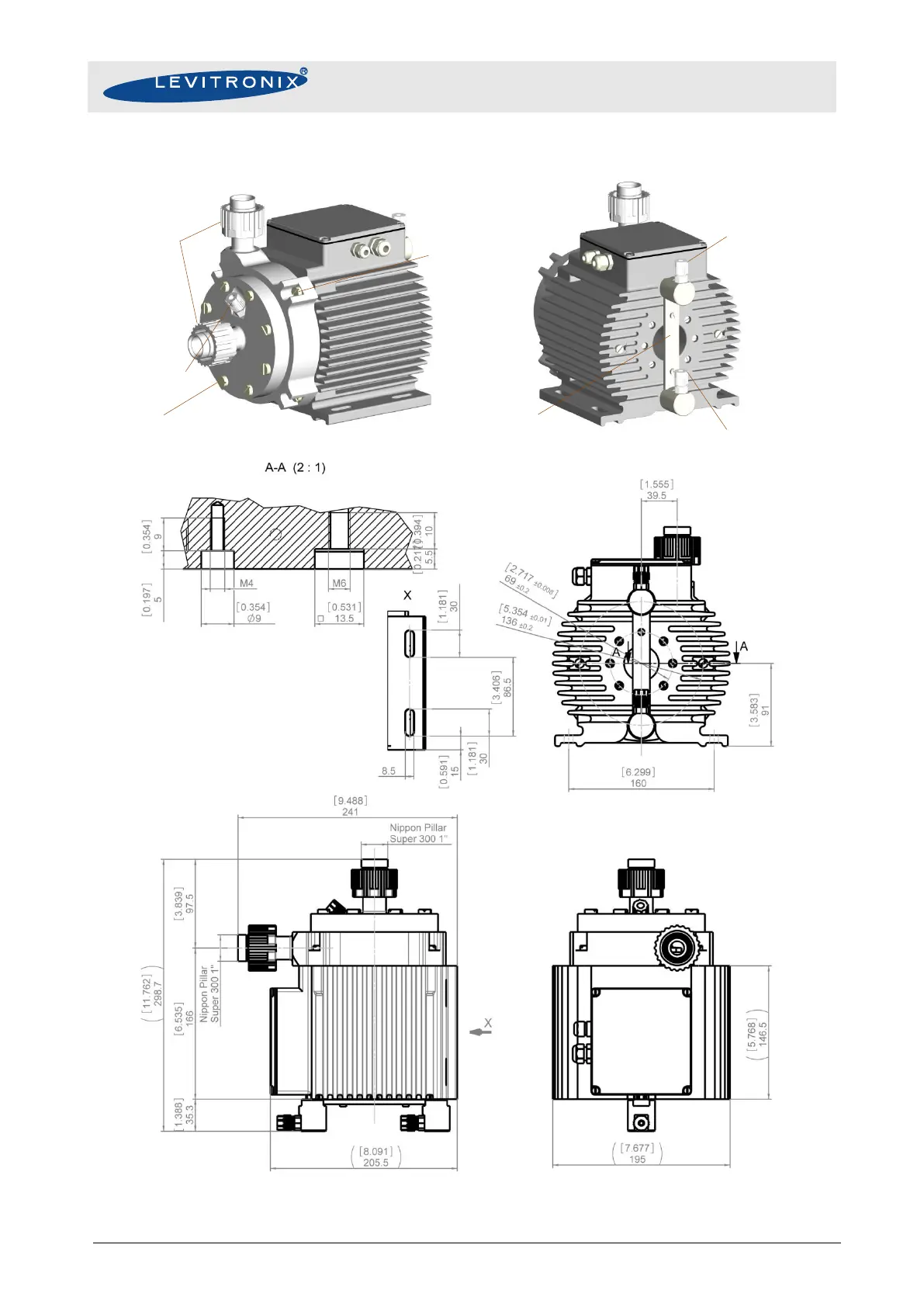

Basic Dime
nsions of Main
Components
Figure
11
:
Basic dimensions (mm
/inch) of BSM-4.
10 motor with
pump
head
CP
-
4.25
(D
imensions withou
t motor hou
sing coating of
~0.4
mm
.)
Pump Head Screws
Stainless Steel + PTFE
8 pcs. M8x40 mm
Torque Spec.: 1.2 Nm
Pump/Motor Screws
Stainless Steel + PTFE
4 pcs. M8x30 mm
Torque Spec.: 1.2 Nm
Twisting protection to
prevent unscrewing
of cooling connections.
Inlet/Outlet Fittings
Suction Port
Cooling Circuit OUTLET
Cooling Circuit INLET
10
12
Table of Contents
Table of Contents
2
Safety Precautions
3
Specifications
4
Specifications of Components
4
Standard System Configurations
6
System Configuration for Speed Control
6
System Configuration for Process (Pressure or Flow) Control
6
System Configuration for Pumping Acid/Gas Mixtures
7
General Environmental Conditions
7
System Electronics
8
Flow/Pressure Curves
9
Maximum Static Pressure for Pump Head
10
Basic Dimensions of Main Components
11
Engineering Information
14
Sealing and Material Concept
14
Power Consumption
16
Temperature Monitoring
16
Thermal Management
17
Motor Temperature
17
Controller Temperature
19
Hydraulic Circuit Design
20
Installation
21
Electrical Installation of the LC325P Controller
21
Overview
21
Installation Instructions
22
Electrical Installation of the PLC-A PLC-Interface Module
24
Overview
24
Installation Instructions
25
Mechanical Installation of the Pump Head with Motor
26
Mechanical Installation of the LC325P Controller
26
Mechanical Installation of Adaptor Cables
27
Operation
28
Overview of Main Operation Modes
28
System Operation with the LUI-A Levitronix User Interface
28
System Operation with PLC-A PLC Interface-Module
29
Inspection and Maintenance
31
Regular Check of Pump Head and Motor Screws
31
Replacement Interval of the Impeller
32
Impeller Replacement Procedure for Pump Head CP-4.25
32
Preparation
32
Instructions for Replacement
33
Impeller Replacement Procedure for Pump Head CP-4.34/36
34
Preparation
34
Troubleshooting
36
Troubleshooting Using the PLC-Interface-Module PLC-A
36
Troubleshooting Using the Levitronix User Interface LUI-A
36
Troubleshooting Using Controller Leds
36
Troubleshooting with Service Software
36
Technical Support
37
Appendix
38
Regulatory Status
38
CE Marking
38
UL Safety Marking
38
Disposal of Equipment - WEEE Directive 2012/19/EU
38
Symbols and Signal Words
39
