2.5 Flow/Pressure Curves

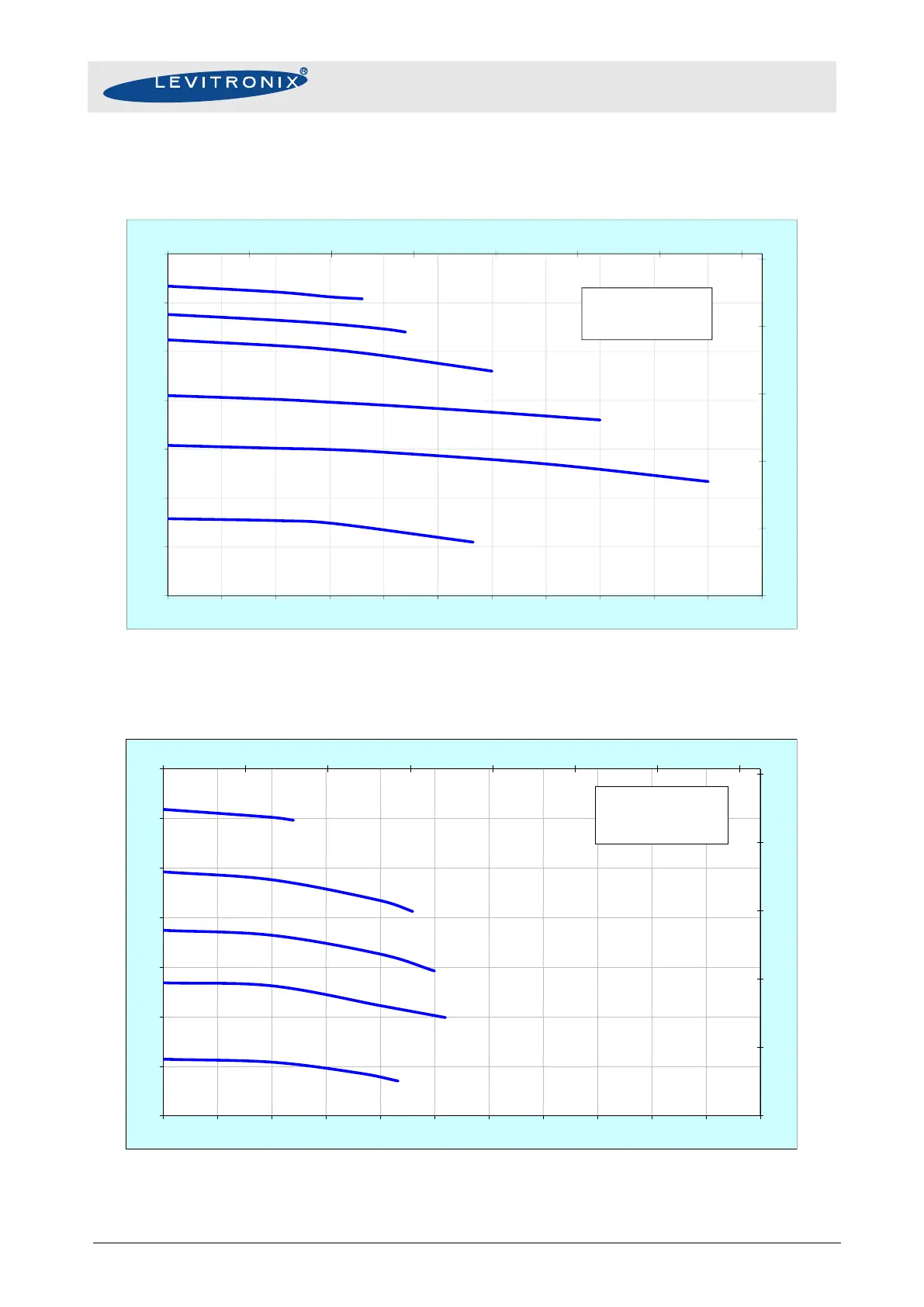

Figure 7: Pressure/flow rate chart for sulfuric acid (96%) at 150°C
(Typical curves measured with pump head CP-4.25. Data for 180°C available on request.)
Figure 8: Pressure/flow rate chart for pure sulfuric acid (96%) at 40°C
(Typical curves measured with pump head CP-4.25.)
0
10
20
30
40
50
0 2 4 6 8 10 12 14
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
0 5 10 15 20 25 30 35 40 45 50 55
[psi]
[gallons/min]
[bar]
[liters/min]
Specific gravity = 1.8 g/cm
3
Viscosity = ~5 cP
Liquid Temp.: 150
0
C
Liquid: Sulfuric Acid 96%
3000 rpm
2000 rpm
4000 rpm
4500 rpm
3500 rpm
4200 rpm
0
10
20
30
40
50
0 2 4 6 8 10 12 14
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
0 5 10 15 20 25 30 35 40 45 50 55
[psi]
[gallons/min]
[bar]
[liters/min]
Specific gravity = 1.8 g/cm
3
Viscosity = ~25 cP
Liquid Temp.: 40 C
Liquid: Sulfuric Acid 96%
3000 rpm
2000 rpm
4000 rpm
4500 rpm
3500 rpm
