Levitronix BPS-4H Series User Manual

User Manual for BPS-4H (High Temp.)
www.levitronix.com
PL-2009-03, Rev04, DCO# 21-101
13
Cable
Jacket
Cable OD
Motor Sensor
Cable OD
Motor Power
Minimum Bending Radius
Permanent Installation
Minimum Bending Radius
Sometimes Moved
FEP
6.60 mm
8.40 mm
7x cable OD
15 x cable OD
PVC
7.20 mm
10.0 mm
6x cable OD
12 x cable OD
Table 6: Specifications for min. bending radius of motor and adaptor cables for BSM-4
Note: If not mentioned explicitly all the cables are not suited for constant dynamic bending and movement!

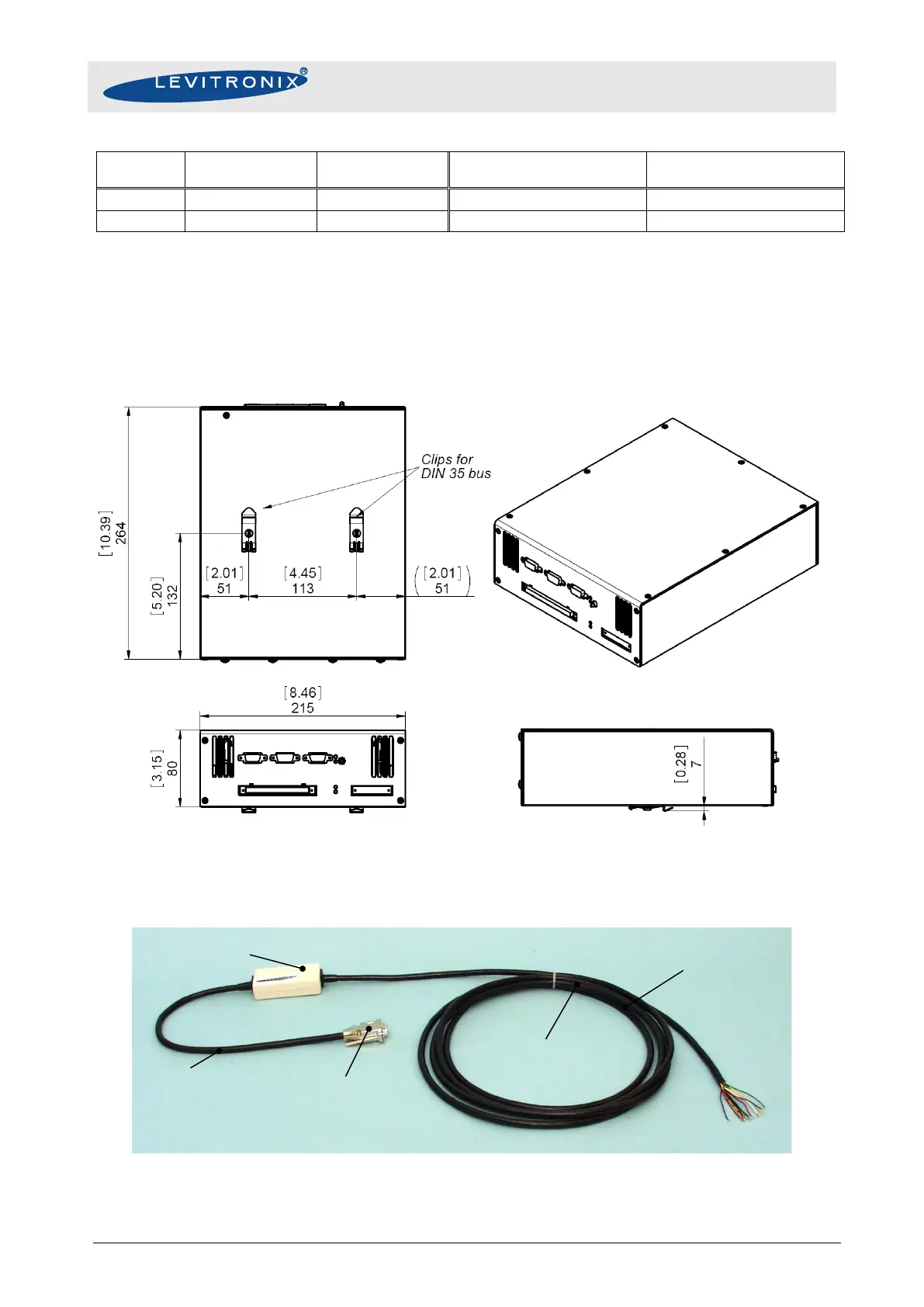

Figure 13: Basic dimensions (mm/inch) of the LC325P controller
Figure 14: Basic dimensions (mm/inch) of the PLC-A interface-module
Dimensions: 85  45  
Cable length:

Standard cable length:

Connector to the
user interface
of the controller LC325
Wires for connection
to the PLC-module of
the user system
