3.2 Power Consumption

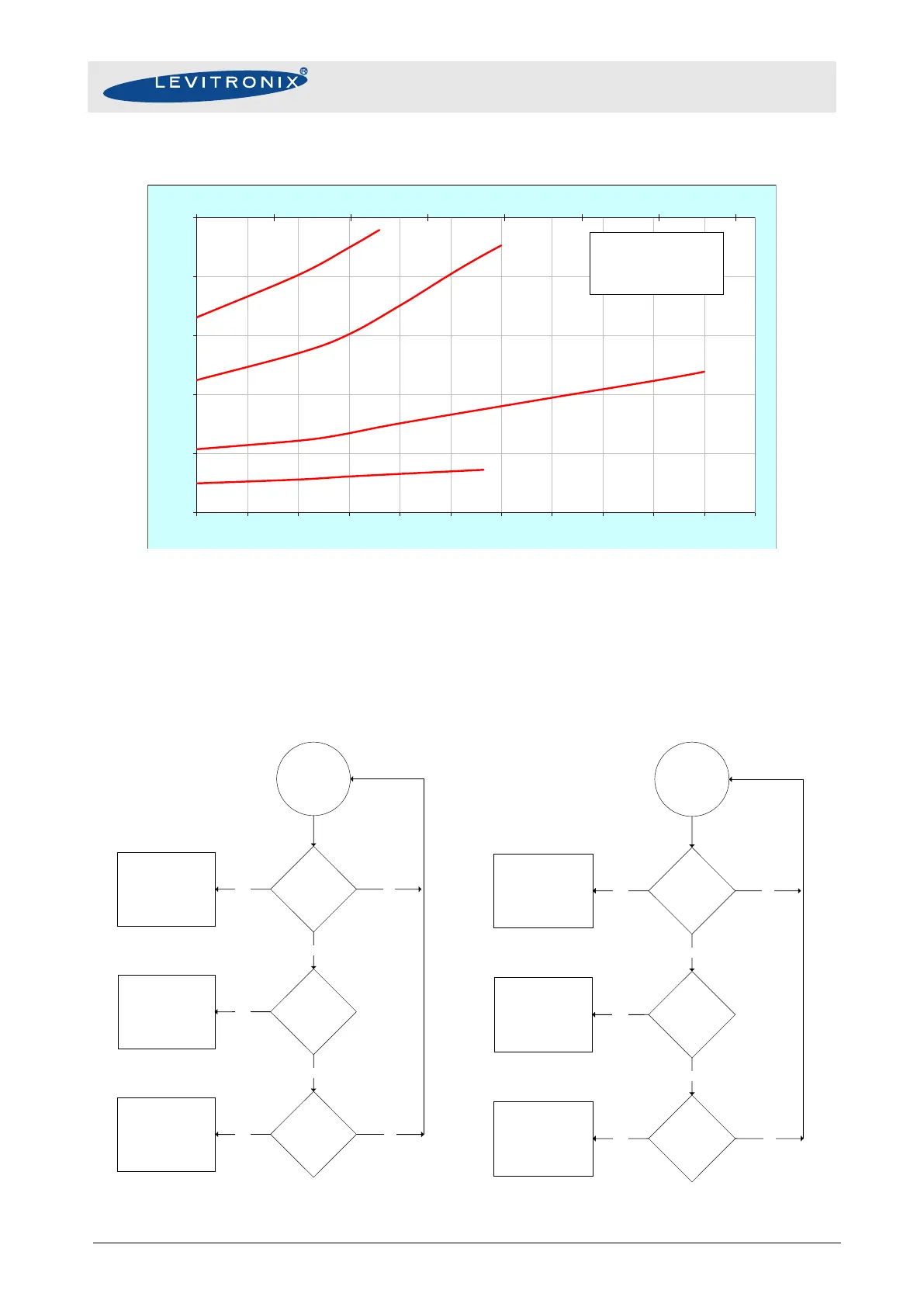

Figure 17: Power Consumption of LC325P Controller for pumping sulfuric acid (96%) at 150°C
(Typical curves measured with pump head CP-4.25)
3.3 Temperature Monitoring
To avoid overheating of the system, the controller and motor temperatures are monitored online with an internal
sensor. If the controller temperature exceeds 70°C (158°F) or the motor temperature 90°C (194°F) for a
duration of more than 10 minutes, the system goes into an error state and the pump stops. At 80°C (176°F)
controller temperature or 100°C (212°F) motor temperature, the system stops immediately.
Start
Temperature
Monitoring
WARNING
YES
Temperature
> 70 °C ?
Temperature
> 80 °C ?
YES
YES
ERROR
Temperature
higher than 70 °C
for more than 10
minutes?
NO
ERROR
YES
NO
NO
Start
Temperature
Monitoring
WARNING
YES
Temperature
> 90 °C ?
Temperature
> 100 °C ?
YES
YES
ERROR
Temperature
higher than 90 °C
for more than 10
minutes?
NO
ERROR
YES
NO
NO
Figure 18: Controller temperature monitoring
Figure 19: Motor temperature monitoring
0 2 4 6 8 10 12 14
0
200
400
600
800
1000
0 5 10 15 20 25 30 35 40 45 50 55
[gallons/min]
[Watts]
[liters/min]
Specific gravity = 1.8 g/cm
3
Viscosity = ~ 5 cP
Ambient Temp. : 25 C
Liquid: Sulfuric Acid (96%)
3000 rpm
4000 rpm
4500 rpm
2000 rpm
