User Manual for BPS-4H (High Temp.)
www.levitronix.com
PL-2009-03, Rev04, DCO# 21-101
2.2.3 System Configuration for Pumping Acid/Gas Mixtures
When pumping hot acid/gas mixtures like SOM (H
2
SO
4
+ O
3
) or SPM (H
2
SO
4
+ H
2
O
2
) the risk of priming loss
by bubble collection in the pump head can be addressed with the setup illustrated in Figure 5.
Contact Levitronix
®
for more information on this operation mode.

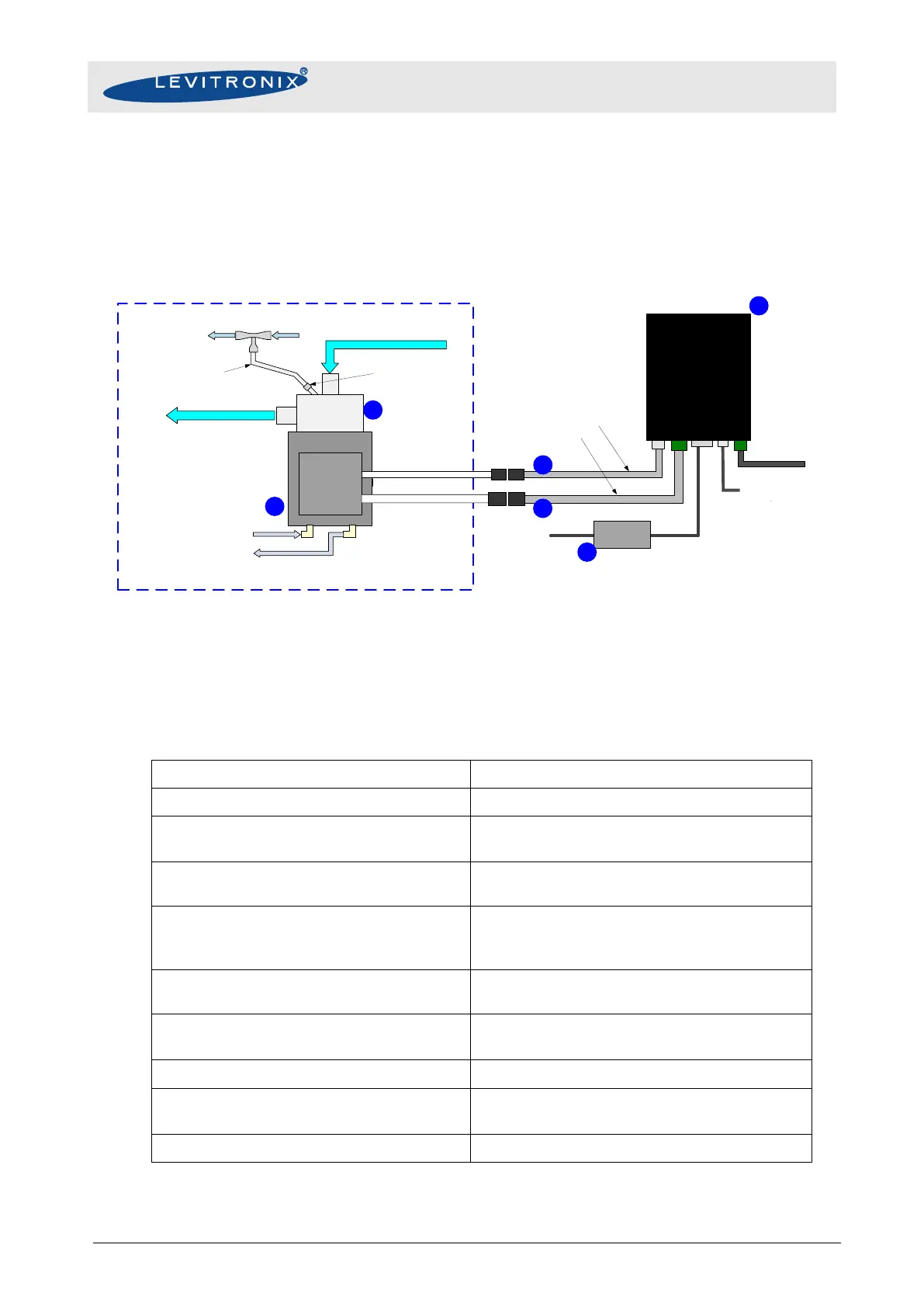

Figure 5: System configuration for pumping acid/gas mixtures like SOM or SPM
2.3 General Environmental Conditions
Operating ambient temperature
Controller: 0 to 40°C
Motor and Pump Head: 0 to 60°C
Storage ambient temperature
(Extremes for transportation)
Operating relative humidity range
Maximum relative humidity 95 percent for
temperature up to 31°C, decreasing linearly to
50 percent relative humidity at 40°C
Storage relative humidity range
(Extremes for transportation)
15 – 95% (non-condensing)
Normal storage conditions
Ambient temp.: 20 to 30°C
Relative humidity: 50% (non-condensing)
Mains supply fluctuations
Transient over-voltages typically present
on the mains supply
UL overvoltage category II
Surge immunity according to EN 61000-4-5
Table 5: Environmental conditions for BPS-4 pump system
Note 1: Contact Levitronx Technical Department (see Section 8) for Outdoor usage.
Controller
Chemical Resistance and IP67 Space
Pump Head
Motor
Fluid In
Cooling Fluid Out
Motor Sensor Cable
Motor Power Cable
RS232
- Service
- Firmware Update
- Configuration etc.
Adaptor/Extension
Cable for Sensors
Adaptor/Extension
Cable for Power
AC 200-240 V
PLC Module
Fluid Out
Cooling Fluid In
Suction Port
(Suction Pressure)
Aspirator
Air In (CDA or N2)Air Out
Aspirator line for keeping
priming of pump by removing
bubbles/gas from the critical
priming zone.
To Next Page
