3 Engineering Information
3.1 IP Rating
The console is tested to meet IP65.
Note: Units older than 2018/19 have IP40. These older units can be identified by having only 2 pressure
inputs (instead of 3 pressure inputs) on the connector back plane.
3.2 Temperature Monitoring
To avoid overheating of the system, the console’s motherboard processor reduces its clock frequency at 85°C
and stops the system at 100°C. However, under normal operating conditions the console is far below these
temperatures.
4 Installation
4.1 Mechanical Installation
The console LCO-i100 is made for desktop operation on a horizontal surface or can be wall-mounted to an
appropriate vertical surface. For wall-mounting the four pre-assembled rubber stands on the bottom have to
be removed. The underlying four M4 threads can be used for the wall-mounting according to the specifications
in Table 9.
Table 9: Specification for wall-mounting

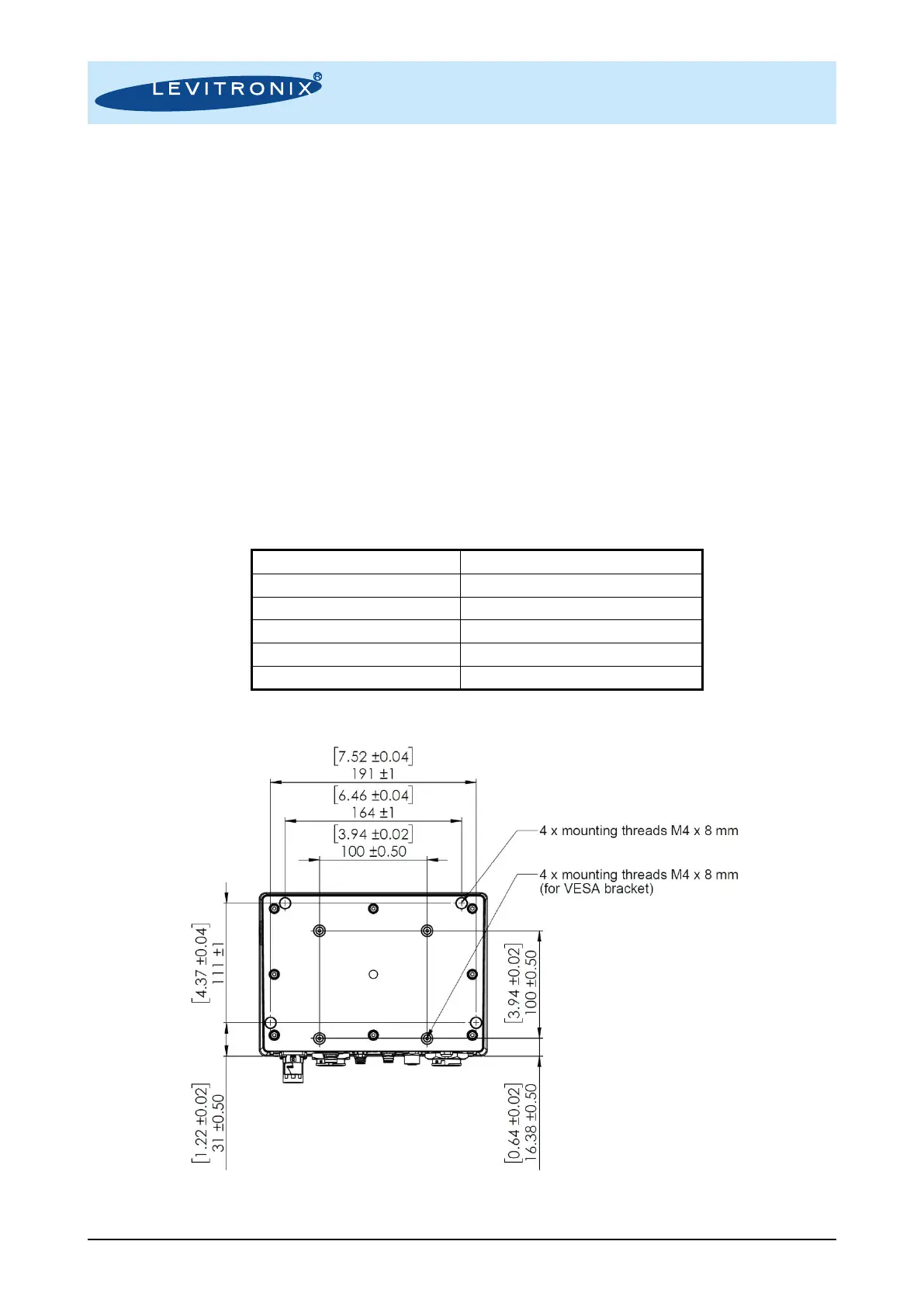

Figure 9: Bottom view of the console housing
Note 1: Not available on units older than 2018/19.
