2.2.2 Extended System Configuration
Figure 7 illustrates the extended capabilities of the console for advanced fluid handling applications. The
connection of up to 3 single-use pressure sensors enables pressure monitoring. A standard interface for a
temperature sensor facilitates temperature monitoring.

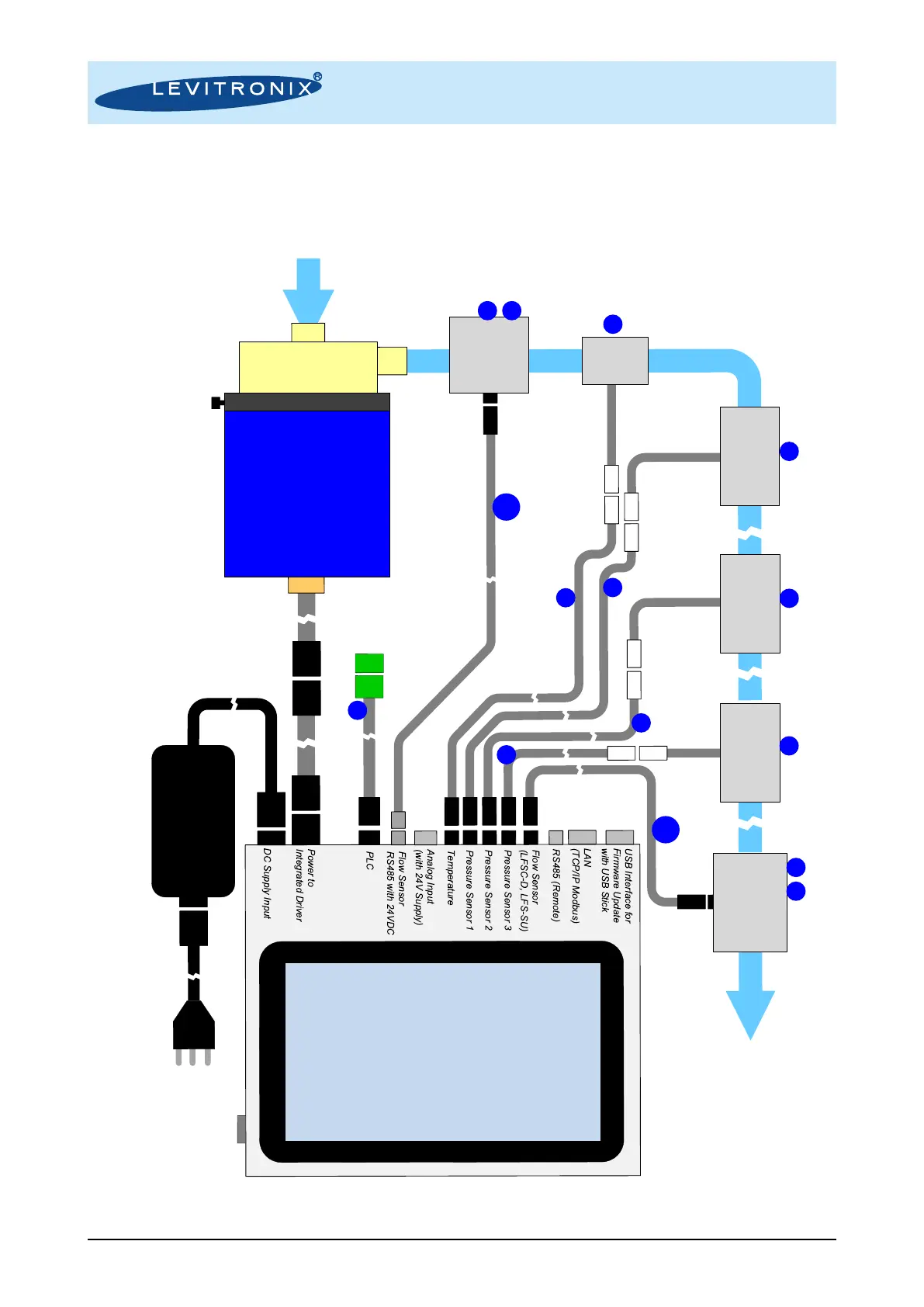

Figure 7: Extended system configuration of console for advanced fluid handling
Note 1: For PuraLev® i600 pump system the power supply and console connection concept shown in Figure 6 has to be used.
Single-Use
Pump Head
Fluid
Out
Pump Head Socket
Fluid
In
AC
Mains
Cable
AC Supply
Input
On-Off
Button
PuraLev
®
Console
Flow
Sensors
LFSC-iX
LFSC-iX.1
Inline
Temp.
Sensor
Pressure
Sensor 1
Pressure
Sensor 2
Pressure
Sensor 3
Flow
Sensors
LFSC-D
LFS-SU
AC/DC
Supply
Integrated Pump
Driver OEM Model
(with Connector)
Multi-Touch
Screen 7"
External
PLC
12
12
9
13
7
15
10
5
6
9
9
12
11b
11a
8
