Levitronix PuraLev Console LCO-i100 User Manual

User Manual for LCO-i100 Console
www.levitronix.com
PL-4066-00, Rev05, DCO# 24-013
This document and its content are confidential and the property of Levitronix
®
and shall not be reproduced, distributed,
disclosed or used for manufacturing or sale of Levitronix
®
products without the expressed written consent of Levitronix
®
.
7
Pos.
Component
Article Name
Part #
Characteristics
Special Feature / Description
11a
LEVIFLOW
®
Interconnect Cable
LFI-C.1-30 (3m)
190-10308
Cable Jacket Material
Main Purpose
PVC
Connection between LFSC-D and LFS-SU flow sensors and console.
11b
IP Cable Signal
4 Wires
ICS-3.1-30 (3m)
190-10447
Cable Jacket Material
Main Purpose
PUR
Connection between LFSC-iX flow sensors and console.
12
Pressure Sensor
Adaptor Cable
LPE-1.1-30 (3m)
190-10354
General Specifications
Main Purpose
Circular console connector, watertight on console side.
Connection of single-use pressure sensors to console.
13
Temperature Sensor
Adaptor Cable
LTE-1.1-30 (3m)
190-10353
General Specifications
Main Purpose
Circular console connector, watertight on console side.
Connect single-use temp. sensors to console. For barb sensors and dip
probe.
14
IP Adaptor Cable
Hybrid
ICH-1.2-30 (3m)
190-10329
General Specifications
Main Purpose
Circular console and driver side connector, watertight.
Extend cable of drivers.
15
IP Cable Signal
12 Wires
ICS-2.1-50 (5 m)
190-10347
Cable Material / Wires
Connection In / Out
Main Purpose
PVC jacket / 12x 0.14 mm
2
and shielding
Connector with screw type plug for open wire connection / Circular Hirose
type
General connection to PLC of console.
16a
Desktop AC/DC Power
Supply
VEC50US24 IC915
100-40019
Voltage Output / Input
Basic Dimensions
Certificat./ Standards
Note
24VDC, 50W / 90 – 264 VAC, 47-63 Hz
116 x 52 x 31 mm
IEC60950-1, EN60950-1, UL/cUL60950-1
Connector for direct connection to supply of console with cable length 1.2 m.
16b
Desktop AC/DC Power
Supply
GST160A24-R7B IC915
100-40020
Voltage Output / Input
Basic Dimensions
Safety Approvals
Note
24VDC, 160W / 85 – 264 VAC, 47-63 Hz
175 x 72 x 35 mm
UL60950-1, CSA C22.2, TUV EN60950-1
Connector for direct connection to supply of console with cable length 1.2 m.
16c
AC Mains Cables
(for power supply 16a/b)
AMC-1.1 (2m) / AMC-1.2 (2.5m)
AMC-1.3 / AMC-1.4 (2.5m)
AMC-1.5 (2.5m)
190-10331 / 32
190-10333 / 34
190-10335
Country
Country
Country
US, Canada / Germ., Denm., Norw., Finl., Belg., Netherland, Sweden, Austria
Japan / Switzerland
United Kingdom
17a
AC/DC Power Supply
(for Stand-Alone configuration)
DDP-600-US48-SC
100-40026
Voltage Output / Input
Basic Dimensions
Certifications, Standards
48 VDC (600 W) / 100 – 277 VAC
250 x 125 x 60 mm / 2 x 200 mm
CB, CSA/UL, IP65
17b
AC Mains Cables
(for power supply 17a)
AMC-2.1 / AMC-2.2
AMC-2.3 / AMC-2.4
AMC-2.5
190-10336 /37
190-10338 /39
190-10338 /40
Country
Country
Country
Cable Specifications
US, Canada / Germ., Denm., Norw., Finl., Belg., Netherl., Sweden, Austria
Japan / Switzerland
United Kingdom
Length = 3m, black color, watertight connector on console side
18
IP Y-Split Cable
ICY-4.1-02
190-10476
Specifications
Main Purpose
PVC cable jacket with PC split box, PUR sealing, circular type connectors.
Integrated DC/DC converter for 48 VDC to 24 VDC / 20 W.
Splits cable to connect power supply (3a) and console to driver IPD-600.
19
IP Cable Signal 4 Wires
ICS-1.5-30 (3 m)
190-10468
Specifications
Main Purpose
PVC jacket, connectors: circular type to circular type.
Fieldbus connection of driver from Y-split cable to console.
Table 7: Specification of standard cables and AC/DC desktop supplies for console.

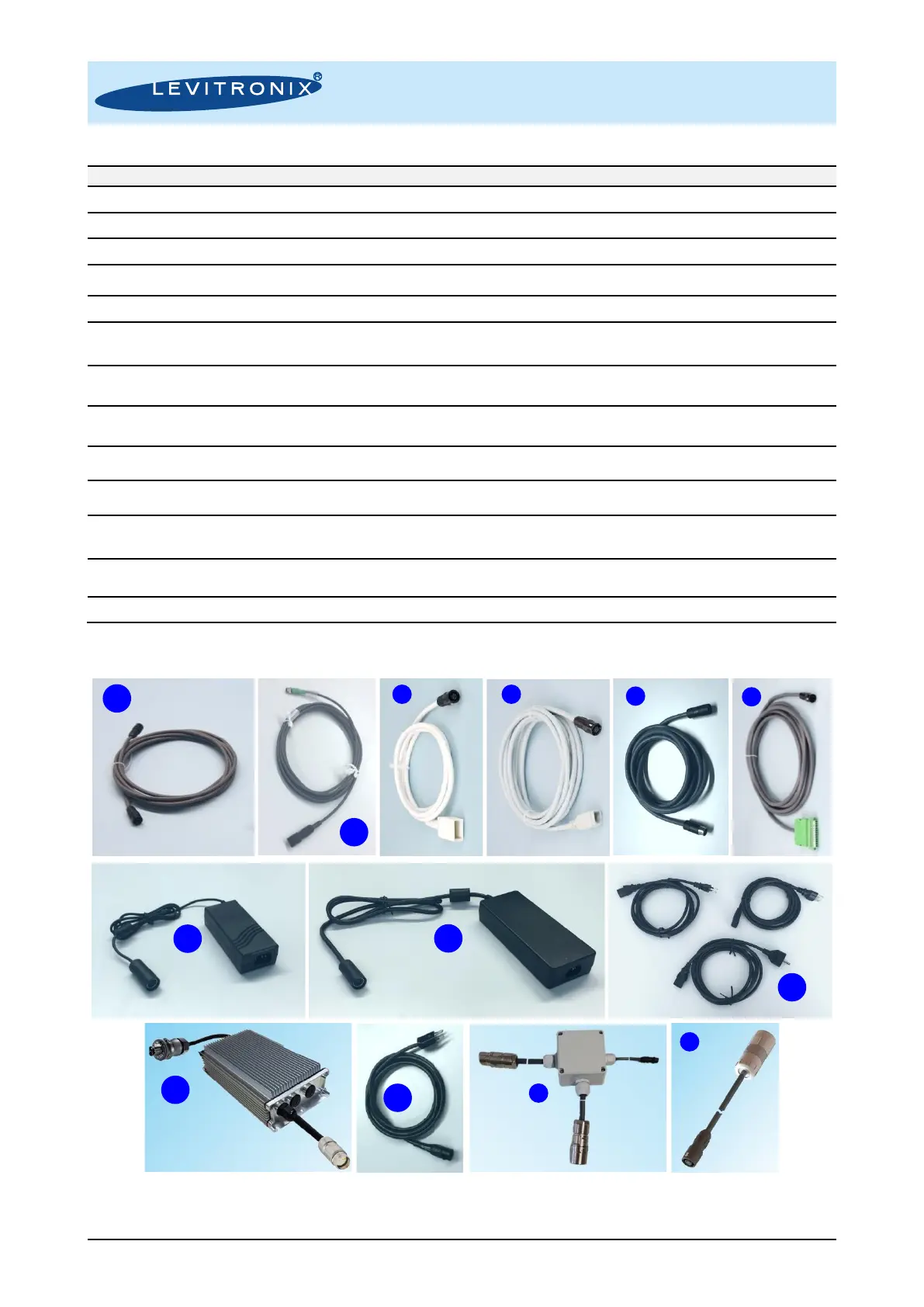

Figure 4: Accessories (Cables and AC/DC supplies).
12
13
16b
16c
16a
14
15
17a
17b
18
19
11a
11b
