Lexicon Lambda User Manual

Recording Using the Microphone/Line Input
20

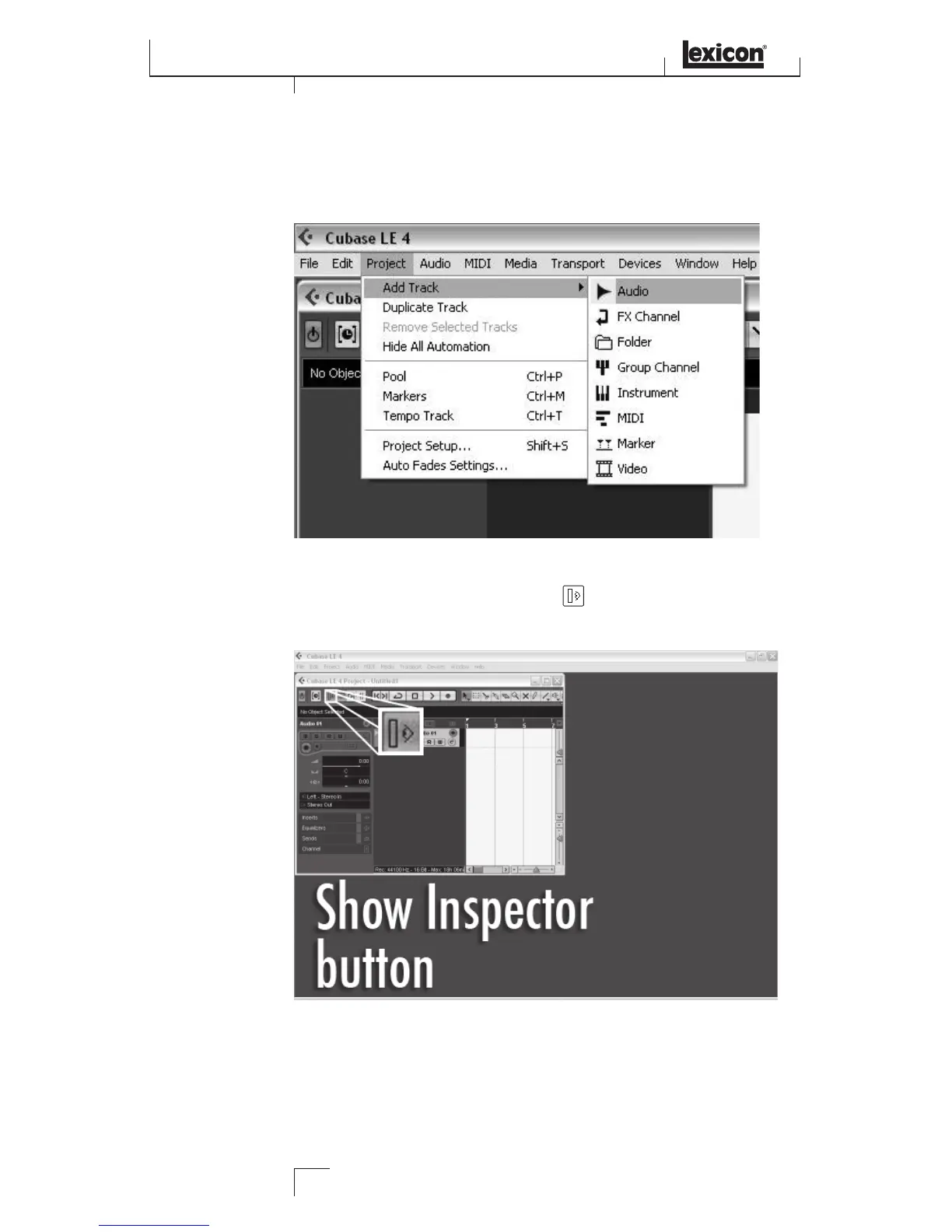

To set the input of the track to record:
1. Click the Project menu and select Add Track > Audio. When the Add Audio
Track dialog appears, make sure the Configuration is set to Mono and click OK.
2. Make sure the Show Inspector button , located in the upper left corner of
the screen, is lit.

Lexicon Lambda Specifications

General

Type	USB Audio Interface
Phantom Power	Yes
Sample Rate	44.1kHz, 48kHz
Bit Depth	24-bit
Mic Preamps	2
USB	USB 1.1
Inputs	4 (2 XLR/TRS combo, 2 line)
MIDI I/O	Yes (1 in, 1 out)
Outputs	2 x TRS
